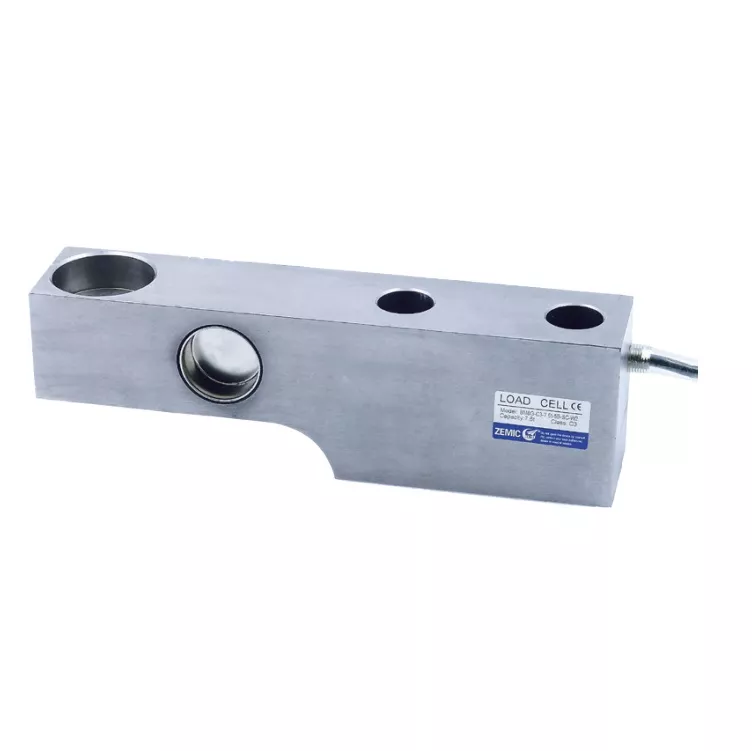

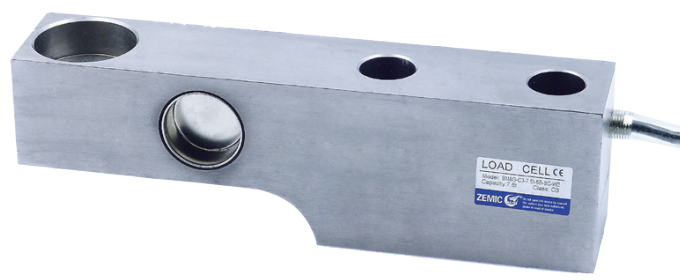

BM8G Shear Beam Load Cell Stainless Steel ZEMIC Load Cell

Product Description


Short Description:

◎Stainless steel IP68 shear beam load cell；

◎Hermetically sealed；

◎Robust and wide mounting surface；

◎Suitable for harsh enviroN.ment；

◎Current calibrated (sc-option)；

Available models：

Capacity Accuracy Full article description
500kg C3/C4 BM8G-C3/C4-500kg-5B-SC
1t C3/C4 BM8G-C3/C4-1t-5B-SC
2t C3/C4 BM8G-C3/C4-2t-5B-SC
5t C3 BM8G-C3-5t-5B-SC
7.5t C3 BM8G-C3-7.5t-5B-SC-W2
10t C3 BM8G-C3-10t-5B-SC

Specification：

Accuracy class OIML R60 C3 OIML R60 C4
Output sensitivity (= FS) mV/V 2.0 ± 0.002
Maximum capacity ( Emax ) t 0.5,1,2,5,7.5,10 0.5,1,2
Maximum number of load cell intervals (nLC) 3000 4000
Ratio of minimum LC verification interval Y = Emax / Vmin 10000 15000
Combined error %FS ±0.0230 ±0.0175
Minimum dead load 0f Emax 0%
Safe overload 0f Emax 150%
Uitimate overload of Emax 300%
Zero balance %FS ± 1.0
Excitation, recommended voltage V 5~15(DC)
Excitation maximum V 18(DC)
Input resistance Ω 350±3.5
Output resistance Ω 350±3.5
Insulation resistance MΩ ≥5000(50VDC)
Compensated temperature ℃ -10~+40
Operating temperature ℃ -35~+65
Storage temperature ℃ -40~+70
Element material Stainless steel
Recommended torque on fixation N.m M12:100  M20:450  M24:750

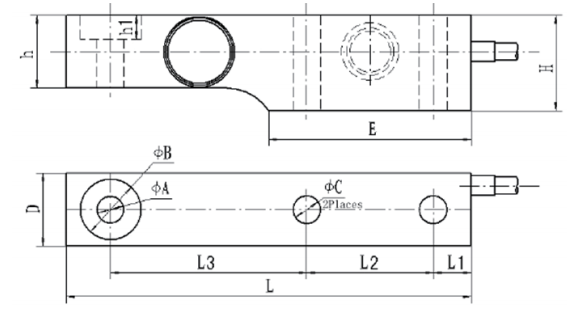

Dimensions in mm：


Capacity
Dimension		 0.5t-2t
(1k1b-5k1b)		 1t,2t

(2kib,5klb)

 5t7.5t-W2
(10K1b-15K1b)		 5t-W1 5t-W2 10t
A 17.48(0.69) / 25.5(1.00) 25.5(1.00) 25.5(1.00) 25.5(1.00)
B 30.3(1.19) / 41.4(1.63) 41.3(1.63) 41.4(1.63) 41.4(1.63)
C 13.9(0.55) / 22.23(0.88) 22(0.87) 22.23(0.88) 25(0.98)
D 36.5(1.44) / 47.36(1.86) 47.5(1.87) 47.37(1.86) 55(2.17)
E 101.6(4.00) / 117.5(4.63) 111(4.37) 117.5(4.63) 111(4.37)
L 203.2(8.00) / 234.95(9.25) 234.95(9.25) 234.95(9.25) 234.95(9.25)
L1 19.05(0.75) / 20.62(0.81) 20.62(0.81) 20.62(0.81) 20.62(0.81)
L2 63.5(2.50) / 66.7(2.63) 66.7(2.63) 66.7(2.63) 66.7(2.63)
L3 98.43(3.88) / 123.8(4.87) 123.8(4.87) 123.8(4.87) 123.8(4.87)
H 47.63(1.88) / 69.85(2.75) 50(1.97) 69.85(2.75) 69.85(2.75)
h 36.5(1.44) / 47.64(1.88) 47.6(1.87) 47.6(1.87) 58.6(2.31)
h1 11.8(0.46) 11.9(0.47) 15.75(0.62) 15.8(0.62) 15.75(0.62) 15.75(0.62)



Wiring：

◎Shielded, 4 conductor cable；

◎Cable Diameter: Φ5mm；

◎Standard cable length: 5m；

◎Shield not connected to element；
