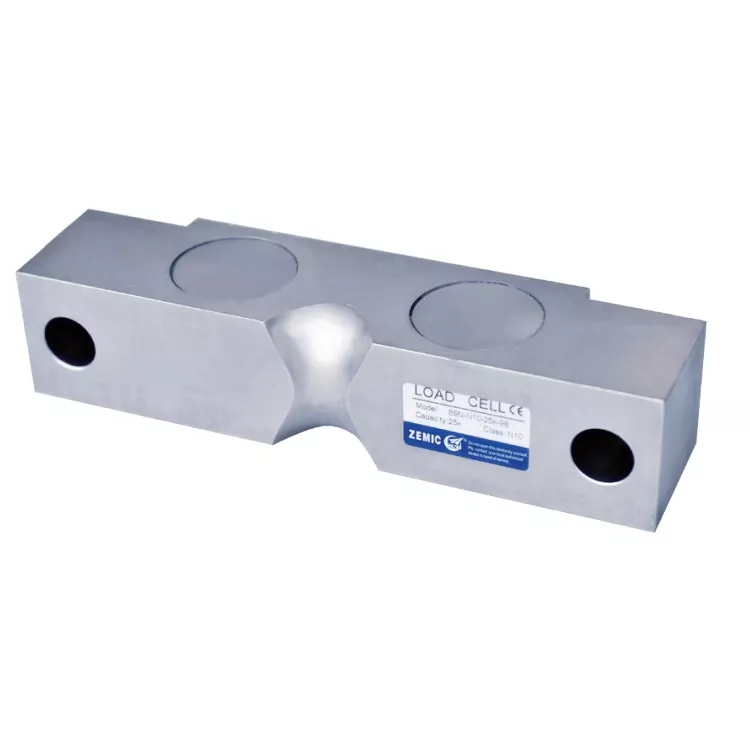

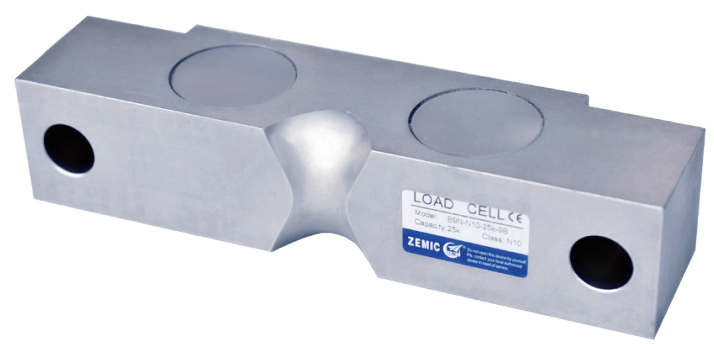

B9N Shear Beam Load Cell ZEMIC Load Cell

Product Description


Short Description:

◎Stainless steel construction, dual shear beam structure, adhesive sealed, compression loading available；

◎Ingress protection (according to EN 60529): IP67；

◎Suitable for electronic truck scales, hopper scales, track scales and other electronic weighing devices；

Available models：

Capacity Accuracy Full article description
xxklb C3 B9N-C3-xxK-9B

Specification：

Maximum capacity ( Emax ) klb 10/15/20/25/30/40/50/60/75/100/125
Accuracy class C3
Maximum number of verification intervals N.max 3000
Maximum number of load cell intervals ( nLC ) vmin Emax/10000
Combined error %FS ±0.020
Creep %FS/30min ±0.016
Temperature effect on sensitivity %FS/10℃ ±0.011
Temperature effect on zero %FS/10℃ ±0.015
Output sensitivity ( = FS ) mV/V 3.0±0.003
Input resistance Ω 700±7
Output resistance Ω 703±4
Insulation resistance MΩ ≥ 5000(50VDC)
Zero balance %FS ±1.0
Compensated temperature ℃ -10~+40
Operating temperature ℃ -35~+65
Excitation, recommended voltage V 5~12(DC)
Excitation maximum V 18(DC)
Safe overload of Emax 150
Ultimate overload of Emax 300

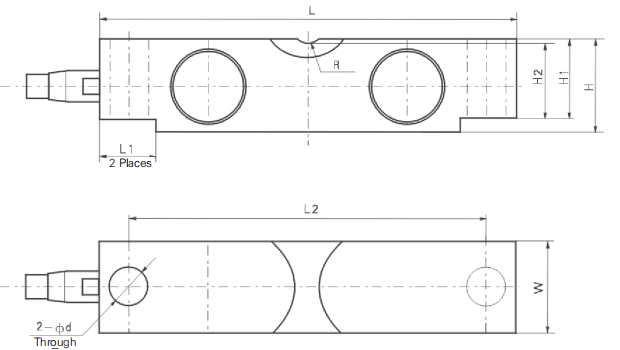

Dimensions in mm：


      Dimension
Capacity		 L L1 L2 H H1 H2 Φd W R
10~25klb 197 35 165 49.3 43.2 41.4 Φ17.3
(0.7)		 43 R19.1
(0.8)
(7.80) (1.40) (6.50) (1.90) (1.70) (1.60) (1.70)
30~40klb 260.4 49 216 62 53.3 50.8 Φ20.6
(0.8)		 49.3 R25.4
(1.0)
(10.30) (1.90) (8.50) (2.44) (2.10) (2.00) (1.90)
50~75klb 260.4 49 216 74.7 67.3 64.5 Φ26.9
(1.1)		 62 R25.4
(1.0)
(10.30) (1.90) (8.50) (2.90) (2.65) (2.50) (2.40)
100~125klb 387.4 79.5 324 98 87.1 83.8 Φ41.2
(1.6)		 73.7 R38.1
(1.5)
(15.30) (3.10) (12.80) (3.90) (3.40) (3.30) (2.90)



Wiring：

◎Adopt shielded, 4 conductor cable: Φ5mm；

◎Standard cable length: 9m；
