Technical Parameter
| Nonlinearity | ≤0.25% F.S. | Rated output | 2.0±0.004mV/V |
| Repeatability | ≤0.15%F.S. | Zero balance | ±2% F.S. |
| Operating temp range | -20~80°℃ | Compensated temp range | -10~40℃ |
| Temp effect on zero | ≤0.02%F.S/C | Insulation | ≥2000MΩ/100VDC |
| Recommended excitation | 5~10VDC | Ultimate load limit | 200%F.S. |
| Cable size | Ø5x5m | Protection class | IP63 |
| Cable connection | Ex+:Red; Ex-: Black; Sig+: Green; Sig-: White | ||

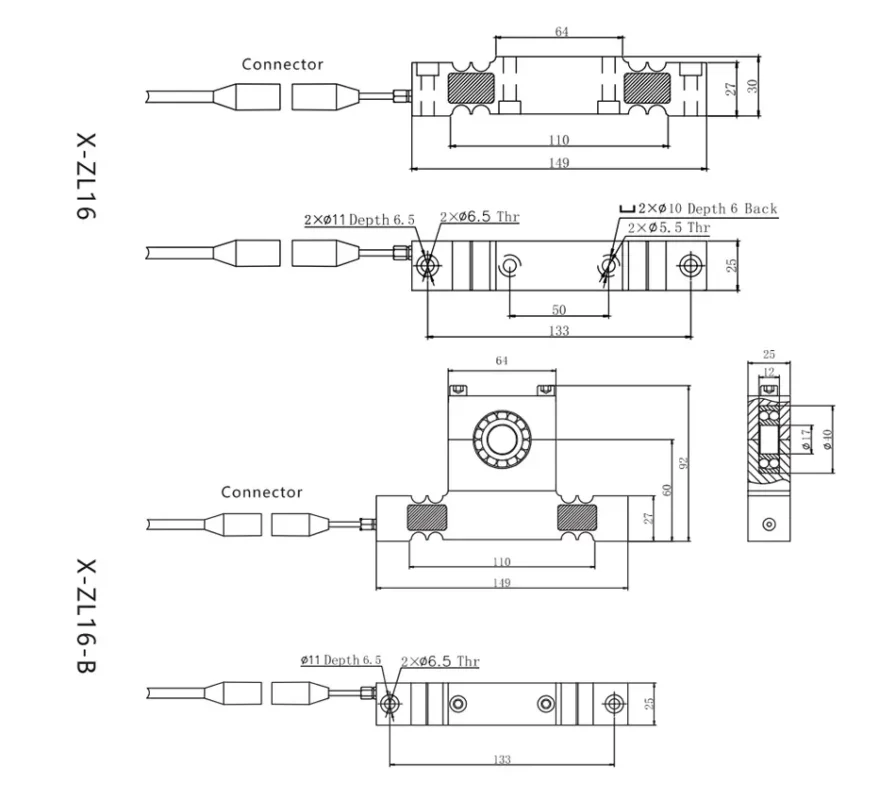

Dimension & Capacity
| Model no | Capacity(kg) |
| X-ZL16-5 | 5 |
| X-ZL16-15 | 15 |
| X-ZL16-25 | 25 |
| X-ZL16-50 | 50 |
| X-ZL16-100 | 100 |
| X-ZL16-B-5 | 5 |
| X-ZL16-B-15 | 15 |
| X-ZL16-B-25 | 25 |
| X-ZL16-B-50 | 50 |
| X-ZL16-B-100 | 100 |
Note: The rated load is only applicable to the value of a single sensor, and if installed on both sides, it is twice the above.
Application
It can be used to measure and control the tension of material during processing, such as paper, label, tape, battery electrode, high performance film and other narrow materials. The sensor’s detection signal is not affected by the position of the coiled material on the roller.
