Xjcsensor / X-ZL13 / Flange Tension Sensor

Feature
  • Compact structure, easy to install.
  • Can be installed directly inside or outside the machine frame.
  • Minor temperature drift, good non-linearity and repeatability.
  • Built-in new mechanical 10 times anti-overload protection.
  • Self-aligning bearing which can compensate installation error.
  • Standard M12*1 plug.
  • Materials: Aluminium alloy, Alloy steel.
Add to Wishlist
Share it:
Technical Parameter
Nonlinearity ≤0.3% F.S. Rated output 1.5±0.003mV/V
Repeatability ≤0.15%F.S. Zero balance ±2% F.S.
Operating temp range -20~80°℃ Compensated temp range -10~40℃
Temp effect on zero ≤0.02%F.S/C Insulation ≥2000MΩ/100VDC
Recommended excitation 5~10VDC Ultimate load limit 300%F.S.
Cable size Ø5x5m Protection class IP63
Cable connection Ex+:Red; Ex-: Black; Sig+:Green; Sig-: White

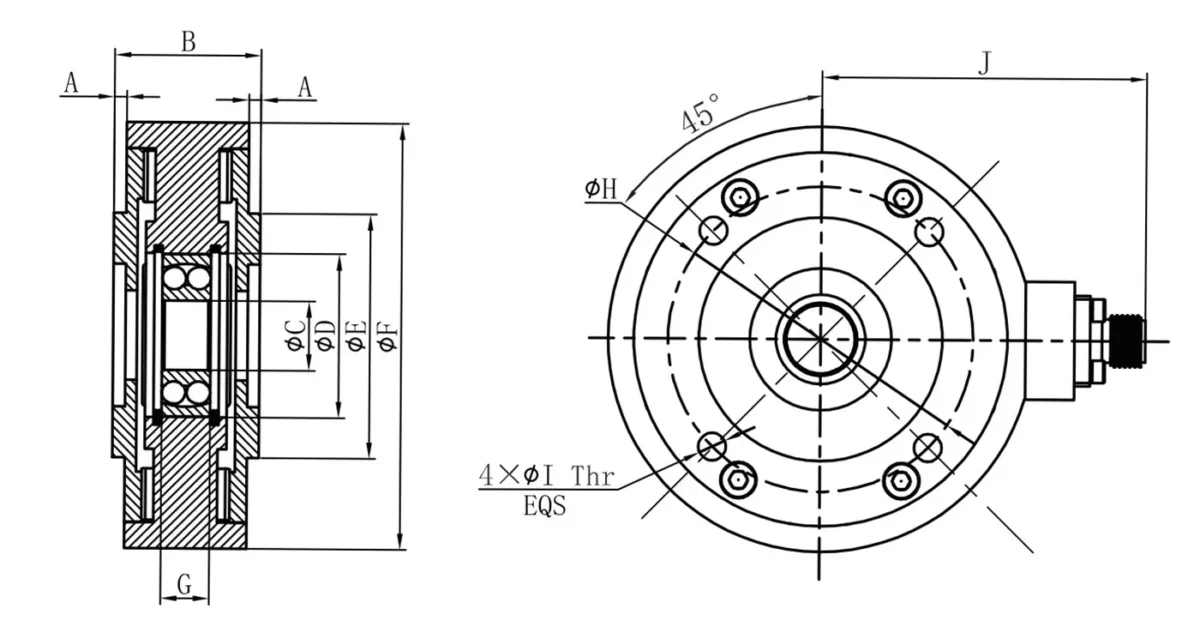

Dimension & Capacity

pic-3

Model no Capacity(kg) Dimension
A B C D E F G H 1 J
X-ZL13-5-17-6 5 3 36 17 40 60 105 16 75 6.5 80
X-ZL13-10-17-6 10 3 36 17 40 60 105 16 75 6.5 80
X-ZL13-15-17-6 15 3 36 17 40 60 105 16 75 6.5 80
X-ZL13-25-17-6 25 3 36 17 40 60 105 16 75 6.5 80
X-ZL13-50-17-6 50 3 36 17 40 60 105 16 75 6.5 80
X-ZL13-75-25-6 75 4 47.5 25 52 70 125 18 95 6.5 90
X-ZL13-100-25-6 100 4 47.5 25 52 70 125 18 95 6.5 90
X-ZL13-150-35-6 150 4 65 35 72 100 175 23 135 8.5 115
X-ZL13-300-35-6 300 4 65 35 72 100 175 23 135 8.5 115
X-ZL13-500-65-6 500 4 80 65 120 160 265 31 220 10.5 160
X-ZL13-1000-65-6 1000 4 80 65 120 160 265 31 220 10.5 160
X-ZL13-2000-65-6 2000 4 80 65 120 160 265 31 220 10.5 160
X-ZL13-3000-65-6 3000 4 80 65 120 160 265 31 220 10.5 160

Note: The rated load is only applicable to the value of a single sensor, and if installed on both sides, it is twice the above.

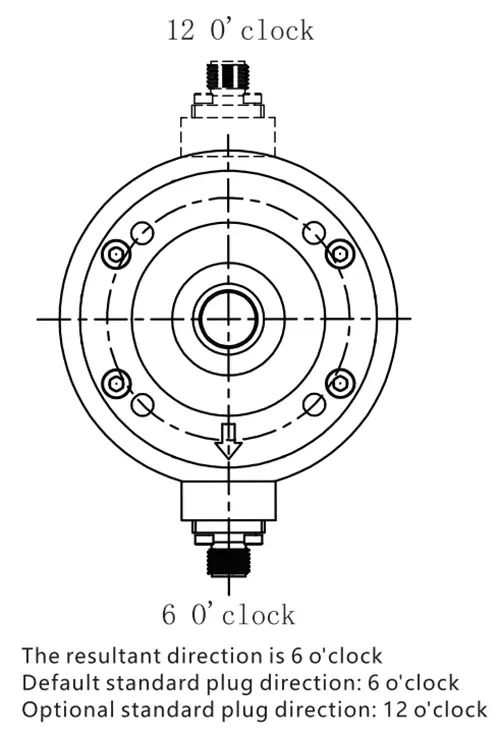

Plug Position

pic-2

Application

It can be used to measure and control the tension of materials during processing, such as paper, label tape, battery electrode, high performance film and other narrow materials. The sensor’s detection signal is not affected by the position of the coiled material on the roller.

Note: The rated load is only applicable to the value of a single sensor, and if installed on both sides, it is twice the above.
