Technical Parameter
| nonlinear | 0.3% F.S. | Output sensitivity | 1.5±10%mV/V |
| Repeatability | 0.15% F.S. | Zero point output | ±2% F.S. |
| range of working temperature | – 20 ~80 ºC | Temperature compensation range | – 10 ~40 ºC |
| Zero temperature drift | 0.02% F.S/°C | Insulation resistance | ≥2000MΩ/100VDC |
| Use electric pressure | 5-10VDC | extreme overload | ≥1000%F.S. |
| Cable wire size | ∅5x5m | Protection level | IP65 |
| Cable connection method | Ex + : red; Ex – : black,Sig + : green; Sig – : white; | ||

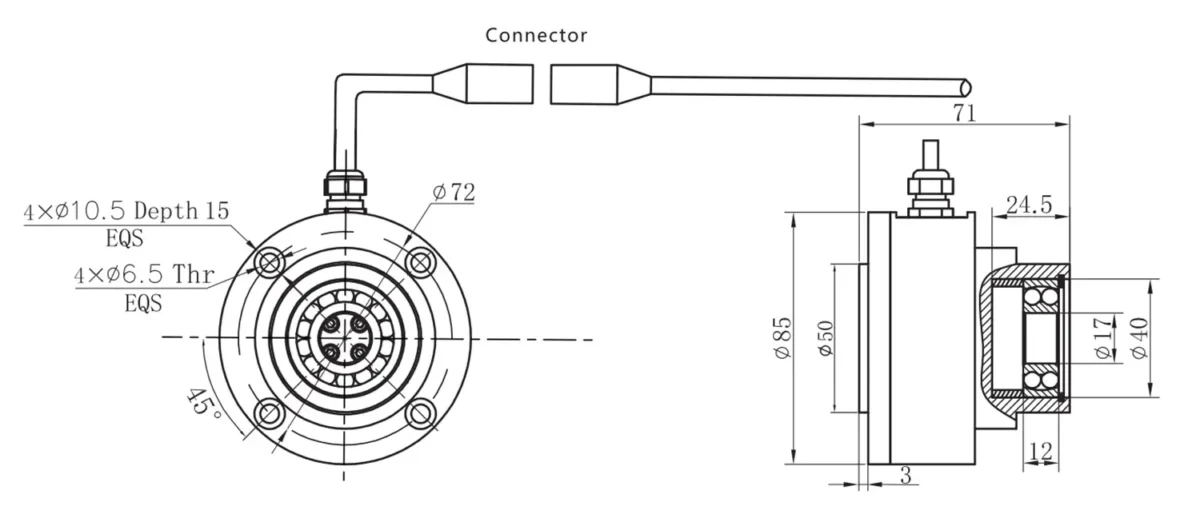

Dimension & Capacity
| Model no | Capacity(kg) |
| X-ZL12-A-2.5-12 | 2.5 |
| X-ZL12-A-5-12 | 5 |
| X-ZL12-A-10-12 | 10 |
| X-ZL12-A-15-12 | 15 |
| X-ZL12-A-25-12 | 25 |
| X-ZL12-A-50-12 | 50 |
Note: The rated load is only applicable to the value of a single sensor, and if installed on both sides, it is twice the above.

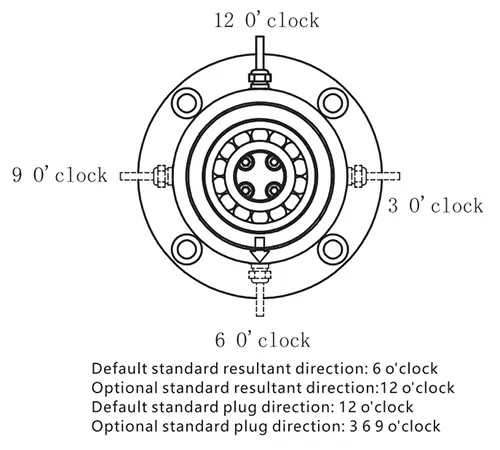

Plug Position
Application
It can be used to measure and control the tension of materials during processing, such as paper, label, tape, battery electrode, high performance film and other narrow materials.
The sensor’s detection signal is affected by the position of the collected material on the roller.
Note: The rated load is only applicable to the value of a single sensor, and if installed on both sides, it is twice the above.
