Technical Parameter
| Nonlinearity | ≤0.5% F.S. | Rated output | 1.0±0.1mV/V |
| Repeatability | ≤0.1%F.S. | Zero balance | ±2% F.S. |
| Operating temp range | -20~80°℃ | Compensated temp range | -10~40°℃ |
| Temp effect on zero | ≤0.02%F.S/℃ | Insulation | ≥2000MΩ/100VDC |
| Recommended excitation | 5~10VDC | Ultimate load limit | 300%F.S. |
| Cable size | Ø5x5m | Protection class | IP54 |
| Cable connection | Ex+:Red; Ex-: Black; Sig+: Green; Sig-:White | ||

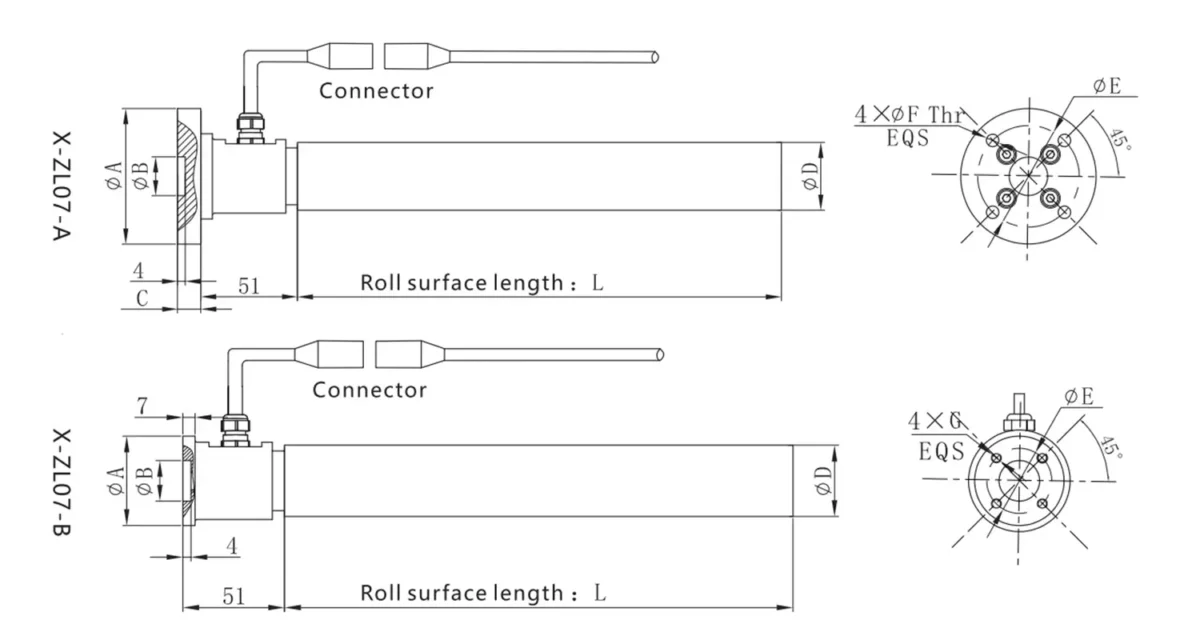

Dimension & Capacity
| Model no | Capacity(kg) | A | B | C | D | E | F | G | L |
| X-ZL07-A-□-35-□ | 5,10 | 70 | 20 | 12 | 35 | 52.5 | 6.5 | / | 100,150,200,250mmOptional |
| X-ZL07-A-□-50-□ | 10,20,30,50 | 70 | 20 | 12 | 50 | 52.5 | 6.5 | / | 200,250,300,350,400mm Optional |
| X-ZL07-A-□-75-□ | 10,20,30,50 | 108 | 30 | 20 | 75 | 86 | 11 | / | 300,350,400,450,500,550mm Optional |
| X-ZL07-B-□-35-□ | 2.5,5,10 | 41 | 20 | / | 35 | 32 | / | M5Depth 10 | 100,150,200,250mmOptional |
| X-ZL07-B-□-50-□ | 10,20,30,50 | 41 | 20 | / | 50 | 32 | / | M5Depth 10 | 200,250,300,350,400mm Optional |
| X-ZL07-B-□-75-□ | 10,20,30,50 | 64 | 30 | / | 75 | 45 | / | M6Depth11 | 300,350,400,450,500,550mm Optional |
Application
It can be used to measure and control tension of materials during processing. Such as paper, label tape, battery electrode, high performance film and other narrow materials. The sensor’s detection signal is not affected by the psition of the code material on the roller.
