Technical Parameter
| Nonlinearity | ≤0.2%F.S. | Rated output | 1.0±0.1mV/V |
| Repeatability | ≤0.1%F.S. | Zero balance | ±2% F.S. |
| Operating temp range | -20~80°℃ | Compensated temp range | -10~40°℃ |
| Temp effect on zero | ≤0.02%F.S/℃ | Insulation | ≥2000MΩ/100VDC |
| Recommended excitation | 5~10VDC | Ultimate load limit | 300%F.S. |
| Cable size | Ø5x5m | Protection class | IP54 |
| Cable connection | Ex+:Red; Ex-: Black; Sig+: Green; Sig-:White | ||

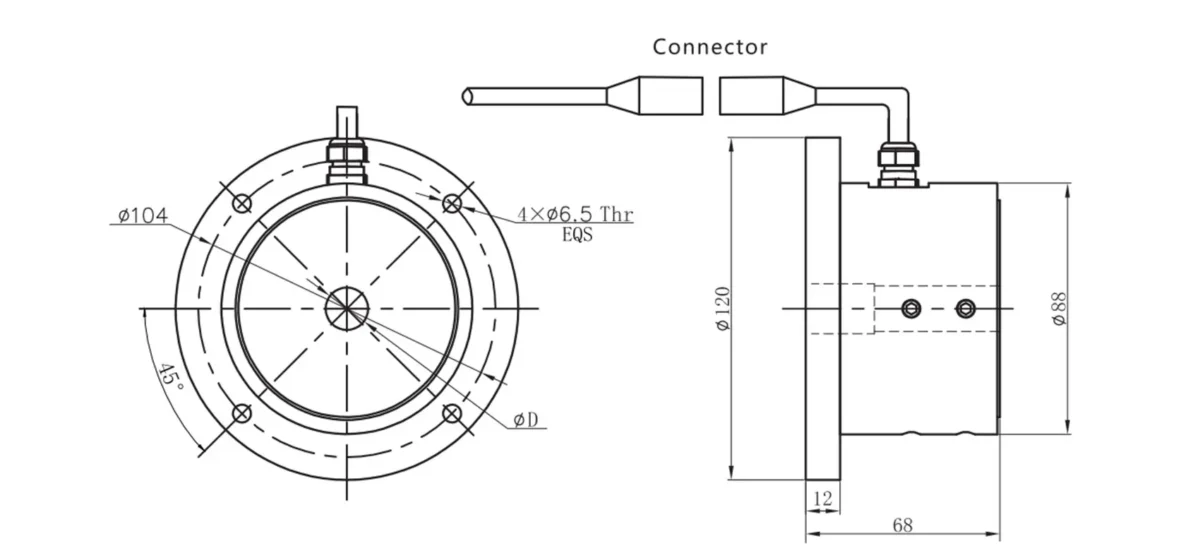

Dimension & Capacity
| Model no | Capacity (kg) | Dimension |
| D (+0.03
+0.01) |
||
| X-ZL05-B-2.5-15 | 2.5 | 15 |
| X-ZL05-B-5-15 | 5 | 15 |
| X-ZL05-B-10-25 | 10 | 25 |
| X-ZL05-B-15-25 | 15 | 25 |
| X-ZL05-B-25-25 | 25 | 25 |
| X-ZL05-B-50-25 | 50 | 25 |
Application
It can be used to measure and control the tension of materials during processing, such as paper, label tape, battery electrode, high performance limi and other narrow materials. The sensor’s detection signals is not affected by the position of the coiled material on the roller.
