GP09 Custom Load Cell Cheap Thin Load Cell
Features of Custom Load Cell Cheap Thin Load Cell
1. Customized design: Custom Load Cell Cheap Thin Load Cell can be designed according to the specific requirements of customers to ensure that their specific measurement needs are met.
2. Thin design: The product has a thin and compact appearance, suitable for installation in places with limited space.
3. High sensitivity: The product adopts advanced sensing technology and has high sensitivity and high precision measurement capability.
4. Stability: Custom Load Cell Cheap Thin Load Cell has high stability and reliability, can run stably for a long time, and maintains accuracy in harsh working environments.
5. Affordable price: Since Custom Load Cell Cheap Thin Load Cell is tailor-made, its cost is also relatively low, and the price is cheaper than standard sensors.
Product Paramenters
| Model Number: | GP09 |
| Output: | 1.0m V/V |
| Capacity: | 50KG |
| Material: | Aluminum alloy |
| Product name: | Loadcell |
| Rated output: | 1.0-0.2 MV/V |
| Output Resistance: | 1000 2 |

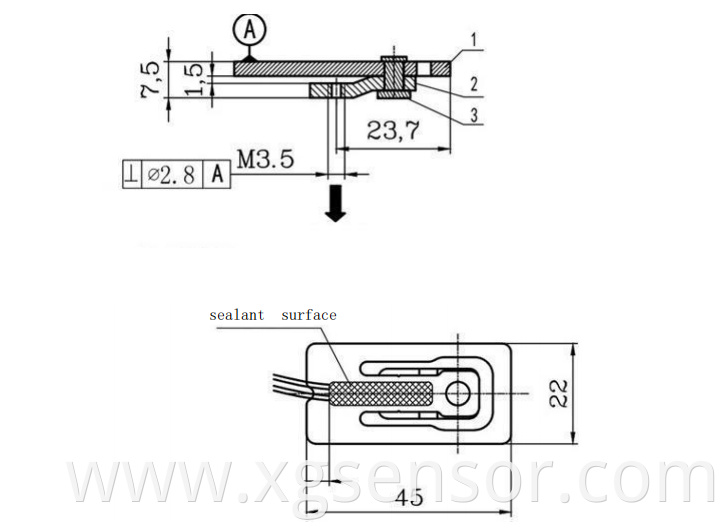

| Size: | 28*15*2.5mm |
| Input resistance: | 2000 20 |
| Insulation resistance: | 5000(50VDC) |
|
Specifications
|
||
|
Rated Output
|
mv/v
|
0.9±0.2
|
|
Non-linearity
|
%F.S
|
0.2%F.S
|
|
Hysteresis
|
%F.S
|
0.2
|
|
Repeatability
|
%F.S
|
0.2
|
|
Creep
|
%F.S/3min
|
0.2
|
|
Temp.effect on zero
|
%F.S/10℃
|
0.2%F.S
|
|
Temp.effect on span
|
%F.S/10℃
|
0.2%F.S
|
|
Zero balance
|
mv/v
|
±0.3
|
|
Input impedance
|
Ω
|
1000±6
|
|
Output impedance
|
Ω
|
1000±5
|
|
Insulation resistance
|
MΩ
|
≥5000（100VDC)
|
|
Recommended excitation voltage
|
VDC
|
3~10
|
|
Allowed excitation voltage
|
VDC
|
3~10
|
|
Compensated temp.Range
|
℃
|
-10℃~+40℃
|
|
Operating temp.Range
|
℃
|
0℃~+40℃
|
|
Safe overload
|
%F.S
|
120
|
|
Ultimate Overload
|
%F.S
|
150
|
|
Connection
|
Excitation:
|
|
|
Signal:
|
||
