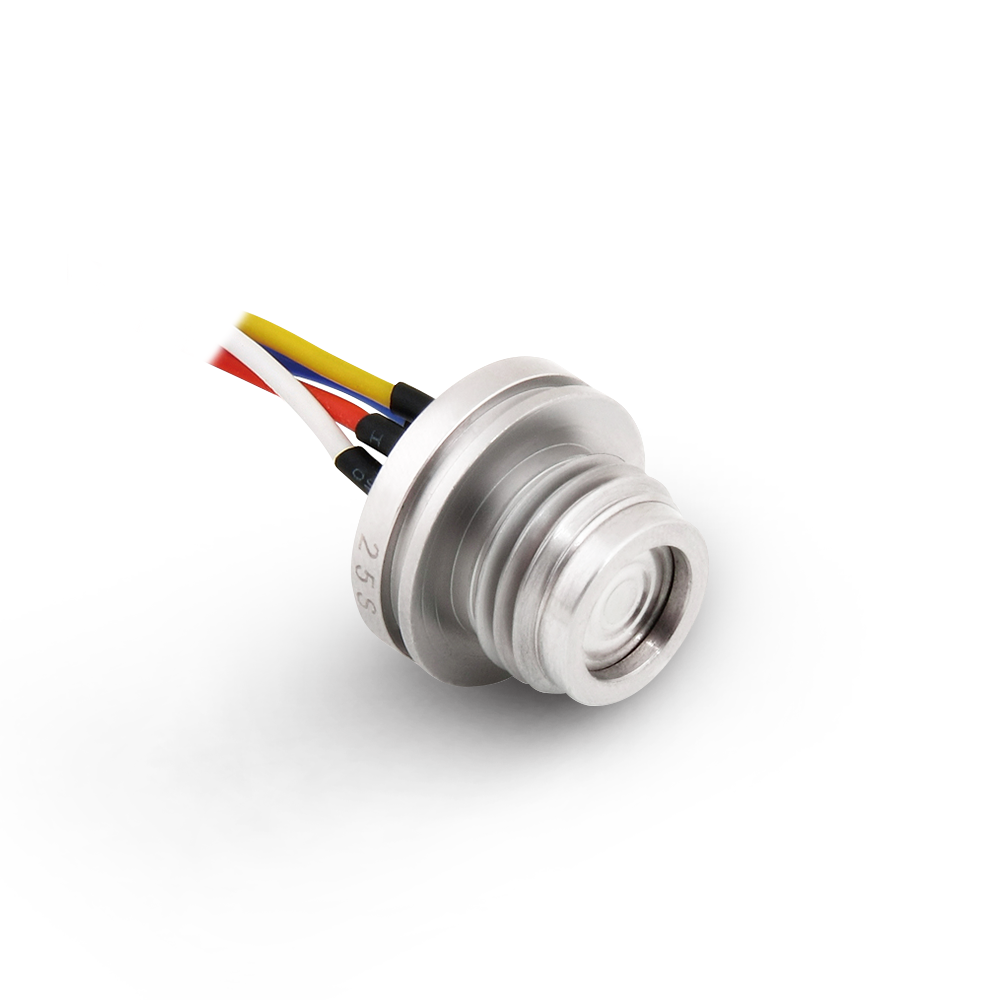

Pressure Sensor with Thread PC30
Product Parameters
| Pressure range | |
| Pressure range | 1MPa, 1.6MPa, 2.5MPa, 4MPa, 6MPa, 10MPa, 16MPa, 25MPa, 40MPa, 60MPa, 100MPa (bar and psi unit available) |
| Pressure reference | Absolute pressure | Sealed gauge pressure |
| Overpressure | 300%F.S.(≤70Kpa) | 200%F.S.(<25Mpa) | 150%F.S.(≥25Mpa) |
| Output signal | |
| Zero output | ±2mV |
| Span output | ≥60mV |
| Specification | |
| Accuracy (linearity, repeatability and hysteresis) | ±0.25%F.S. (Typical) |
| Excitation | 1.5mA (Typical) |
| Compensated temp. | -10ºC -70ºC |
| Operating temp. | -40ºC -125ºC |
| Storage temp. | -40ºC -125ºC |
| Zero temp. coefficient | 0.02%F.S./ºC(≥100kPa) | 0.04%F.S./ºC(<100kPa) |
| Span temp. coefficient | 0.02%F.S./ºC(≥100kPa) | 0.04%F.S./ºC(<100kPa) |
| Insulation resistance | >200Mohm/250VDC |
| Input impedance | 2kΩ-5kΩ |
| Long term stability | ≤0.2%F.S.S./year |
| Vibration | 20g (20-5000Hz) |
| Oil filling | Silicon oil |
| O-ring | NBR, Viton |
| Housing and diaphragm | Stainless steel 316L |
| Wire connection | 4 wire (typical) | 5 wire (available) 39×φ0.015, Silicon shielded, 200ºC bearing |
| Pin connection | Kovar pin (0.6um Gold platted) |
| Drawing |
1.5mA supply with temperature compensation
| Pin | Connection |
| 1 and 6 | Pending |
| 2 | Output+ |
| 3 | Excitation+ |
| 4 | Output- |
| 5 | Excitation- |
Without temperature compensation
| Pin | Connection |
| 1 and 6 | Excitation+ |
| 2 | Output+ |
| 3 | Excitation+ |
| 4 | Output- |
| 5 | Pending |
5V supply with temperature compensation
| Pin | Connection |
| 1 or 6 | Excitation+ |
| 2 | Output+ |
| 3 | Excitation+ |
| 4 | Output- |
| 5 | Pending |
