SENDIX Angular Displacement Sensor
Technical parameters
| Item | Specification |
|---|---|
| Shaft Diameter [mm] | 6 / 10 / 12 mm (solid), 12 / 20 / 25 / 28 mm (hollow) |
| Max Selectable Speed [rpm] | 9000 / 3000 |
| Operating Temperature | -40…+85°C |
| Protection Class | IP67 |
| Vibration Resistance | 1000 g; 6 ms |
| Shock Resistance | 100 g; 55–2000 Hz |
| Housing Material | Aluminum, Stainless Steel |
| Resolution | 1 – 65535 (16 bit) |
| Shaft Material | High-grade Stainless Steel |
| Power Supply | 5 VDC ±5% (line driver) / 10–30 VDC (push-pull) |
| Max Pulse Frequency | 300 kHz |
| Bus Output | Optional: SSI, Profibus-DP, CAN, CANopen, DeviceNet, Interbus |

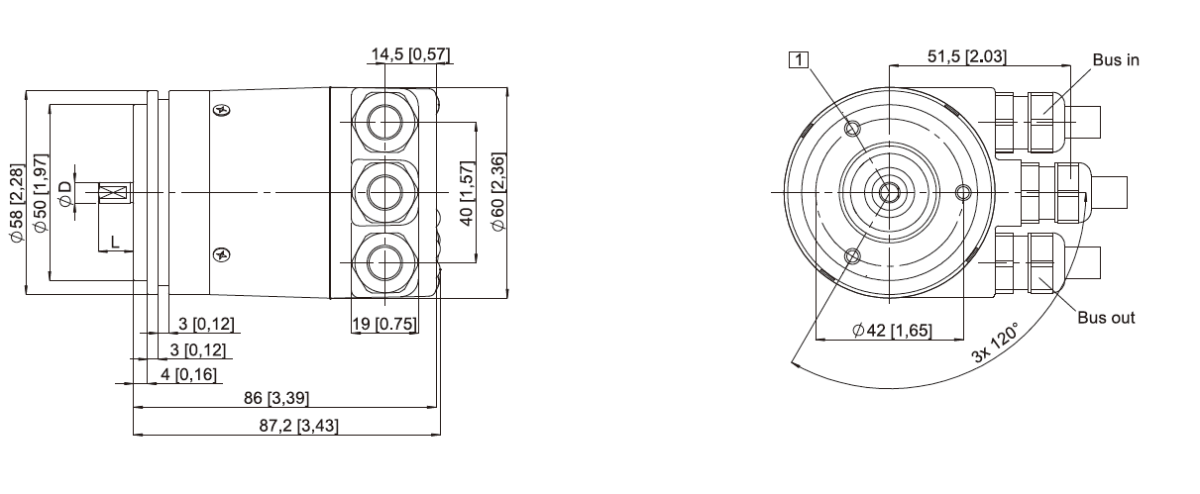

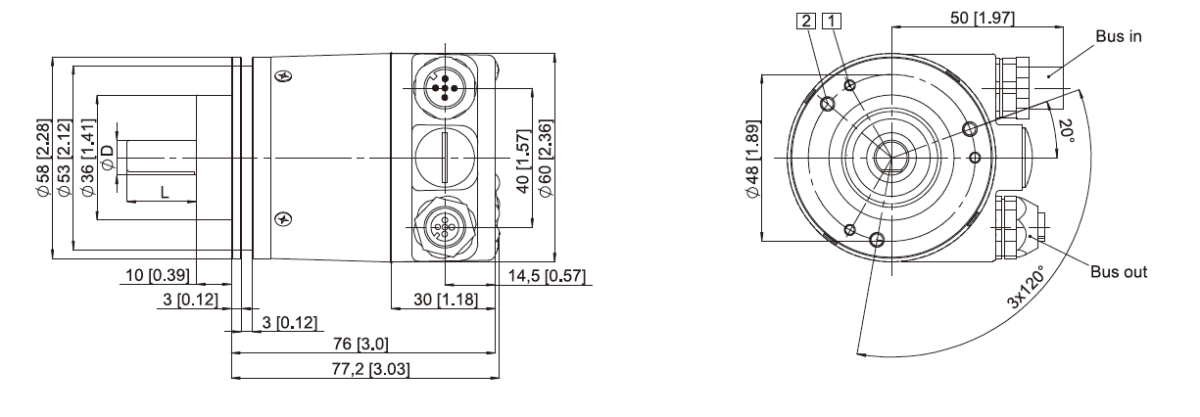

Dimensions
