VLS series Sub-miniature Button Load Cell
Specifications
| Rated output | 1.0mV/V±0.4mV/V, 0.8mV/V±0.4mV/V(VLS-0.5K) |
|---|---|
| Nonlinearity | ±1%R.C. |
| Hysteresis | ±1%R.C. |
| Repeatability | ±1%R.C. |
| Zero balance | ±0.2mV/V |
| Temperature effect on zero balance | ±2%R.C./10°C |
| Temperature effect on load | ±2%R.C./10°C |
| Safe overload rating | 150%R.C. |
| Temperature compensation range | 0–50°C (No condensation or freezing) |
| Safe temperature range | −10–60°C (No condensation or freezing) |
| Input terminal resistance | 350±10Ω |
| Output terminal resistance | 350±10Ω |
| Recommended excitation voltage | 5V or less |
| Maximum excitation voltage | 8V |
| Insulation resistance | 1000MΩ or more (DC 50V) (Bridge–Housing) |
| IP rating | Equivalent to IP60 (Main body only) (Note 1) |
| Cable | φ1.8mm 4-core Shielded cable 3m, directly-connected |
- (Note 1) Sealing performance of the cable outlet may deteriorate due to the change of cable jacket over years.
Model selection
| Selection | Model | Rated capacity | Deflection at R.C. | φA | B | C | φD | Weight |
|---|---|---|---|---|---|---|---|---|
| VLS-0.5K | 4.903N | Approx. 0.05mm | φ12 | 4 | 0.5 | φ1 | Approx. 6g | |
| VLS-1K | 9.807N | |||||||
| VLS-2K | 19.61N | |||||||
| VLS-5K | 49.03N | |||||||
| VLS-10K | 98.07N | φ15 | 5 | Approx. 10g | ||||
| VLS-20K | 196.1N | |||||||
| VLS-50K | 490.3N | φ20 | 9.5 | 1.5 | φ2 | Approx. 20g | ||
| VLS-100K | 980.7N | φ3 | Approx. 22g |
- *Weight includes cable.

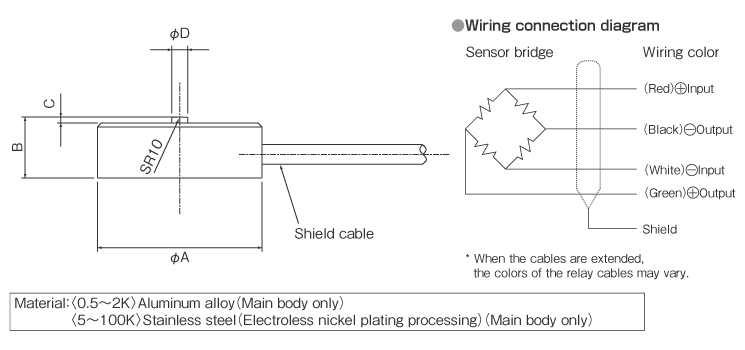

External dimensions (Unit: mm)
