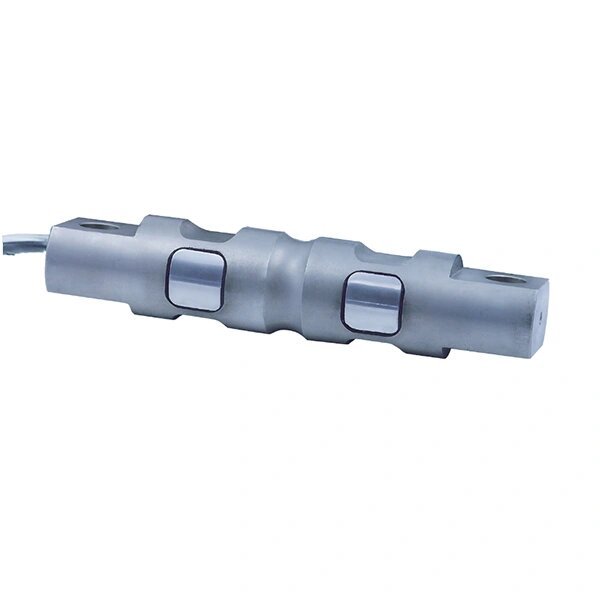

SL5132/SL5133 Dual Shear Beam Load Cell
Technical Specifications
|
Specfications |
Technique |
|||
|
Maximum capacity (Emax) |
5/10/15/20/30/40/50/60/75/90/100/150/200/250klb |
|||
|
Accuracy class |
C3 |
C4 |
A5M |
B10M |
|
Maximum number of load cell intervals (nLC) |
3000nmax |
4000nmax |
Ⅲ 5000 Multiple |
Ⅲ L 10000 Multiple |
|
Ratio of minimum LC verification intervalY=Emax / Vmin |
Emax/10000Vmin |
Emax/14000Vmin |
Emax/15000Vmin |
Emax/10000Vmin |
|
Combined error |
≤±0.020%FS |
≤±0.018%FS |
≤±0.026%FS |
≤±0.050%FS |
|
Creep |
≤±0.016%FS/30min |
≤±0.012%FS/30min |
≤±0.017%FS/30min |
≤±0.040%FS/30min |
|
Temperature effect on sensitivity |
≤±0.011%FS/10℃ |
≤±0.009%FS/10℃ |
≤±0.013%FS/10℃ |
≤±0.040%FS/10℃ |
|
Temperature effect on zero |
≤±0.015%FS/10℃ |
≤±0.010%FS/10℃ |
≤±0.014%FS/10℃ |
≤±0.020%FS/10℃ |
|
Output sensitivity (=FS) |
3.0±0.008mV/V |
|||
|
Input resistance |
700±7Ω |
|||
|
Output resistance |
703±4Ω |
|||
|
Insulation resistance |
≥5000MΩ(50VDC) |
|||
|
Zero balance |
≤±1.0%FS ～ |
|||
|
Compensated temperature |
-10 +40℃ ～ |
|||
|
Operating temperature |
-35 +70℃ |
|||
|
Excitation, recommended voltage |
5~12VDC |
|||
|
Excitation maximum |
18VDC |
|||
|
Safe overload |
150%FS |
|||
|
Ultimate overload |
300%FS |
|||
|
ATEX classification (optional) |
II1G Ex ia II1C T4/II1D Ex iaD20 T73℃/II3G Ex nL II C T4 |
|||
|
Wiring |
Red: Input+, Green: Output+, Transparent: Shield,Black: Input-,White: Output- Shielded, 4 conductor cable diameter for 5k – 20k:Φ5mm and for 30k – 250k: Φ8mm； Standard cable length: 9m. |
|||
Product Dimensions
|
xxklb |
A5M/B10M |
FA5132-xx-xxK-9B |
|
NTEP A5S/B10M Certificate (Klb-250Klb) |
||
|
xxklb |
A5M/B10M |
FA5133-xx-xxK-9B |
|
5klb-250klb approved by PTB C3. 5klb-20klb approved by PTB C4. 5klb-250klb approved by NTEPA5M/B10M. |
||
Installation size
Load Direction
Wiring Diagram
Accurate measurement with matching display
The output of the force measuring and weighing sensor itself is an MV signal, which needs to be amplified and convertedto display numerical values or output signals to the upper computer, PLC, etc.
