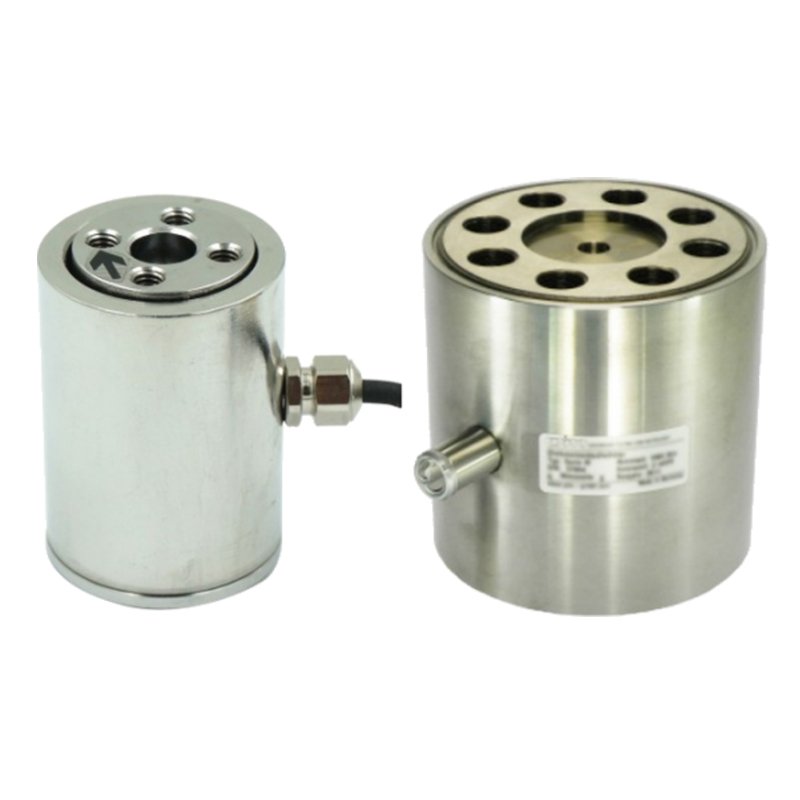

TQ903C Micro Torque Sensor
Product Description
Features And Uses
Static torque sensor;
Compact structure, easy to install;
Protection grade: IP65;
Used to measure static and non-continuous rotating torque values;
Application field: automobile assembly, automatic assembly, 3C product testing, new energy product assembly, medical testing, robot, mold assembly and other industrial testing, measurement and control system.

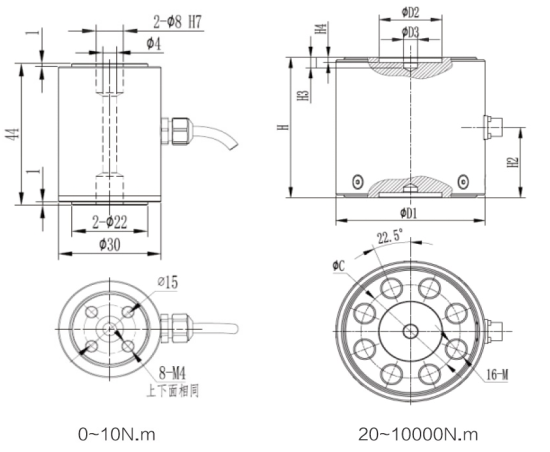

Mounting Dimension
| Measurement range Cap (N.m) | D1 | D2 | D3 | C | H | H2 | H3 | H4 | M |
| 0.2,50100 | 50 | 20:7 | 8H8 | 30 | 61 | 30.5 | 8 | 4 | M6 Deep8 |
| 200300,50 | 73 | 30H7 | 10:8 | 45 | 82 | 41 | 8 | 4 | M10 Depth15 |
| 1,1.5,2 | 107 | 45:7 | 10:8 | 71 | 107 | 54 | 8 | 4 | M16 Deep22 |
| 4,5,6 kN.m | 141 | 60:7 | 10:8 | 95 | 130 | 65 | 8 | 4 | M20 Depth25 |
| 10 kN.m | 205 | 120:7 | 10:8 | 155 | 170 | 85 | 12 | 8 | M24 Depth35 |
Parameter List
| Rated Range | 0.2, 0.5, 2,5,10.20, 50100200 N.m
0.2, 0.3, 0.5, 1.5, 2,4,5,6,10 kN. M |
Insulation Resistance | ≥ 5000mΩ/100VDC |
| Rated Output | 1.5±10%mV/V | Excitation Voltage | 5-15V |
| Zero Point Balance | ±2%F.S. | The Maximum Excitation Voltage | 20 volts |
| Nonlinearity | 0.1%F.S. | Temperature Compensation Range | -10~60℃ |
| Lag Error | 0.1%F.S. | Operating Temperature Range | -20~80℃ |
| Repeatability | 0.05%F.S. | Safe Load(E L) | 120%F.S. |
| Creep (30 Minutes) | 0.1%F.S. | Failure Load(E D) | 150%F.S. |
| Sensitivity Drift Temperature Coefficient | 0.05%F.S./10℃ | Cable Dimension | Φ3×4000mm |
| Zero Drift Temperature Coefficient | 0.05%F.S./10℃ | Cloth | |
| Input Resistance | 410±20Ω | Unit Weight | |
| Output Resistance | 350±10Ω | Protection | Ip65 |

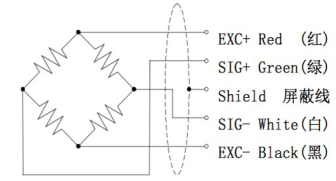

| Direction Of Force | Wiring Method |
 |
 |
