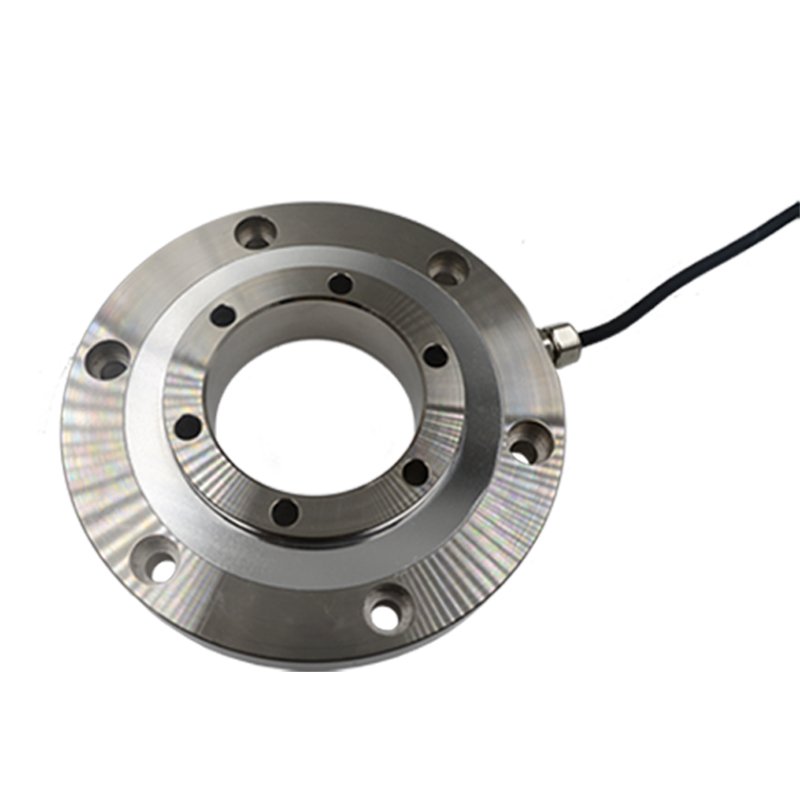

TCR118B Flange Compression Force Sensor
Product Description
Features and Uses
Flange sensor;
Made of stainless steel/alloy steel;
Bidirectional stretching and compression, customizable measuring range;
Used in medical testing, robotics, mold assembly and other industrial test, measurement and control systems;
Also suitable for various industrial weighing systems, such as testing machines, automotive scales, hopper scales, etc.
Application field: automobile assembly, automatic assembly, 3C product testing, new energy product assembly, medical testing, robot, mold assembly and other industrial testing, measurement and control system.

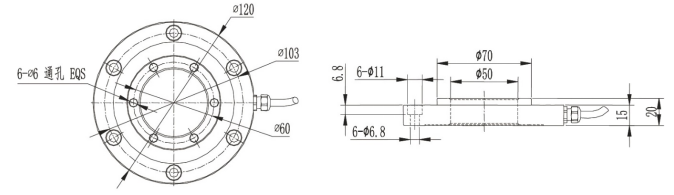

Mounting Dimension
Parameter List
| Rated Range | 0.1,0.2,0.5,1,2,3,5,10t | Insulation Resistance | ≥ 5000mΩ/100VDC |
| Consideration | 1.5±10%mV/V | Excitation Voltage | 5~12V |
| Null Balance | ±2%F.S | The Maximum Excitation Voltage | 15volts |
| Nonlinearity | 0.2%F.S | Temperature Compensation Range | -10~40℃ |
| Lag Error | 0.2%F.S | Operating Temperature Range | -20〜70℃ |
| Repeatability | 0.1%F.S | Safe Load(E L) | 120%F.S. |
| Creep (30 Minutes) | 0.03%F.S | Failure Load(E D) | 150%F.S. |
| Sensitivity Drift Temperature Coefficient | 0.05%F.S./10℃ | Cable size | Φ4×4000mm |
| Zero Drift Temperature Coefficient | 0.05%F.S./10℃ | Cloth | Stainless steel/alloy steel |
| Input Resistance | 780±10Ω | Unit Weight(G) | |
| Output Resistance | 700±5Ω | Protection | Ip68 |

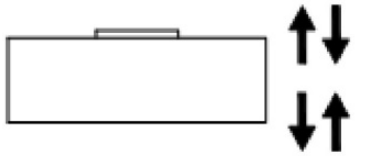

| Direction Of Force | Wiring Method |
 |
 |
