TC301 Miniature Compression And Tension Load Cell
Product Description
Features and Uses
Micro sensor, low height, small deformation.
Made of stainless steel.
Bidirectional stretching and compression.
High dynamic response frequency.
Mainly used in automobile press assembly, automatic assembly, 3C product testing, new energy product assembly, medical testing, robot, mold assembly and other industrial testing, measurement and control system.
Application field: automobile assembly, automatic assembly, 3C product testing, new energy product assembly, medical testing, robot, mold assembly and other industrial testing, measurement and control system.

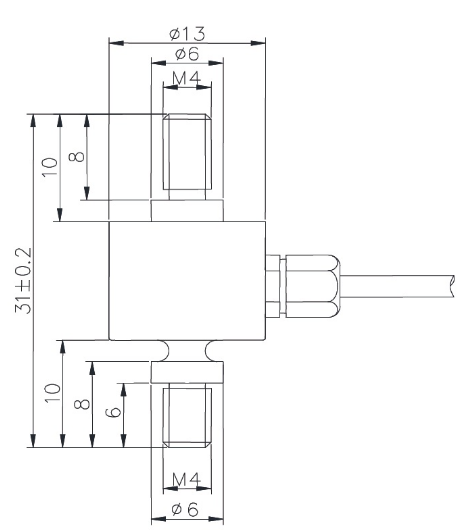

Mounting Dimension
Parameter List
| Rated Range | 501002005001000N | Insulation Resistance | ≥ 5000mΩ/100VDC |
| Consideration | 1.0±20%mV/V | Excitation Voltage | 5~12V |
| Null Balance | ±0.05%F.S | The Maximum Excitation Voltage | 15volts |
| Nonlinearity | 0.5%F.S | Temperature Compensation Range | -10~60℃ |
| Lag Error | 0.5%F.S | Operating Temperature Range | -20〜80℃ |
| Repeatability | 0.2%F.S | Safe Load(E L) | 150%F.S. |
| Creep (30 Minutes) | 0.2%F.S | Failure Load(E D) | 200%F.S. |
| Sensitivity Drift Temperature Coefficient | 0.2%F.S./10℃ | Cable size | Φ2×4000mm |
| Zero Drift Temperature Coefficient | 0.2%F.S./10℃ | Cloth | Stainless steel |
| Input Resistance | 800±1100Ω | Unit Weight(G) | 0.1kg |
| Output Resistance | 800±1100Ω | Protection | Ip67 |
| Direction Of Force | Wiring Method |
 |
 |
