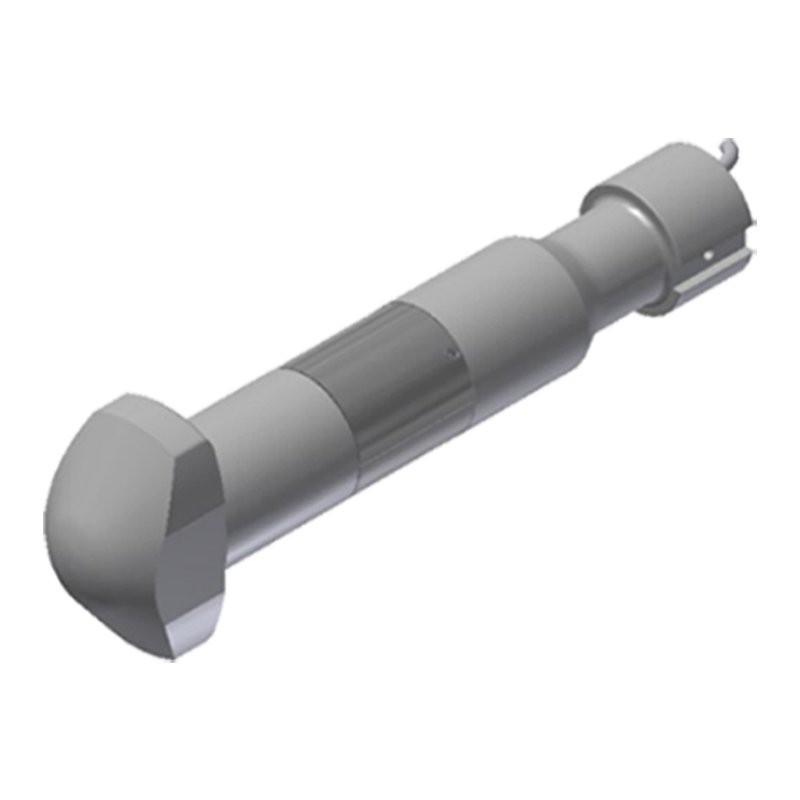

LPR606C Custom Pin Load Cell
Product Description
Features and Uses
5 times overload capacity, low height, minimum deformation, easy installation.
Bidirectional tensile and compression measurement.
Mainly used for push force measurement, hopper scales and various industrial weighing systems.
Suitable for button force testing, contact force testing, automotive assembly, automatic assembly, 3C product testing, new energy product assembly, medical testing, robot and mold assembly.
Application field: automobile assembly, automatic assembly, 3C product testing, new energy product assembly, medical testing, robot, mold assembly and other industrial testing, measurement and control system.

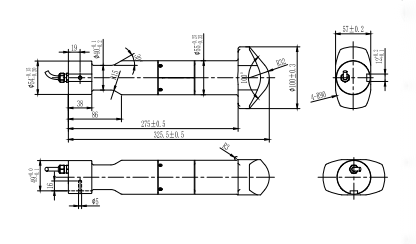

Mounting Dimension
Parameter List
| Rated Range | 20T | Insulation Resistance | ≥ 5000mΩ/100VDC |
| Consideration | ±0.2mV/V | Excitation Voltage | 5-12V |
| Null Balance | ±1%.S | The Maximum Excitation Voltage | 15volts |
| Nonlinearity | 0.1%F.S | Temperature Compensation Range | -10~60℃ |
| Lag Error | 0.1%F.S | Operating Temperature Range | -40〜80℃ |
| Repeatability | 0.03%F.S | Safe Load | 150%F.S. |
| Creep (30 Minutes) | 0.05%F.S | Failure Load | 300%F.S. |
| Sensitivity Drift Temperature Coefficient | 0.05%F.S./10℃ | Cable size | Φ4×4000mm |
| Zero Drift Temperature Coefficient | 0.03%F.S./10℃ | Protection | Ip67 |
| Input Resistance | 780±20Ω | Cloth | φ6x1m (waterproof cable) |
| Output Resistance | 700±10Ω | Service life | A million times |
| Direction Of Force | Wiring Method |
 |
 |
