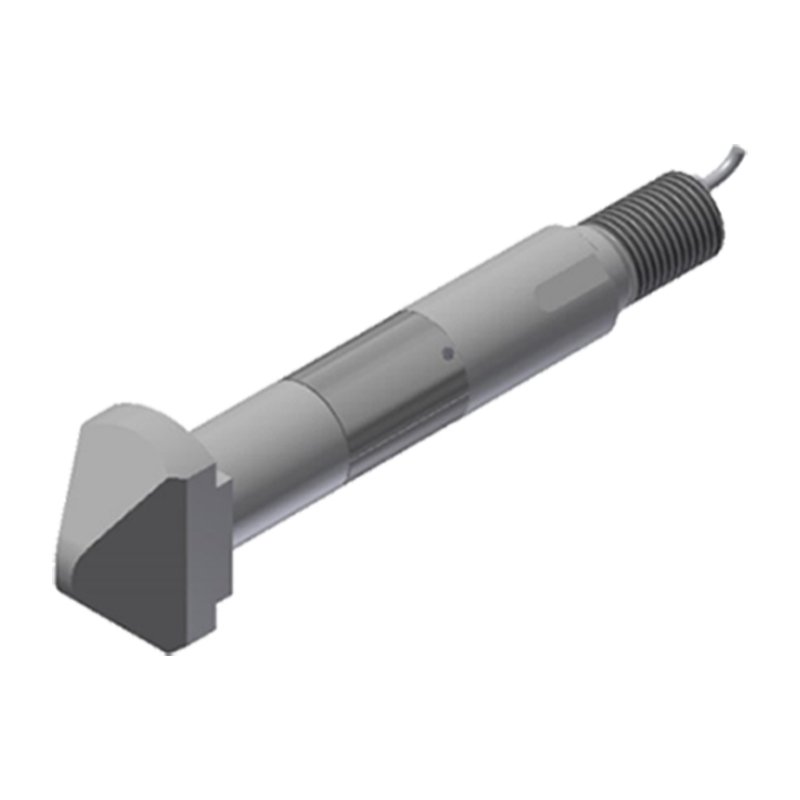

LPR606B Custom Pin Load Cell
Product Description
Features and Uses
5 times overload capacity, low height, minimum deformation, easy installation.
Bidirectional tensile and compression measurement.
Mainly used for push force measurement, hopper scales and various industrial weighing systems.
Suitable for button force testing, contact force testing, automotive assembly, automatic assembly, 3C product testing, new energy product assembly, medical testing, robot and mold assembly.
This is a patented product, infringement will be pursued.
Application field: automobile assembly, automatic assembly, 3C product testing, new energy product assembly, medical testing, robot, mold assembly and other industrial testing, measurement and control system.

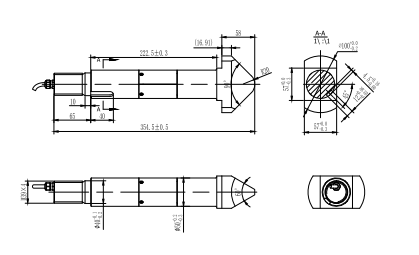

Mounting Dimension
Parameter List
| Rated Range | 20T | Insulation Resistance | ≥ 5000mΩ/100VDC |
| Consideration | ±0.2mV/V | Excitation Voltage | 5-12V |
| Null Balance | ±1%.S | The Maximum Excitation Voltage | 15volts |
| Nonlinearity | 0.1%F.S | Temperature Compensation Range | -10~60℃ |
| Lag Error | 0.1%F.S | Operating Temperature Range | -40〜80℃ |
| Repeatability | 0.03%F.S | Safe OverLoad | 150%F.S. |
| Creep (30 Minutes) | 0.05%F.S | Failure OverLoad | 300%F.S. |
| Sensitivity Drift Temperature Coefficient | 0.05%F.S./10℃ | Protection | Ip66 |
| Zero Drift Temperature Coefficient | 0.03%F.S./10℃ | Cloth | φ6x1m (waterproof cable) |
| Input Resistance | 780±20Ω | Service life | A million times |
| Output Resistance | 700±10Ω |
| Direction Of Force | Wiring Method |
 |
 |
