SC4818은 10톤에서 40톤까지의 압축 하중을 측정하도록 설계된 고하중 캐니스터형 로드셀입니다. 합금강 또는 스테인리스강으로 제작되어 혹독한 측정 환경에 적합하며 IP68 등급을 받았습니다.

The SC4818 is a heavy duty canister type load cell designed to measure compressive load in ranges from 10 Tonne to 40 Tonne. Built with either alloy steel or stainless steel it is suite for harsh measurement environments and is rated with an IP68 rating.

Model 41 is a low profile “pancake” type load cells. These bonded foil, strain gage load cells are engineered to measure loads from 5 lb to 500,000 lb. The tension/ compression Model 41 is designed with the threaded hole running completely through the center of the cell. Model 41 utilizes two stabilizing diaphragms, which are welded to the sensing member to reduce off-center and side-loading effects. It provides high performance in non-linearity, hysteresis, and repeatability specifications for such applications as tube mills, extruding processes and weighing. Each unit has a welded construction and can be hermetically sealed for added durability. Model 41 load cells are available with optional 0 Vdc to 5 Vdc or 4 mA to 20 mA output.

It should be widely used in auto press assembly, automated assembly, and 3C product testing;New energy product assembly, medical testing, robot, mold assembly;And other industrial test, measurement and system, easy to install.It can also be used in push and pull gauges, various industrial weighing systems, etc., with high dynamic response frequency.

Material: stainless steel

Size: Low height, Plane loading

Column type load cell undertake special surface spraying and seal processing, can be used in harsh environment for a long time. Compression load cell can be applied for large platform scale, truck scale, rail weighbridge, and special for engineering force testing, overload safety testing and impact force measurement and control.

This product is simple in structure design and low in cost. The design of its sealing diaphragm changes the complicated process of matching the shell in the past, overcomes the defect that the shell of the traditional sensor is easy to be damaged due to deformation, and greatly improves the sealing performance of the sensor. Compared with the traditional column sensor, the sensor with this structure has higher accuracy in linearity, lateral resistance, torsion resistance and azimuth error.
This small size is suitable for the production and testing of 3C digital products. Traditional column sensors are widely used in various electronic weighing equipment such as track scales, hopper scales and platform scales.

1. Alloy steel/Stainless steel;

2. High accuracy digital truck scales load cell with 1,000,000 counts

3.Suitable for electronic truck scale, track scale and other electronic weighing  devices.

1.Made of stainless steel;

2. Suitable for proportioning control system, detecting equipment and other weighing devices.

KWT1D52H is a big-range compact-design column load cell. It is made of 17-4PH material, and its rated range is 200kN. The sensor has a rasied surface radius to reduce the possibility of off-center load.

The ZMZX1 is column type compression mounting kit. The load cell offers fast signalling times and optimal transparency in dosing and weighing processes. With an output signal of 2.0 mV/V, load levels of up to 100 t, accuracy classes up to C3 and high-quality alloy steel, it has a wide range of potential applications.

Nickel plated alloy steel

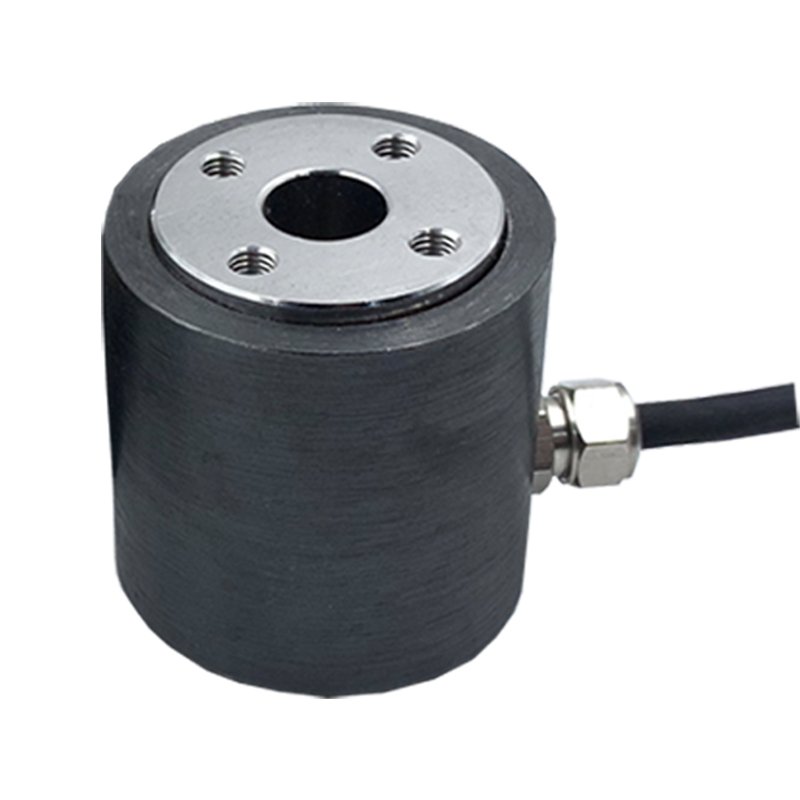

KWT1C80/130 series is a kind of column structure load cell, which both sides designed with double flanges to locating the position of mounting. The middle of load cell adopts through-hole design to meet the special requirements in the use process. This series has two size, the diameter of KWT1C80 is 80mm, the range is 25kN to 50kN, the KWT1C130 is 130mm and its range is 100kN. We also support customization on size and range as your needs.

• Capacity: 0-2000kg
• Sensitivity: 2.0±0.05mV/V
• Non-linearity 0.05% F.S.
• Repeatability 0.03% F.S.
• Material Stainless steel with nickel plated
• Bi-directional tension and compression
• Can be customized

Buy a tension and compression column load cell online with optional capacities ranging from 1 kg, 5 kg, 10 kg, 20 kg, 50 kg, 100 kg up to 2 tons. This miniature column-type load cell accurately measures both tensile and compressive forces, ideal for use in testing machines, industrial automation, process control, and weighing systems.
