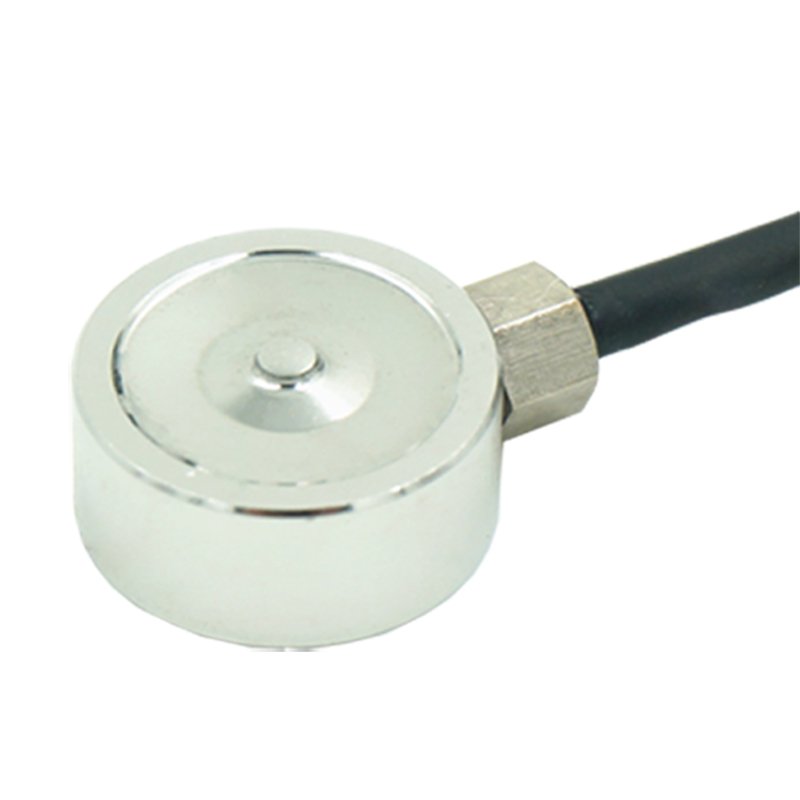

CM109 Miniature Compression Load Cell
Product Description
Features and Uses
Low height, small deformation, compact size.
Made of stainless steel.
High dynamic response frequency.
Customizable features, including protection level (IP67).
Used in assembly, medical testing, robotics, mold assembly and other industrial test, measurement and control systems for manufacturing processes such as automotive press assembly, automated assembly, injection molding and extrusion.
High precision, long-term stability, good reliability, fatigue resistance, high frequency of use, good creep performance, low temperature drift, high dynamic response frequency.
Application field: automobile assembly, automatic assembly, 3C product testing, new energy product assembly, medical testing, robot, mold assembly and other industrial testing, measurement and control system.

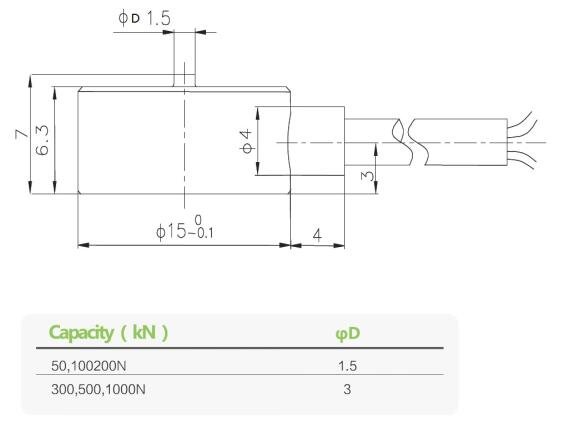

Mounting Dimension
Parameter List
| Rated Range | 501002003005001000N | Insulation Resistance | ≥ 5000mΩ/100VDC |
| Consideration | 1.0±20%mV/V | Excitation Voltage | 5~12V |
| Null Balance | ±0.03%F.S | The Maximum Excitation Voltage | 15volts |
| Nonlinearity | 0.5%F.S | Temperature Compensation Range | -10~60℃ |
| Lag Error | 0.2%F.S | Operating Temperature Range | -20〜80℃ |
| Repeatability | 0.2%F.S | Safe Load(E L) | 150%F.S. |
| Creep (30 Minutes) | 0.2%F.S | Failure Load(E D) | 200%F.S. |
| Sensitivity Drift Temperature Coefficient | 0.05%F.S./10℃ | Cable size | φ2×4000mm |
| Zero Drift Temperature Coefficient | 0.05%F.S./10℃ | Cloth | Stainless steel |
| Input Resistance | 800~1100Ω | Unit Weight(G) | 0.1kg |
| Output Resistance | 800~1100Ω | Protection | Ip67(customized) |
| Direction Of Force | Wiring Method |
 |
 |
