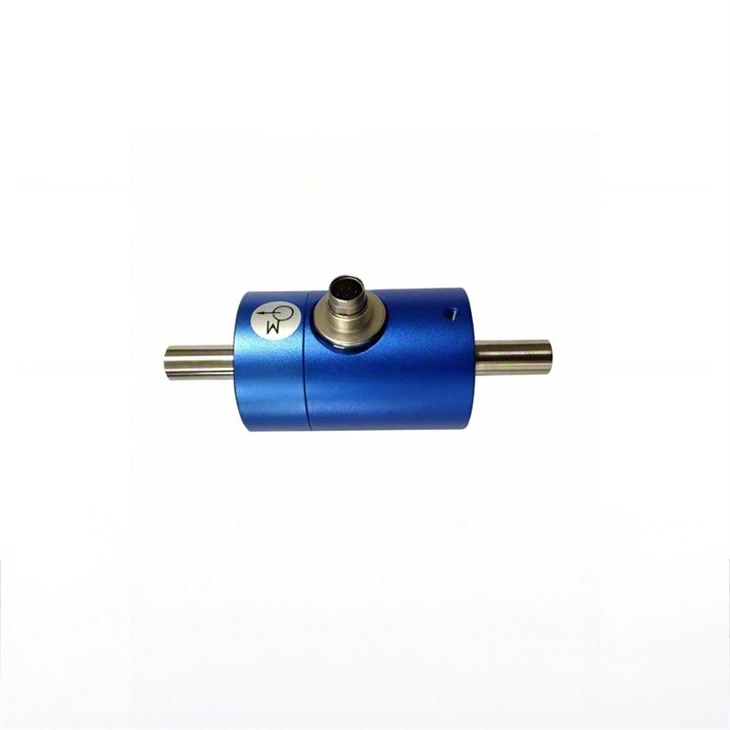

ZNJ-105 Static Torque Transducer For Micro Torsion Measuring
Static Torque Transducer for Micro Torsion Measuring
Model: ZNJ-105
A static torque sensor, also known as a reaction torque sensor, measures the twisting force on a non-rotating object or in a steady, slow-moving system. They are designed to measure the reaction torque, the twisting force generated against a fixed support, without measuring continuous rotation. These sensors are highly valued for their stability, precision, and durability.

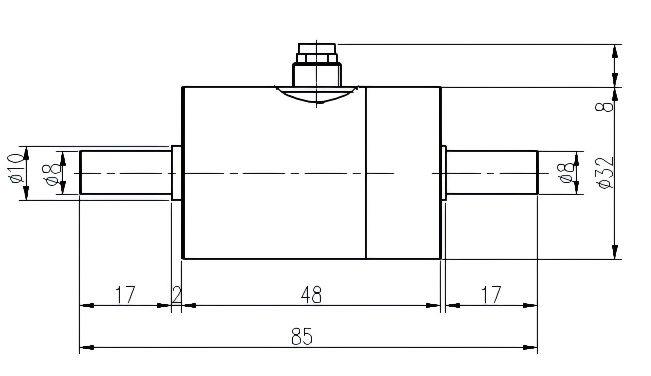

◆ Dimensions:
◆ Features and Applications
- This product integrates a resistance strain gauge sensor and an integrated circuit.
- It offers high precision, stable and reliable performance.
- It measures low-range torque and is easy to install and use.
- It is suitable for static torque measurement.
◆ Technical parameter
| Parameter | Specification | |||||
| Capacity | 0～0.1, 0.2,0.5,1,2,3Nm | |||||
| Rated Output | 1.5±10%mV/V | |||||
| Zero Balance | ±1%F.S | |||||
| non Linearity | ±0.1-0.3%F.S | |||||
| Hysteresis | ±0.05%F.S | |||||
| Repeatability | ±0.05%F.S | |||||
| creep | 0.03%F.S/30min | |||||
| Temp Effect On Output | 0.03%F.S/10℃ | |||||
| Temp Effect On Zero | 0.03%F.S/10℃ | |||||
| Input Impedance | 350/750±10Ω | |||||
| Output Impedance | 350/700±5Ω | |||||
| Respones Frequency | 100μS | |||||
| Insulation | ≥5000MΩ/100V | |||||
| Recommended Excitation | 10V(DC) | |||||
| Compensated Temp Range | -10-60℃ | |||||
| Operation Temp Range | -20-65℃ | |||||
| Safe Overload | 150%F.S | |||||
| UItimate Overload | 200%F.S | |||||
| Cable Size | Ø5.2x3m | |||||
| Cable Color Code | Input:Red(+),Black(-) ,Output:Green(+),White(-) | |||||
| Material | AI/Stainless steel/Alloy steel | |||||
