ZNJ-100 Static Torque Transducer 100Nm for Overload Protection

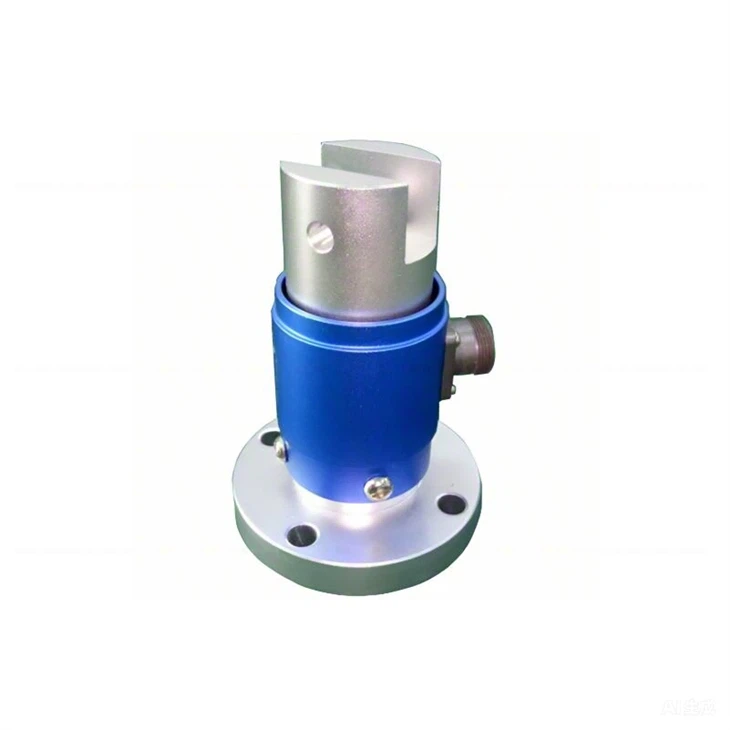

A static torque sensor, also known as a reaction torque sensor, measures the twisting force on a non-rotating object or in a steady, slow-moving system. They are designed to measure the reaction torque, the twisting force generated against a fixed support, without measuring continuous rotation. These sensors are highly valued for their stability, precision, and durability.
◆ Dimensions:
◆ Features and Applications
| 1. Applies resistance strain gauge which is a sensitive component with high accuracy,stable and reliable . | |||||
| 2. Low torque capacity, easy to install and use. | |||||
| 3. One end with key joint and another end with flanged joint. | |||||
| 4. Suitable for static torque measurement. |
◆ Technical parameter
| Parameter | Specification | ||||
| Capacity | 0.5,1,2,5,10,20,30,50,100Nm | ||||
| Rated Output | 1.3±10%mV/V | ||||
| Zero Balance | ±1%F.S | ||||
| non Linearity | ±0.1 – 0.3%F.S | ||||
| Hysteresis | ±0.05%F.S | ||||
| Repeatability | ±0.05%F.S | ||||
| Creep | 0.03%F.S/30min | ||||
| Temp Effect On Output | 0.03%F.S/10℃ | ||||
| Temp Effect On Zero | 0.03%F.S/10℃ | ||||
| Input Impedance | 350/750±10Ω | ||||
| Output Impedance | 350/700±5Ω | ||||
| Responses Frequency | 100μS | ||||
| Insulation | ≥5000MΩ/100V | ||||
| Recommended Excitation | 10V(DC) | ||||
| Compensated Temp Range | -10 – 60℃ | ||||
| Operation Temp Range | -20 – 65℃ | ||||
| Safe Overload | 150%F.S | ||||
| Ultimate Overload | 200%F.S | ||||
| Cable Size | Ø5.2×3m | ||||
| Cable Color Code | Input: Red(+), Black(-) | ||||
| Output: Green(+), White(-) | |||||
| Material | Al/ Stainless steel/ Alloy steel | ||||
