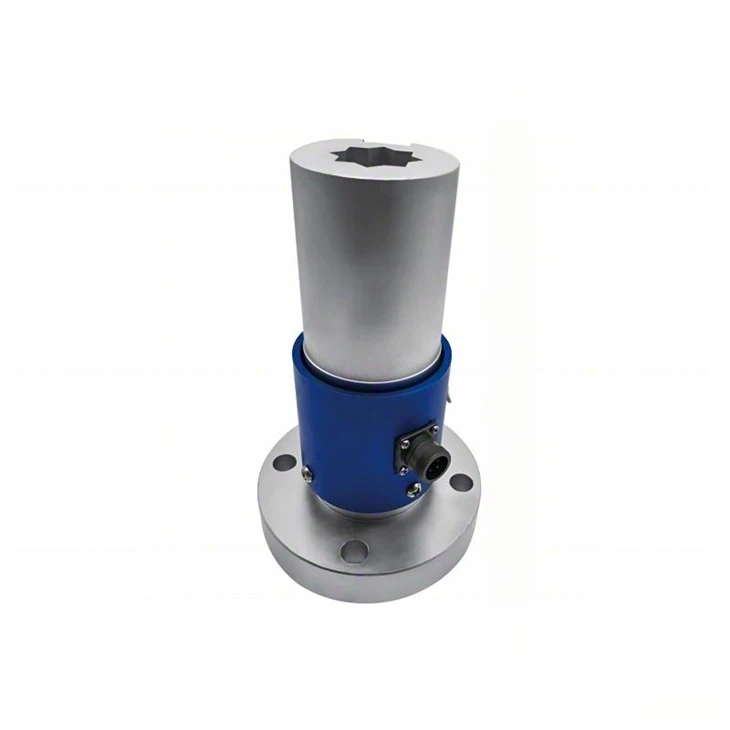

ZNJ-102 Non Rotary Torque Sensor For Industrial Calibration
A static torque sensor, also known as a reaction torque sensor, measures the twisting force on a non-rotating object or in a steady, slow-moving system. They are designed to measure the reaction torque, the twisting force generated against a fixed support, without measuring continuous rotation. These sensors are highly valued for their stability, precision, and durability.
How a static torque sensor works
Static torque sensors typically operate using strain gauge technology. The process works in a step-by-step manner:
1. The sensor is attached to a component or shaft where torque measurement is required.
2. When torque is applied, the internal elastic element of the sensor undergoes a slight mechanical deformation or twist.
3. Strain gauges, which are electrical resistors bonded to the elastic element, also deform. This deformation causes a change in their electrical resistance proportional to the applied torque.
4. A Wheatstone bridge circuit converts the resistance change into an electrical signal, typically a voltage.
5. This electrical signal is then amplified, processed, and translated into a precise torque reading.

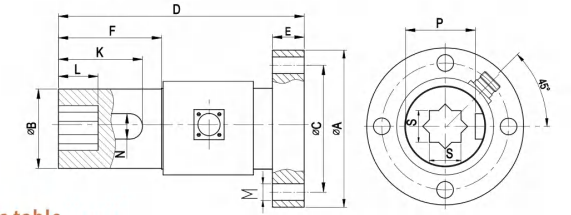

◆ Dimensions:
| Model | Capacity (N.m) |
A | B | C | D | E | F | K | L | N | S | P | M |
| ZNJ102A | 0 – 1K | 99 | 50 | 80 | 155 | 20 | 65 | 53 | 25 | 16 | 20 | 44 | 4 – φ10.5 |
| ZNJ102B | 0 – 1K | 98 | 50 | 80 | 90 | 15 | 33 | 33 | 25 | 16 | 20 | 44 | 4 – φ10.5 |
| ZNJ102C | 1.5K – 2K | 125 | 75 | 105 | 150 | 20 | 62 | 60 | 30 | 20 | 25.5 | 67.5 | 4 – φ12.5 |
| ZNJ102D | 2.5K – 5K | 125 | 75 | 105 | 150 | 20 | 62 | 60 | 30 | 20 | 40.5 | 67.5 | 4 – φ12.5 |
| ZNJ102E | 6K – 10K | 190 | 98 | 160 | 220 | 30 | 120 | 110 | 70 | 28 | 55 | 78 | 4 – φ19 |
Dimension unit: mm
◆ Features and Applications
| 1. Applies resistance strain gauge which is a sensitive component integrated with circuit featured by accurrate stable and reliable. | |||||||||||||
| 2. High torque capacity, easy to install and use. | |||||||||||||
| 3. One end with key (or inner squarekey) joint, another end with flanged joint. | |||||||||||||
| 4. Suitable for static torque measurement. |
◆ Technical parameter
| Parameters | Specification |
| Capacity | 0~20,50,100,200,300,500Nm |
| Rated Output | 1.5+10% mV/V |
| Zero Balance | ±1%FS |
| non Linearity | +0.1-0.3%FS |
| Hysteresis | ±0.05%F.S |
| Rapeatability | 0.05%F.S |
| Creep | 0.03%F.S/30min |
| Tamp Effact On Output | 0.03%F.S/10℃ |
| Temp Effect On Zero | 0.03%FS/10℃℃ |
| lnput impedance | 350/750+100 |
| Output impedance | 350/700+50 |
| Raspones Fraquency | 100μS |
| Insulation | ≥5000MΩ/100V |
| Recommended Excitation | 10V(DC) |
| Compensated Temp Range | -10 ~ 60℃ |
| Operation Temp Range | -20 ~ 65℃ |
| Safe verload | 150%F.S |
| Wltirnate Overload | 200%F.S |
| Cable Size | 05.2x3m |
| Cable Color Code | Input Red( +), Black(-)Output Green(+), white(-) |
| Material | Stainless steel/Alloy steel |
