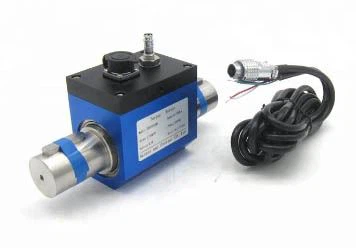

Dynamic Torque Transducer with RS485 interface

Dynamic Torque Transducer with RS485 interface

Model: DST-01

Dynamic Torque Transducers are critical components in torque wrench calibration systems, providing precise measurement of applied torque while compensating for reaction forces.

1. Role in Calibration Systems

Dynamic Torque Transducer For Industrial Calibration integrate with calibration systems featuring stepper motor controls, torque sensors, and encoders to achieve manual, automatic, or electronic handwheel operation

They enable both open-loop and closed-loop control, ensuring calibration accuracy through real-time feedback

2. Critical Technical Features

TEDS (IEEE1451.4) Support: Automates sensor identification and calibration parameters, reducing setup errors

Robust Construction:

Stainless steel  for corrosion resistance in industrial environments

Aluminum alloy for lightweight applications

Overload Protection:  withstand 150% safe overload and 300% ultimate overload

Environmental Resilience: IP65-rated units , resist dust/water ingress

3. Integration in Calibration Workflows

Mounting: Flange/square-drive designs allow direct coupling with torque wrenches, minimizing misalignment errors

Signal Processing: Requires compatibility with:

Quadruplicated frequency circuits for noise reduction

Shielded cables (e.g., polyurethane/PVC-shielded) for precise low-noise measurements

Temperature Compensation: Critical for drift in variable lab/field conditions

◆ Dimensions:

◆ Features and Applications

Dynamic Torque Transducer For Industrial Calibration, output 5~15kHz frequency signal or 4~20mA current signal, suitable for long-distance transmission.

The feature is small in size, easy to use and install, strong signal anti-interference ability.

The product is non-contact type, no wear, the highest speed of 8000RPM, suitable for long-term high-speed rotation conditions.

It is a new product developed by our company on the basis of the special technology of strain bridge, which is suitable for all kinds of torque measurement occasions with small volume and high speed.

Applications:
DTS series dynamic torque sensor is an accurate measuring device for torque and mechanical power consumption. Mainly applied in
1.1 Electromotor, Engine motor, internal-combustion engine and other rotating equipment.
1.2 Fan, water pump, torque wrench
1.3 Train, auto mobile, tractor, airplane, ship, mining machine
1.4 Water recycling system
1.5 Viscometer
1.6 Process industry
1.7 Torque Wrench Calibration

◆ Technical parameter
