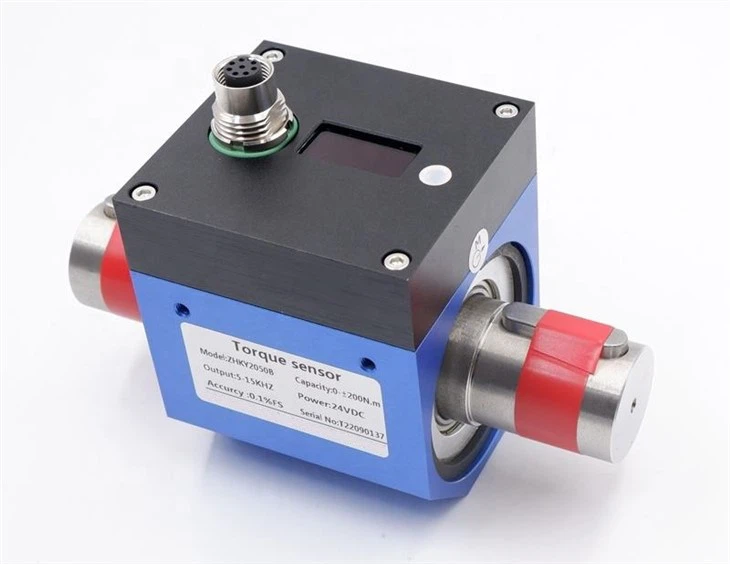

DTS-03D Dynamic Micro Torque Sensor In-line Torque Transducer with 0-5 Nm
Dynamic Micro Torque Sensor In-line Torque Transducer with 0-5 Nm
Model: DTS-03D
Other name: In line Torque transducer
◆ Features and Applications
Small torque sensor is a new product developed by our company on the basis of the special technology of strain bridge, which is suitable for all kinds of torque measurement occasions with small volume and high speed.
The product output 5~15kHz frequency signal or 4~20mA current signal, suitable for long-distance transmission.
This product is small in size, easy to use and install, strong signal anti-interference ability
The product is non-contact type, no wear, the highest speed of 8000-18000 RPM, suitable for long-term high-speed rotation conditions

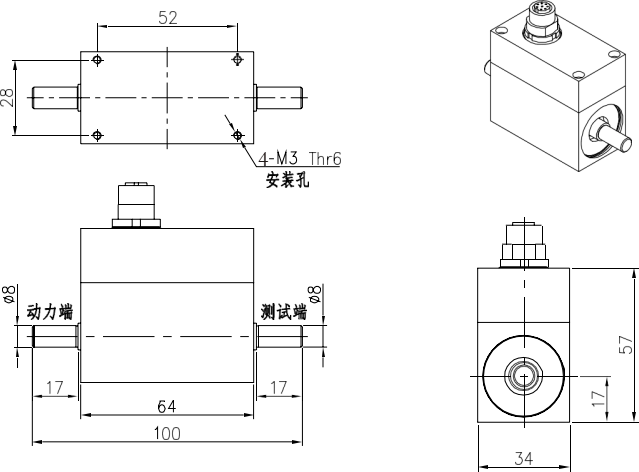

◆ Dimensions:
Applications:
DTS series dynamic torque sensor is an accurate measuring device for torque and mechanical power consumption. Mainly applied in
1.1 Electromotor, Engine motor, internal-combustion engine and other rotating equipment.
1.2 Fan, water pump, torque wrench
1.3 Train, auto mobile, tractor, airplane, ship, mining machine
1.4 Water recycling system
1.5 Viscometer
1.6 Process industry
1.7 Torque Wrench Calibration
◆ Technical parameter
| Index | Parameter specifications |
| Range(NM) | 0.1-5 |
| Power Supply Voltage | ± 15V DC ( frequency signal output),
24V DC ( voltage or current signal output) |
| Torque signal | 5~15Khz (amplitude of 12V, 0.0.10kHz), 4~20mA, 1~5V, 0-10V
RS485,RS232 (optional) |
| Speed Signal | 30Khz,4-20mA,0-10VDC |
| Range of speeds | 0~1000,3000,6000,8000 15000,18000rpm |
| Accuracy | ±0.25% |
| Year stability | 0.25% / year |
| insulation resistance | ≥2000MΩ(100VDC) |
| ambient temperature | -20~60℃ |
| relative humidity | 0～90%RH |
| overload capacity | 150% |
| frequency response | 1ms |
| Self Display | Optional |
Wire Connection
| 8-Pins Cable Electrical connection (Output signal and communication coexist) | |||||
| Power Supply | Pin 5 | Red | Power Vin + | ||
| Pin 6 | Black | Power Vin – | |||
| Signal | Pulse / current / voltage | Pulse difference | |||
| Pin 3 | Green | Torque | Torque A+ | ||
| Pin 4 | Yellow | Rotate Speed | Speed B+ | ||
| Pin 1 | White | Signal-(GND) | Torque A- | ||
| Pin 2 | Blue | Non | Speed B- | ||
| Communication | RS485 | RS232 | CAN | ||
| Pin 7 | Brown | A+ | TxD | H+ | |
| Pin 8 | Gray | B- | RxD | L- | |
| Signal- (common end) must use white GND, cannot use input power supply- | |||||
| Vin- is not equal to GND, there is a voltage difference | |||||
