HAMMERUNION1502 Fluid Pressure Sensor
Technical parameters
| Parameter | Value / Description |
|---|---|
| Standard pressure ranges | 0–5000, 6000, 7500, 10,000, 15,000, 20,000 PSIG |
| Static accuracy | ±0.2% FSO BFSL |
| Insulation resistance | >100 MΩ (50 VDC, 21 °C) |
| Zero balance | ±1% FSO (21 °C) |
| Span setting | ±1% FSO (21 °C) |
| Frequency response | 1000 Hz to 5 kHz |
| Proof pressure | 150% of rated range; 22,500 psi at 20,000 psi range |
| Burst pressure | 200% of rated range |
| Wetted material / media | Inconel 718 nickel‑chromium alloy for compatible liquids and gases |
| Weight | 170 g |
| Supply voltage | 9–36 VDC |
| Pressure / electrical connector | One‑piece PTIH‑10‑6P bolt‑on stainless‑steel connector (standard); one‑piece PTIH‑10‑6P welded hermetic type |
| Output signal | 4–20 mA |
| Compensated temperature range | –35 to 76 °C |
| Operating temperature range | –54 to 121 °C |

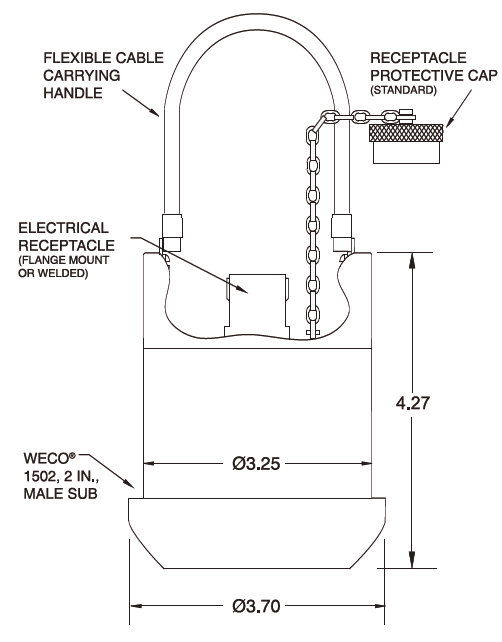

Dimensions
