Sensor Digital Electronic Display Indicator
XYT single input channel intelligent digital indicators can be used with variety of analog output sensors and transmitters to accomplish the measurement, transfer, display, transmission, recording and control of temperature, pressure, flow, level, component, force and displacement, etc.
Technical Specification:
- Supply Voltage: 220V AC:220V±10%, Power < 7w; 24V DC:24V±10%, Power < 5w;12V DC:9V~20V, Power < 5w; Other specifications are subject to the instruction attached
- Operating Temperature: 0~50℃, humidity < 90%R.H
- Display range: -1999~9999, Decimal point position can be set
- Display color: The measured value is green, the set value is red, the light column is red or customized
- Display resolution: 1/10000
- Input Signal: Voltage, Current, RTD, T/C, mV, potentiometer, Pressure Gauges with Resistance Transmitter
Voltage: 1V~5V DC,0V~5V DC, Can be selected by setting
Current: 4mA~20mA,0mA~10mA,0mA~20mA, Can be selected by setting
RTD: Pt100,Cu100,Cu50,BA1,BA2,G53, Can be selected by setting
T/C: K, S, R, B, N, E, J, T, Can be selected by setting
please leave a message for special request - Intrinsic Error: < ±0.2%F.S
- Measuring resolution: 1/60000, 16-bit A/D converter
- Measurement control cycle: 0.2s
Product Show

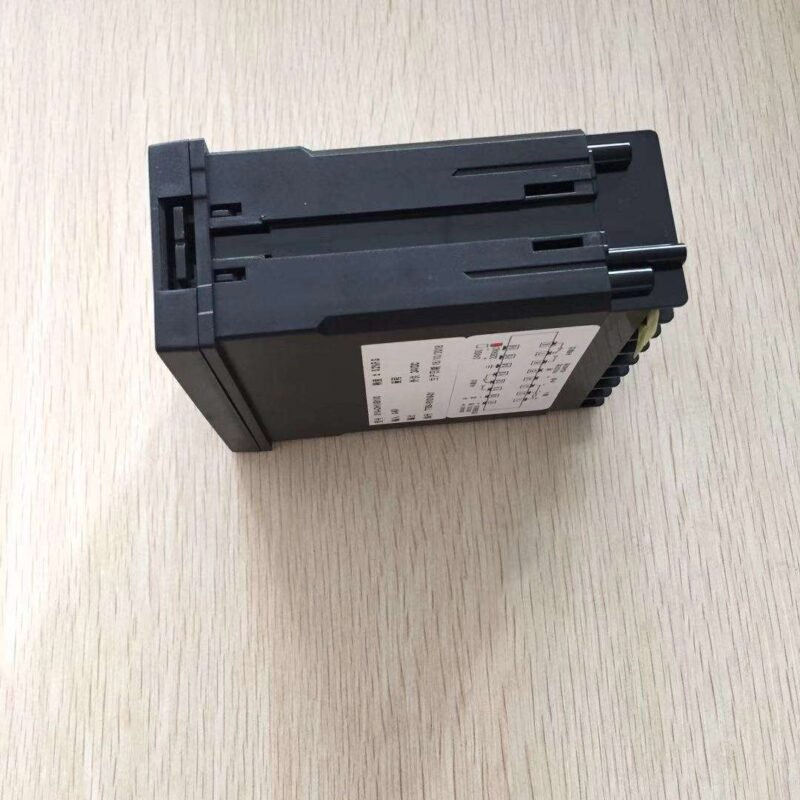

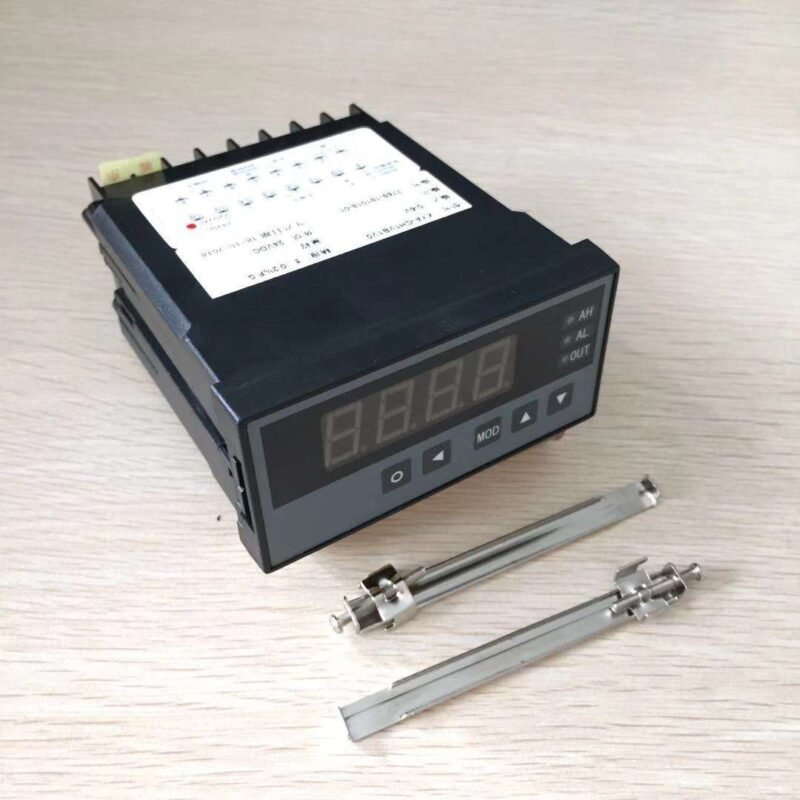

Digital indicator picture showing
