SOPX-302 High Quality And Inexpensive Cantilever Load Cell Industrial Loadcell 5 Ton for Industrial Scale
Product Description
Cantilever beam weighing sensor, also known as shear beam weighing sensor, is mostly rectangular in shape, and the strain zone is in the middle of the sensor. Cantilever beam weighing sensor has the characteristics of simple structure, convenient installation, reliable use, long service life and high cost performance. Cantilever beam weighing sensors have been widely used in truck scales,main axle load meters, small scale and platform scales ………..
Product features
1.Wide range of capacities from 0 to 5T
2.Alloy steel construction
3.Environmental Protection IP65 with complete hermetic sealing
4.Calibration in mV/V Low profile design
5.Low profile height and high structural strength, and can be used for bearing and measuring various tensile and compressive forces.
7.It is suitable for industrial automatic measurement and control systems for various force measurement and weighing such as electronic scales and weighing instruments.

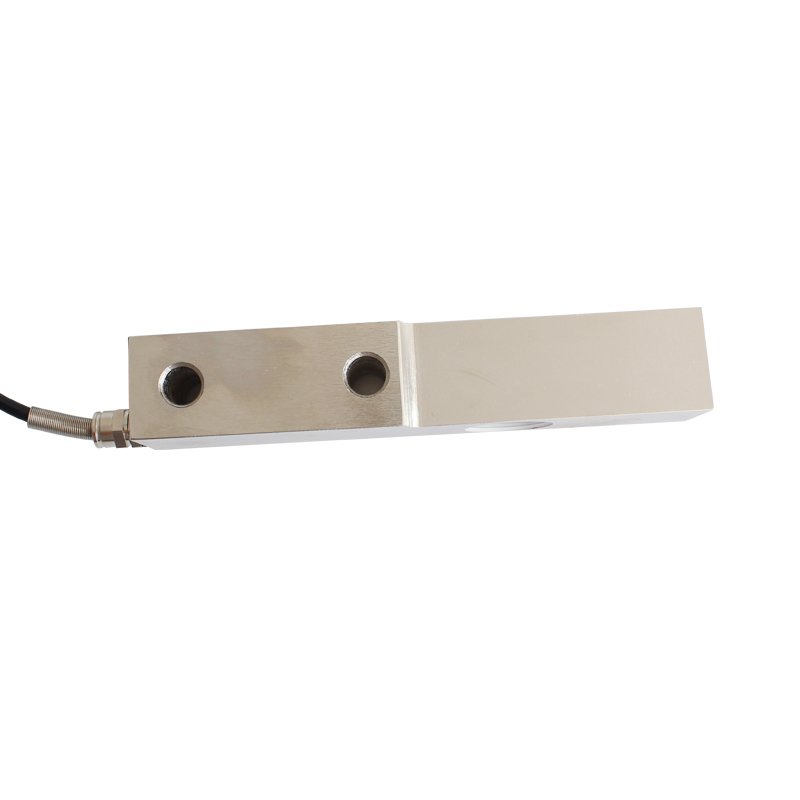

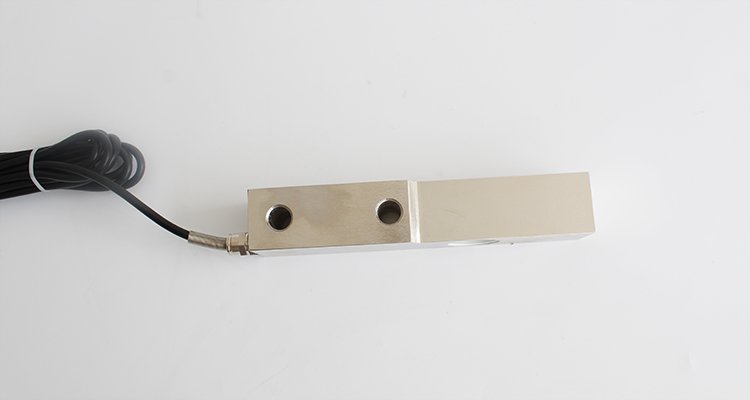

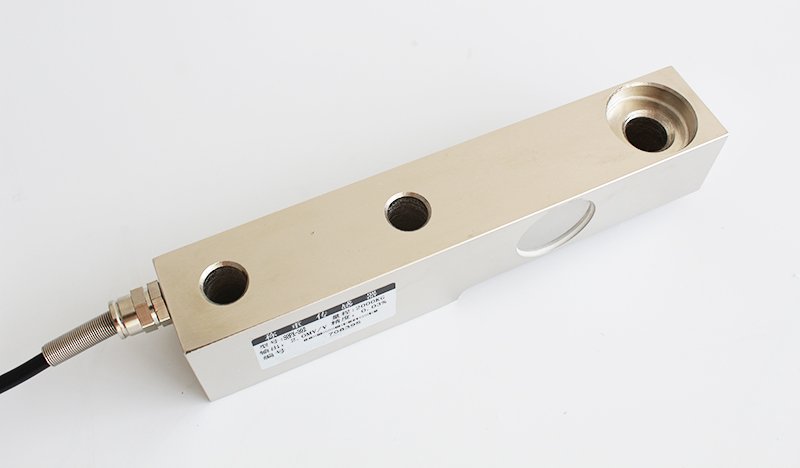

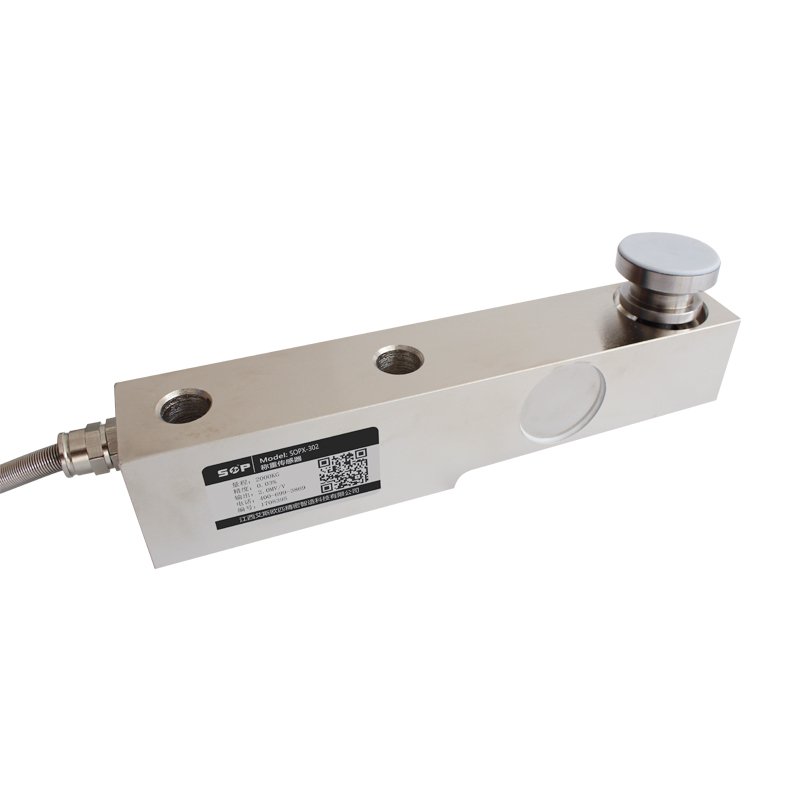

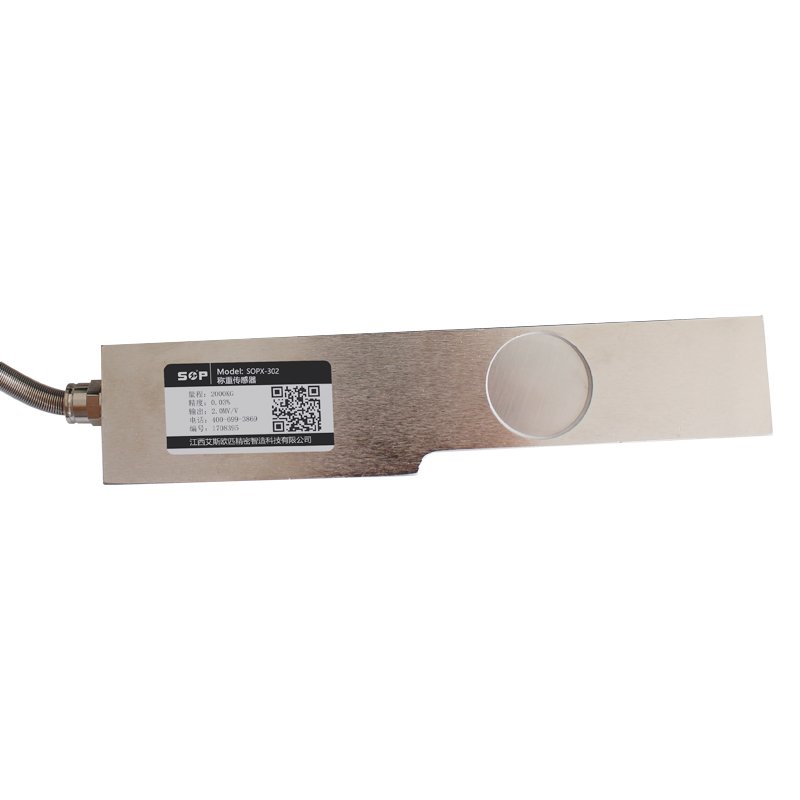

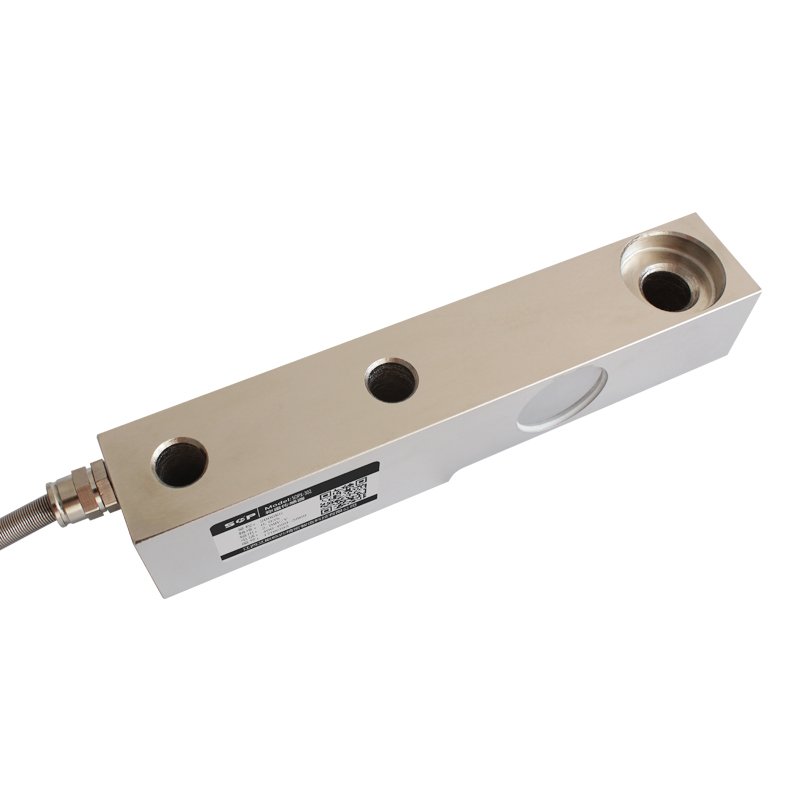

Detail Pictures

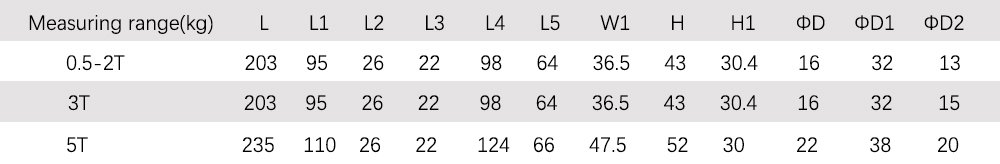

Product Parameters
| Parameter Table | |||
| Measuring Range | 0-5T | Material | Alloy steel/Stainless steel |
| Output Sensitivity | 2.0±0.02mV/V | Resistance | 350Ω |
| Zero Output | ±1%F.S. | Insulance | ≥5000MΩ/100VDC |
| Non-Linear | 0.03%F.S. | Operating voltage | 5-10v |
| Hysteresis | 0.03%F.S. | Operating temperature range | -20-80℃ |
| Repeatability | 0.02%F.S. | Safety overload | 150% |
| Creep(30min) | 0.02%F.S. | Ultimate overload | 300% |
| Temp.effect on output | 0.03% F.S. / 10ºC | Cable specification | Φ5X5m |
| Temp.effect on zero | 0.03% F.S. / 10ºC | Cable ultimate tension | 10kg |
| Response frequency | 10kHz | TEDS | optional |
Application
