SOPLF-101 High Precision Spoke Type Load Cell Force Transducers Weigh Cells for Universal Testing Machine

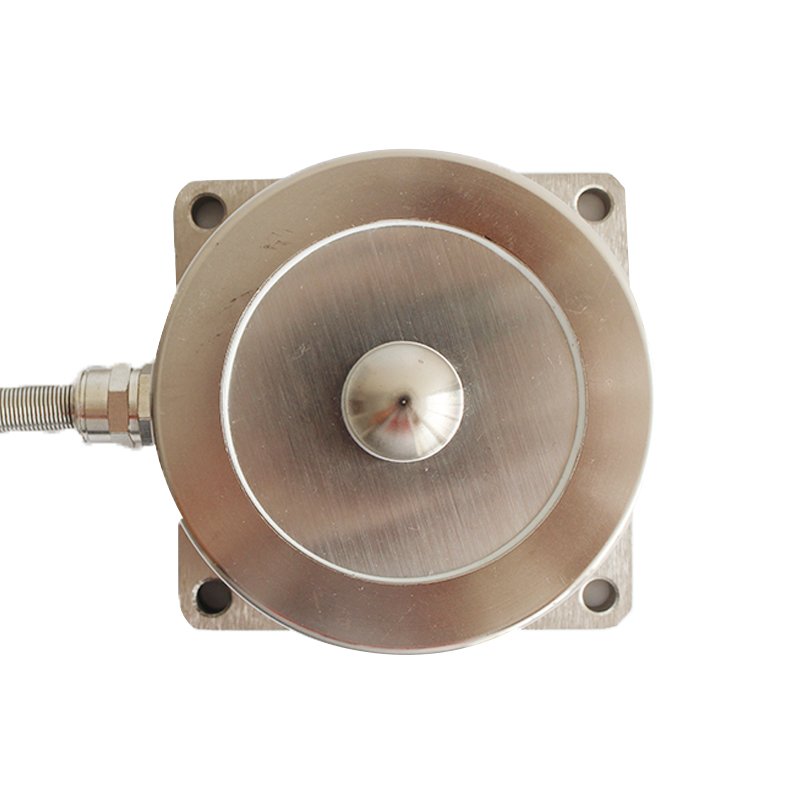

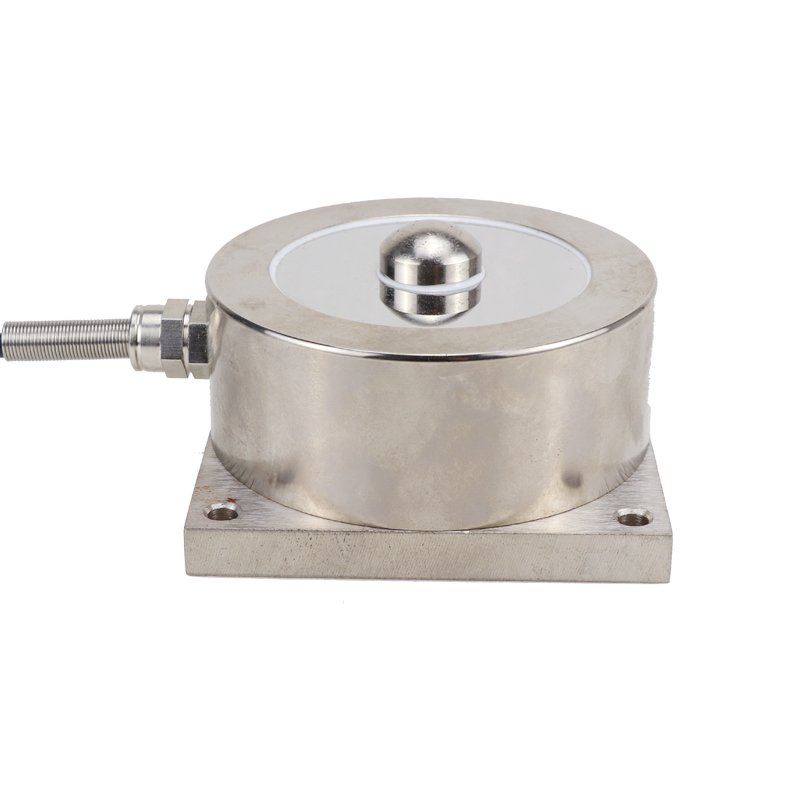

Product Description

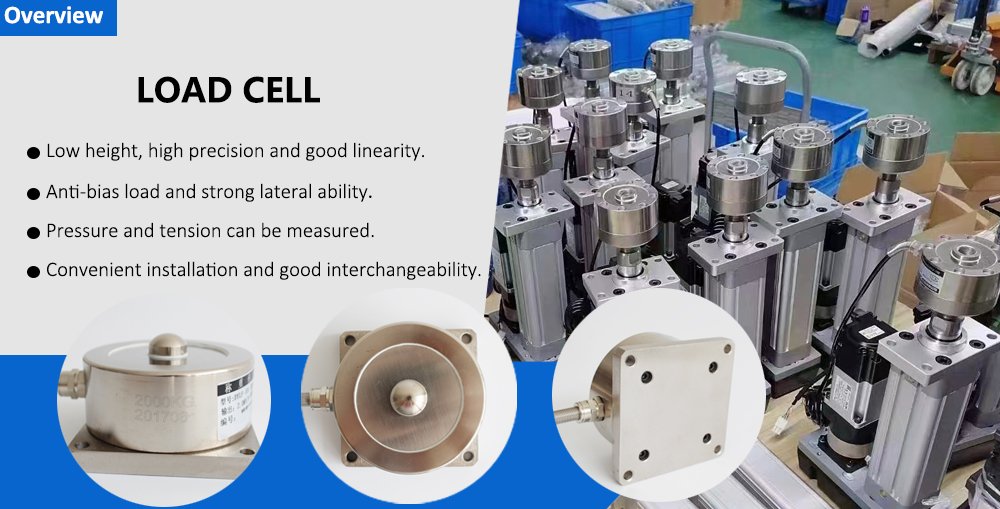

load cell transducers

The sensor adopts the wheel-width elastic structure, utilizes the shear stress principle, and has the characteristics of low profile, eccentric load resistance, high precision and good strength.It is suitable for testing various load forces.
It has a series of advantages, such as low height, high precision, good linearity, strong ability to resist eccentric load and lateral force, etc. It can be used to measure both pressure and tension. Therefore, it is very suitable for weighing and force measurement.



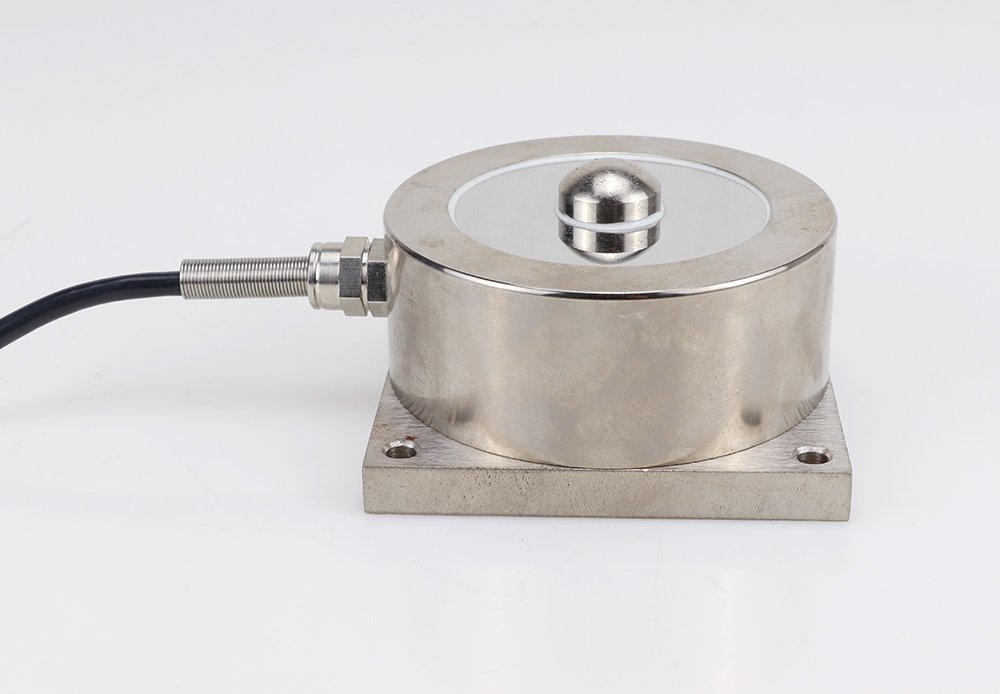

Spoke load cell

Product features

1.Meet force measurement in the range of 0-50T.

2.Alloy steel, sealed by adhesive inside, oil-proof, waterproof and anti-corrosion, suitable for all kinds of environments.

3.Low height, high precision, good linearity, strong resistance to partial load and lateral force.

4.Provided with a certificate of conformance and full-scale calibration.

5.It is insensitive to the change of the acting position and the influence of interference force, and the stressdistributionin theelastic strain-sensitive area only changes with the magnitude of the acting force.

6.The working area of the elastic body has good technological performance, including good machining and manufacturing, pasting and sealing installation processes.

7.It has low profile structure, convenient installation and good interchangeability.

8.The low profile structure can improve the anti-unbalanced load and make the running state stable.

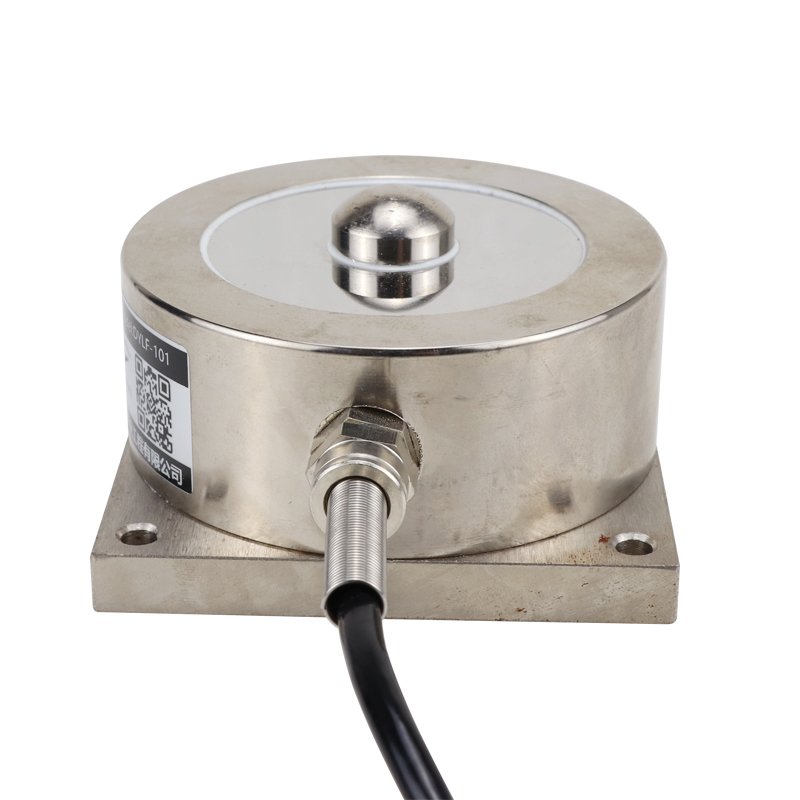

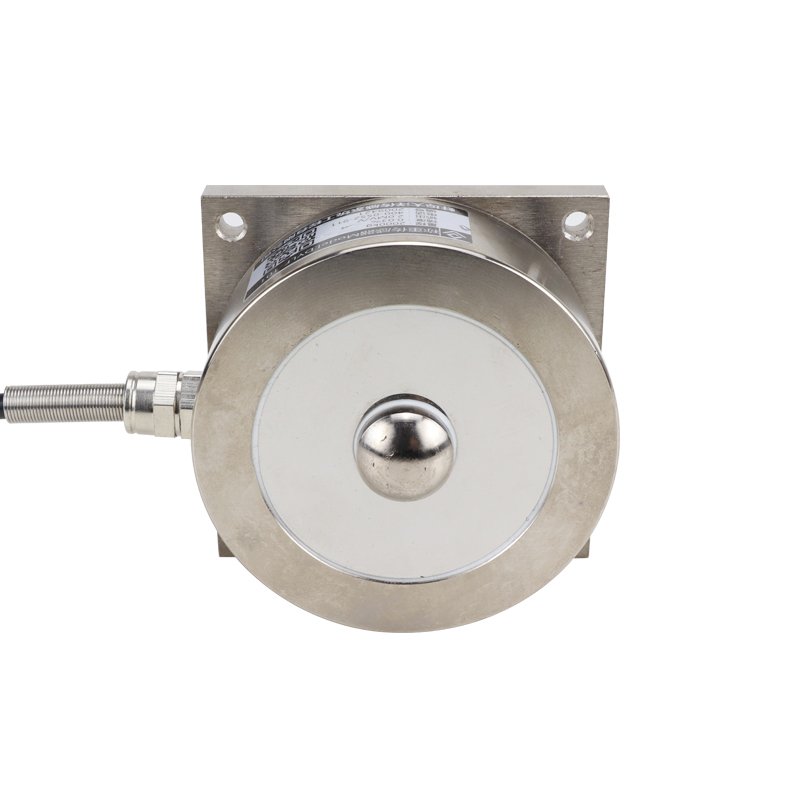

Detail Pictures



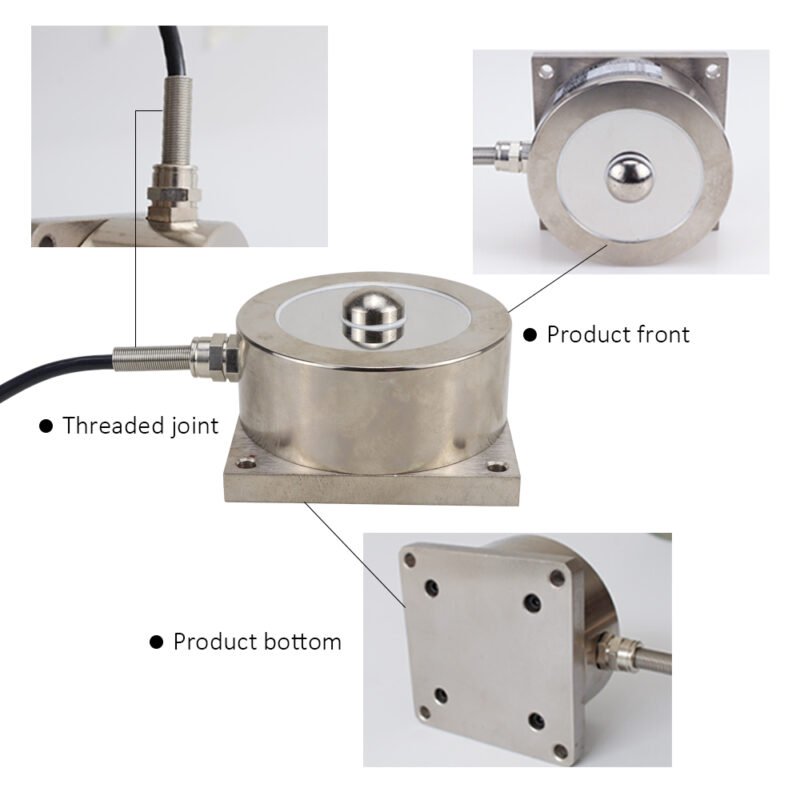

compression load cell

Product Parameters

load cell transducers



Parameter Table
Measuring Range 0-50T Material Alloy steel
Output Sensitivity 2.0±0.05mV/V Resistance 700/1400Ω
Zero Output ±1%F.S. Insulance ≥5000MΩ/100VDC
Non-Linear 0.05%F.S. Operating voltage 5-15v
Hysteresis 0.05%F.S. Operating temperature range -20-80℃
Repeatability 0.03%F.S. Safety overload 150%
Creep(30min) 0.03%F.S. Ultimate overload 200%
Temp.effect on output 0.03% F.S. / 10ºC Cable specification Φ5X3m/5m
Temp.effect on zero 0.03% F.S. / 10ºC Cable ultimate tension 10kg
Response frequency 10kHz TEDS

Spoke load cell

Measuring Range(kg) ΦA B ΦC D E K L SR 4-ΦJ
0.2-0.7t 72 41 16 8 25 62 72 13 4.6
1-8t 88 53 20 10 34 75 88 20 5.6
10-15t 114 70 25 13 46 96 114 25 6.5
20-50t 145 91 32 16 60 120 145 30 11
