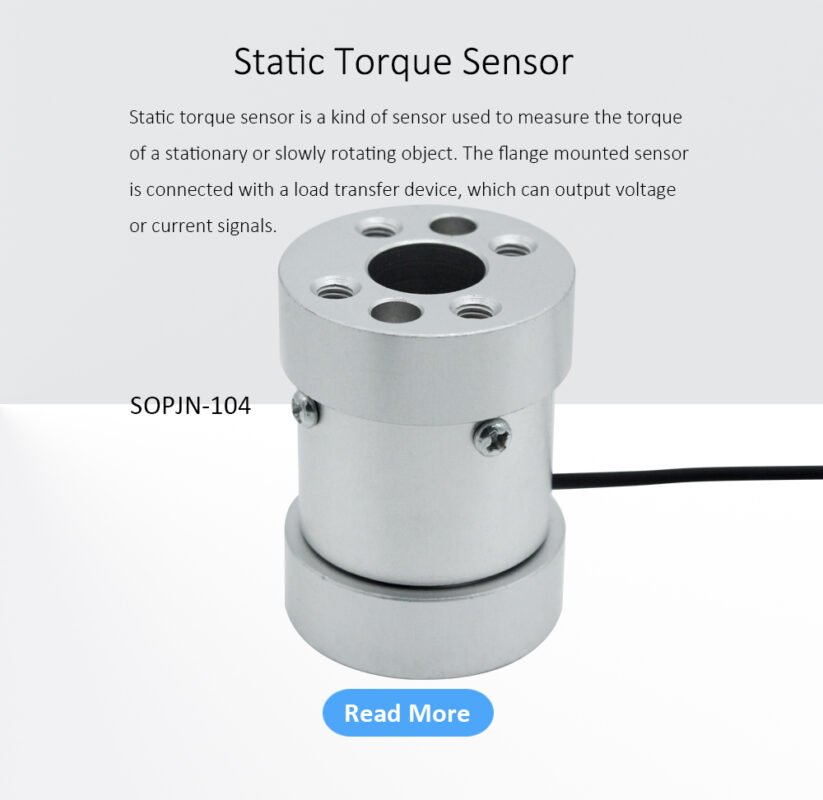

SOPJN-104 Professional High Accuracy Static Torque Sensor Torque Transducer Micro Load Cell Dynamometer 150N.m for Torque Wrench
ProductFeatures
1、Static torque sensor is a kind of sensor used to measure the torque of a stationary or slowly rotating object.
2、The flange mounted sensor is connected with a load transfer device, which can output voltage or current signals.
3、Static torque sensors can be used in various industrial fields, such as electric screwdrivers, torque wrenches, wind turbines and so on.
4、Small size, light weight and convenient installation and use.
3、Static torque sensors can be used in various industrial fields, such as electric screwdrivers, torque wrenches, wind turbines and so on.
4、Small size, light weight and convenient installation and use.
5、High detection accuracy, good stability and strong anti-interference ability.
Product Parameters
| Parameter Table | |||
| Capacity | 0-150N. m | Material | Aluminum alloy/Alloy steel |
| Output Sensitivity | 2.0mV/V | Impedance | 350Ω |
| Zero Output | ±2%F.S. | Insulance | ≥5000MΩ/100VDC |
| Non-Linearity | 0.05%F.S. | Operating Voltage | 5-15V |
| Hysteresis | 0.05%F.S. | Operating Temperature Range | -20-80℃ |
| Repeatability | 0.05%F.S. | Safe Overload | 150% |
| Creep(30min) | 0.05%F.S. | Ultimate Overload | 200% |
| Temp Effect on Output | 0.05%F.S./10℃ | Cable Specifications | φ3x2m |
| Temp Effect on Zero | 0.05%F.S./10℃ | Cable Ultimate Pull | 10kg |
| Response Frequency | 10kHz | TEDS | |
