SOPHLJ Cantilever Beam Weighing Force Sensor For Industrial Scale
Product Description
It is Also known as shear beam weighing sensor, its shape is mostly rectangular, and the strain zone is located in the middle of the sensor. The cantilever beam weighing sensor has the characteristics of simple structure, easy installation, reliable use, long service life, and high cost-effectiveness.
Cantilever beam weighing sensors are used in highway scales such as automobile scales, main axle load gauges, small weighing scales, and flat scales in industrial scales Platform scales, steel cylinder scales, and other fields have been widely used, generally using three or four sensors as a group.
Product features
1.Wide range of capacities from 0 to 5T
3.High structural strength 、 convenient installation and use.

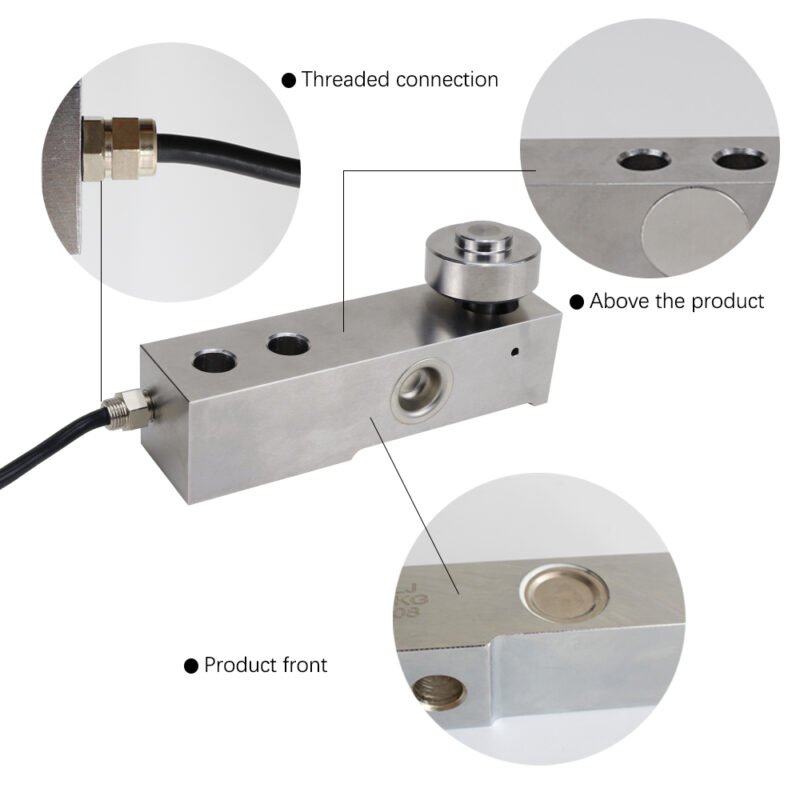

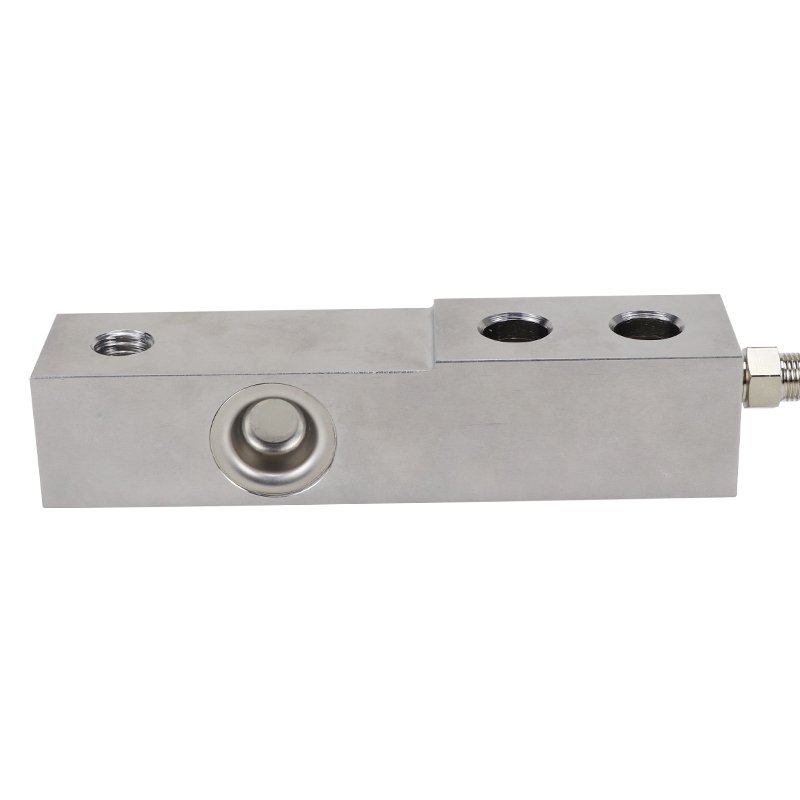

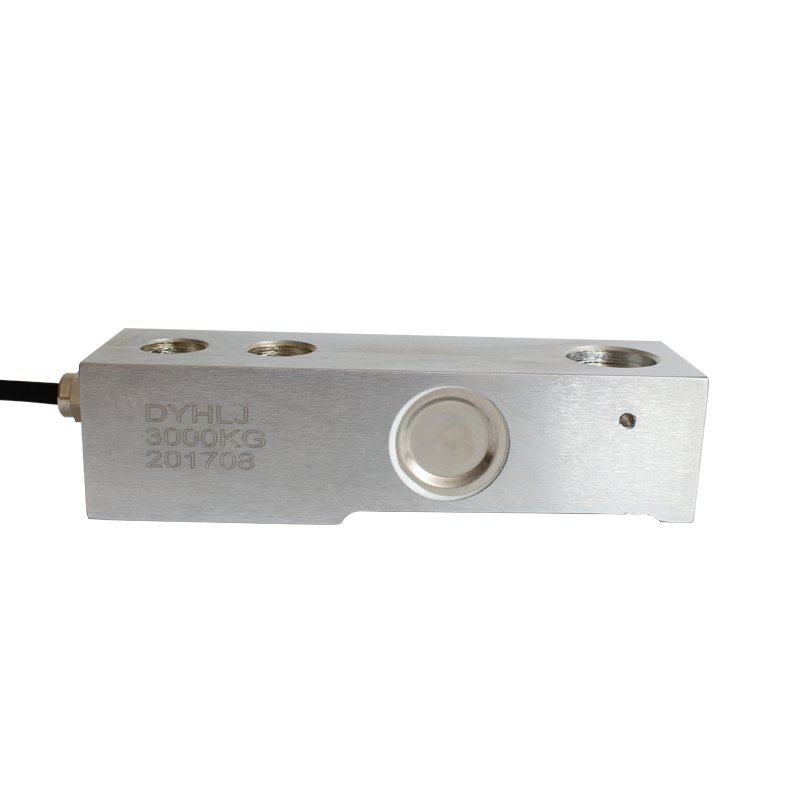

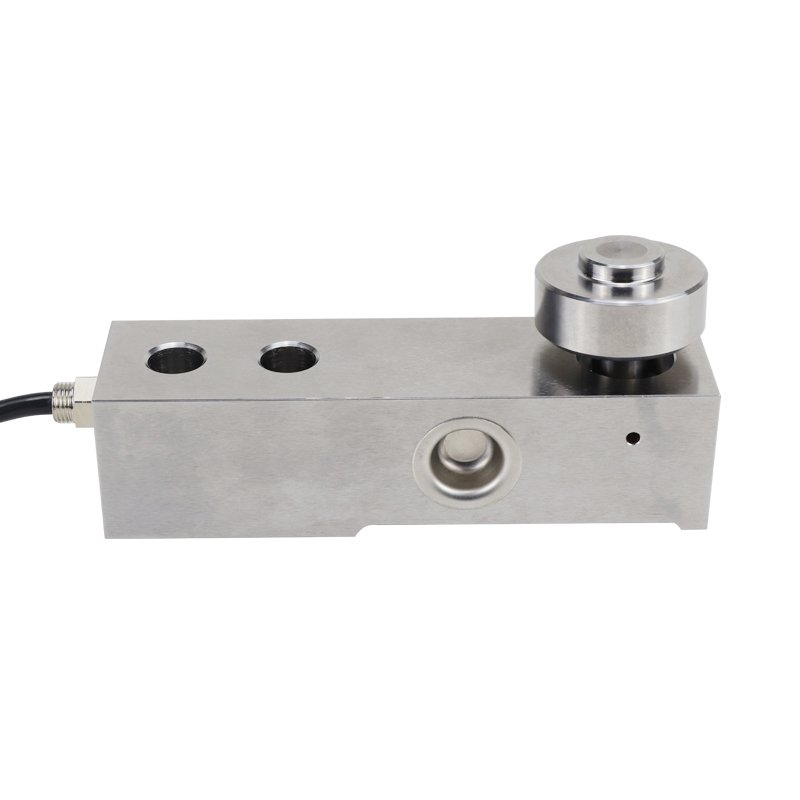

Detail Pictures
Product Parameters
| Parameter Table | |||
| Measuring Range | 0-5T | Material | Alloy steel/Stainless steel |
| Output Sensitivity | 2.0±0.05mV/V | Resistance | 350Ω |
| Zero Output | ±1%F.S. | Insulance | ≥5000MΩ/100VDC |
| Non-Linear | 0.03%F.S. | Operating voltage | 5-15v |
| Hysteresis | 0.03%F.S. | Operating temperature range | -20-80℃ |
| Repeatability | 0.02%F.S. | Safety overload | 150% |
| Creep(30min) | 0.03%F.S. | Ultimate overload | 200% |
| Temp.effect on output | 0.03% F.S. / 10ºC | Cable specification | Φ5X3m |
| Temp.effect on zero | 0.05% F.S. / 10ºC | Cable ultimate tension | 10kg |
| Response frequency | 10kHz | TEDS | optional |
Application
