SOP094 Weighing transmitter SOP094 communicates RS485 and RS232
Product Features
1.SOP094 has a DC voltage of 24 V and a power of less than 3 w.
2.Multi channel input, nine channel acquisition at the same time.
3.With two-way communication RS485 and Rs232
4.The acquisition value can be read, calibrated and cleared with the help of serial port.
5.Self calibration function, when using TEDs sensor of our company, it is free from calibration operation.

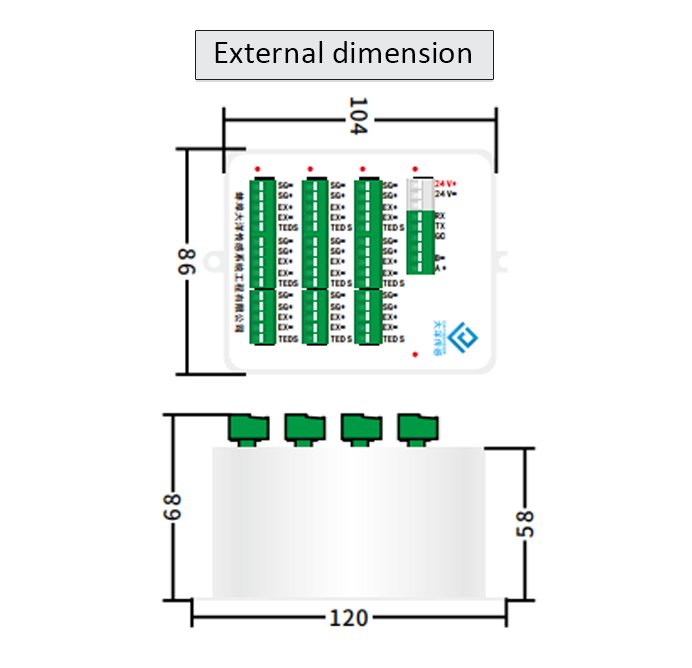

External dimensions
Connection method（usage settings）
Product parameters
| Parameters Table | |
| Power supply | 24VDC |
| Power | ＜5W |
| Number of channels | 9 roads |
| Collection speed | 10,20,80,320 times /s |
| Internal graduation | 20 digits |
| Sensor power supply | 5V |
| Signal input range | ±20mV |
| Communication | RS485、RS232 |
| Protocol | Modbus RTU protocol and user-defined active sending protocol |

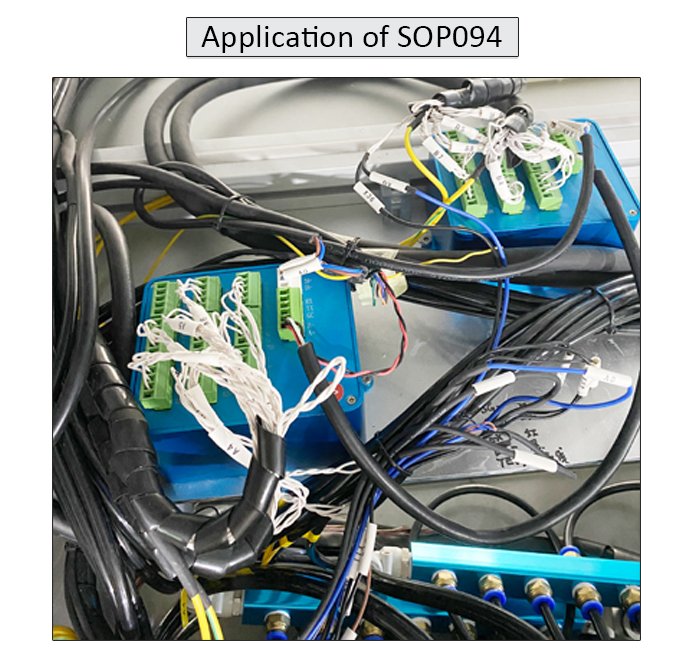

Application

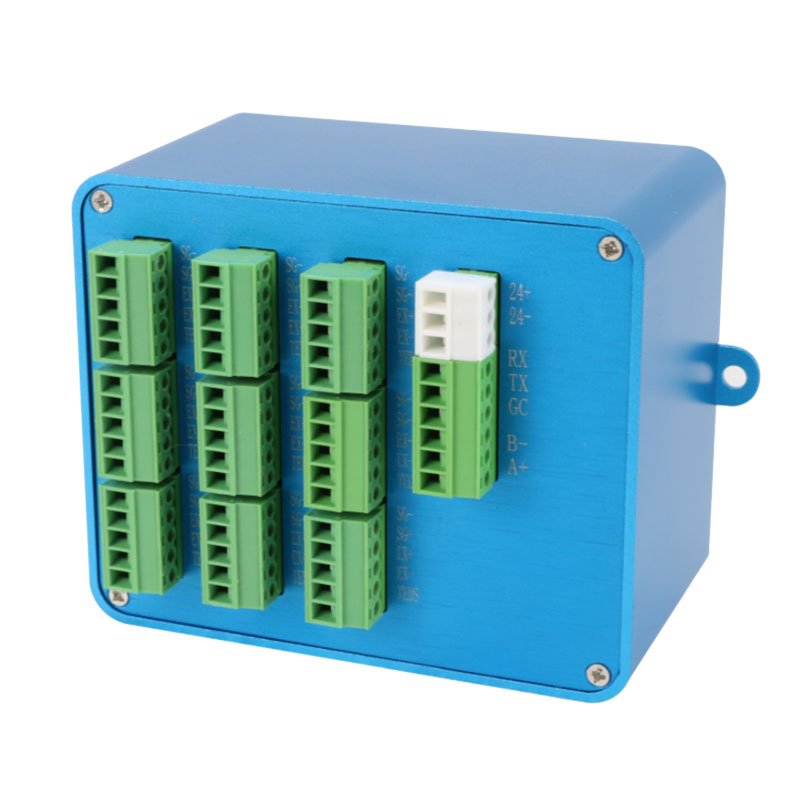

Product details
