Features
- Available capacity: 2T
- Alloy steel construction
- Metric mounting holes
- 5 meter cable
Applications
- Industrial machinery
- Warehouse scales
- Truck scales

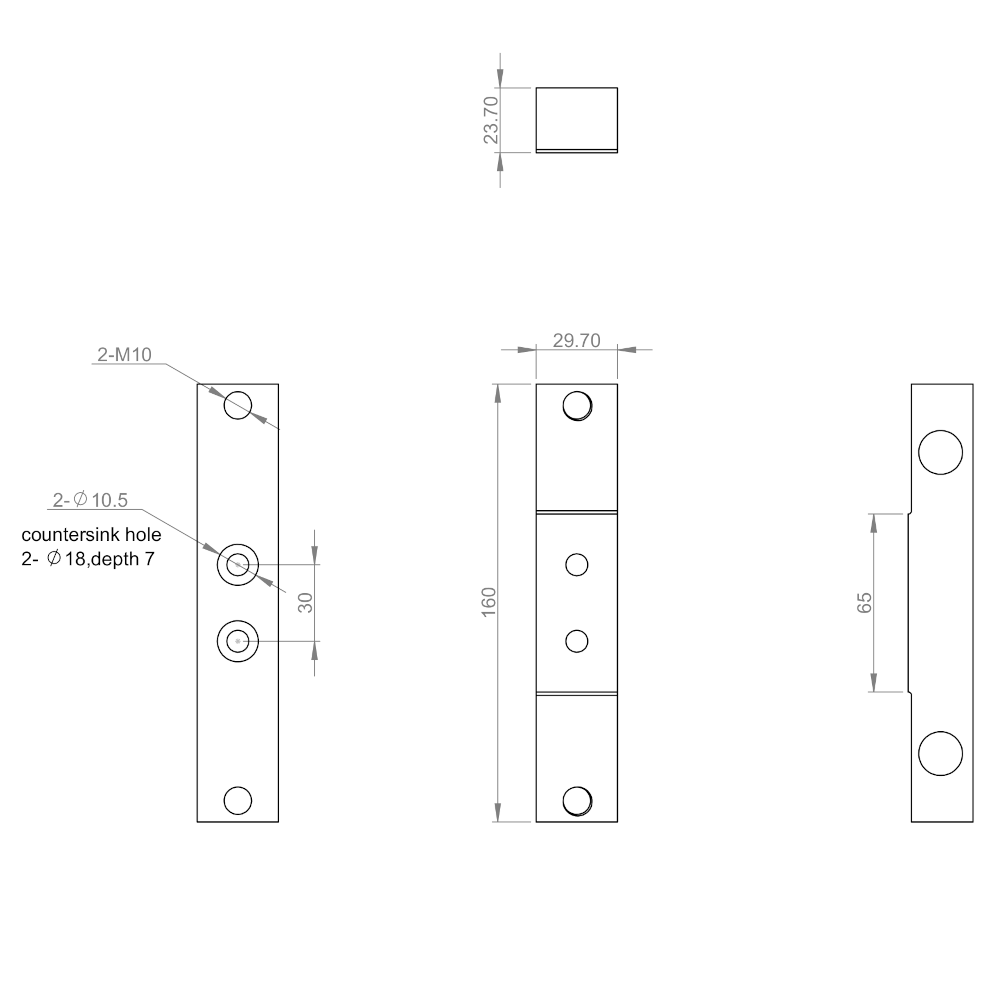

Dimensions
Specifications
| Capacity | 2T |
| Rated output | 2.0±0.05mV/V |
| Accuracy class | 0.05%F·S
0.03%F·S (Optional) |
| Combined error | ≤± 0.03%F·S |
| Creep | 0.02 %F·S/30min |
| Temp. effect on sensitivity | 0.0017%F·S/℃ |
| Temp. effect on zero | 0.005%F·S/℃ |
| Zero balance | ±1.0 %F·S |
| Input resistance | 365± 5 ohm |
| Output resistance | 350±3ohm |
| Insulation resistance | 5000 MΩ(50V) |
| Compensated temp. range | -10～+40℃ |
| Operating temp. range | -35～+80 ℃ |
| Excitation voltage | 5～12V |
| Safe overload | 150 %F·S |
| Load cell material | Alloy steel |
| Connecting cable | Φ5.0×3.5m |
