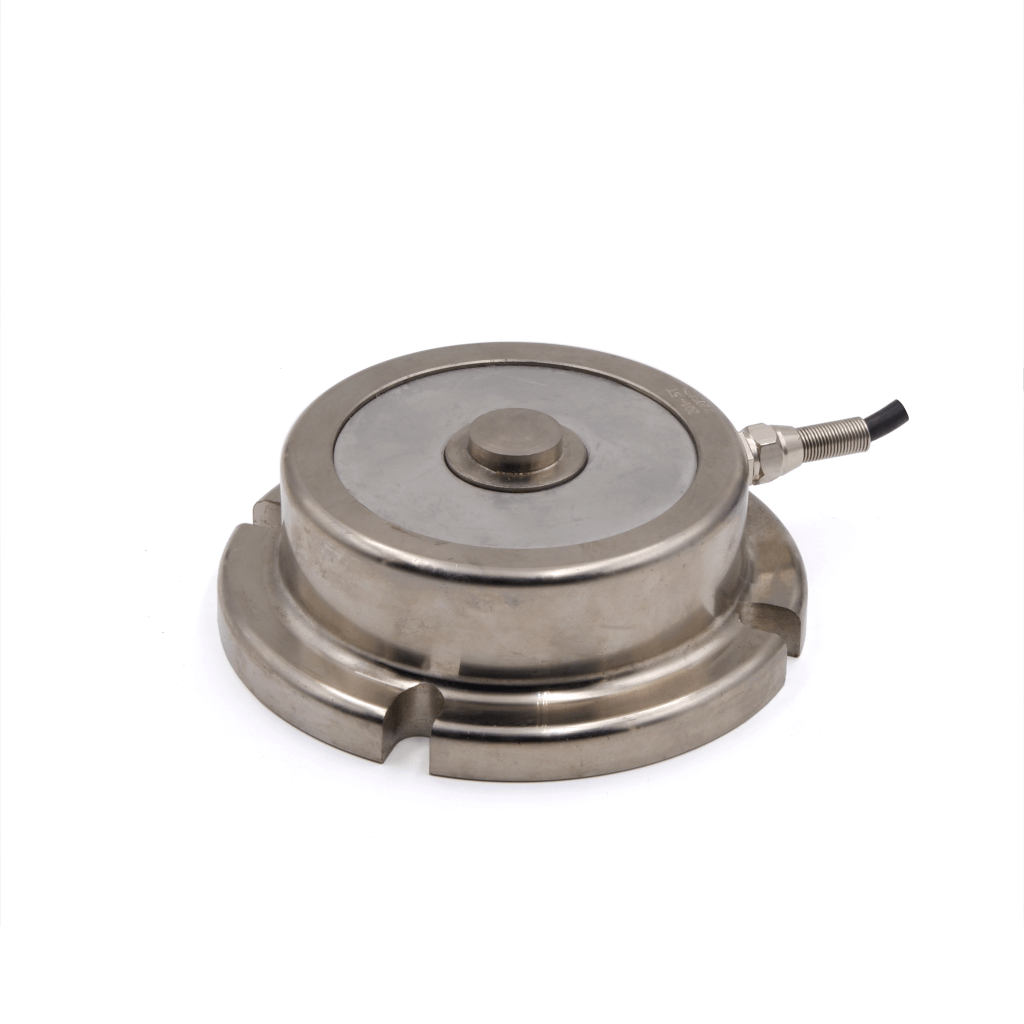

Features
- Available capacity: 1T, 2T, 3T, 5T, 10T, 15T, 20T, 30T
- Alloy steel construction
- IP Rated for harsh environments
Sizes and mounting holes vary depending on the capacity, see datasheet for more details.
Applications
- Industrial machinery
- Truck scales
- Tank scales

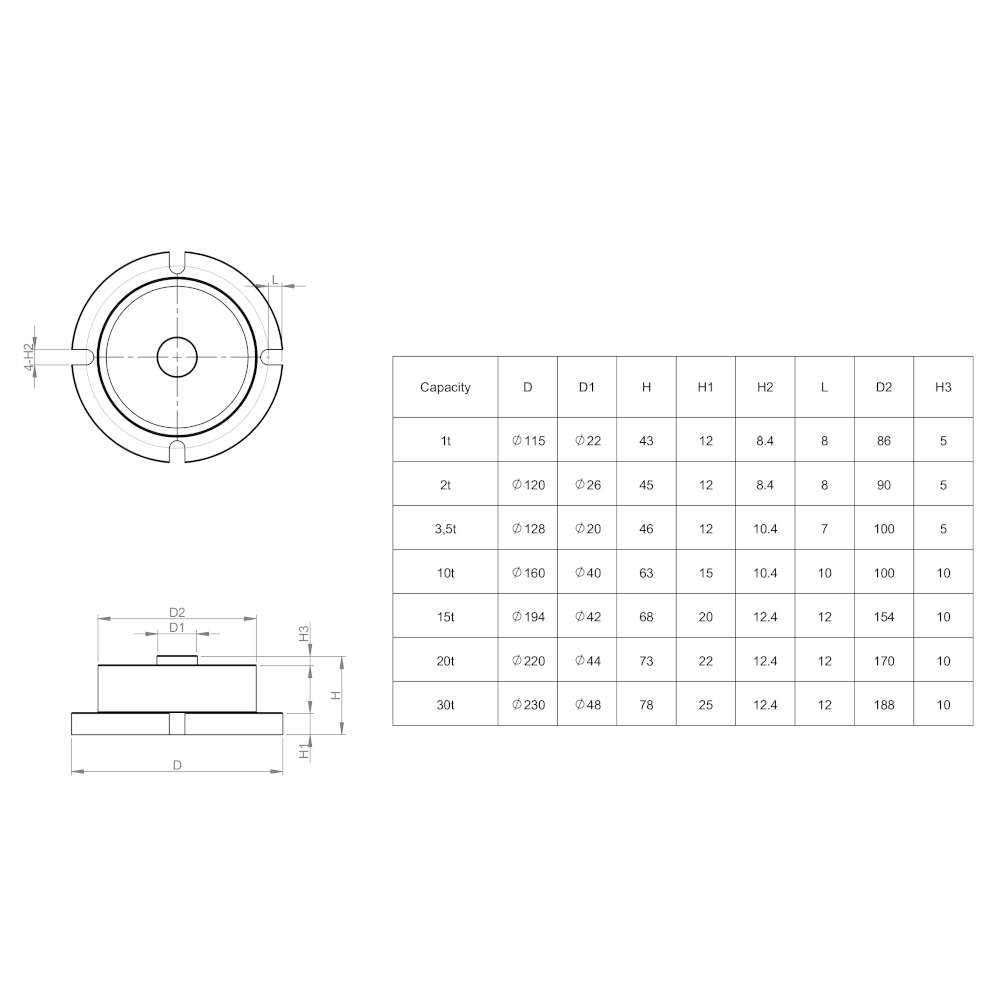

Dimensions
Specifications
| Capacity | 1T, 2T, 3T, 5T, 10T, 15T, 20T, 30T |
| Rated output | 2.0±0.05mV/V |
| Accuracy class | 0.05 %F·S
0.03 %F.S (Optional) |
| Combined error | ≤± 0.030 %F·S |
| Creep | 0.015 %F·S/30min |
| Temp. effect on sensitivity | 0.016 %F·S/℃ |
| Temp. effect on zero | 0.002 %F·S/℃ |
| Zero balance | ±1.0 %F·S |
| Input resistance | 725±8 ohm |
| Output resistance | 700±3 ohm |
| Insulation resistance | 5000 MΩ(50V) |
| Excitation voltage | 10～18V |
| Compensated temp. range | -10～+40℃ |
| Operating temp. range | -35～+80 ℃ |
| Safe overload | 150 %F·S |
| Ultimate overload | 200 %F·S |
| Load cell material | Alloy steel |
| Connecting cable | Φ5.7x6m |
