Features
- Available capacity: 0.05T – 3T
- Alloy steel construction
- Optional accessories: Rubber feet
Sizes and mounting holes vary depending on the capacity, see datasheet for more details.
Applications
- Platform scales
- Silo or Tank scales
- Hopper scales

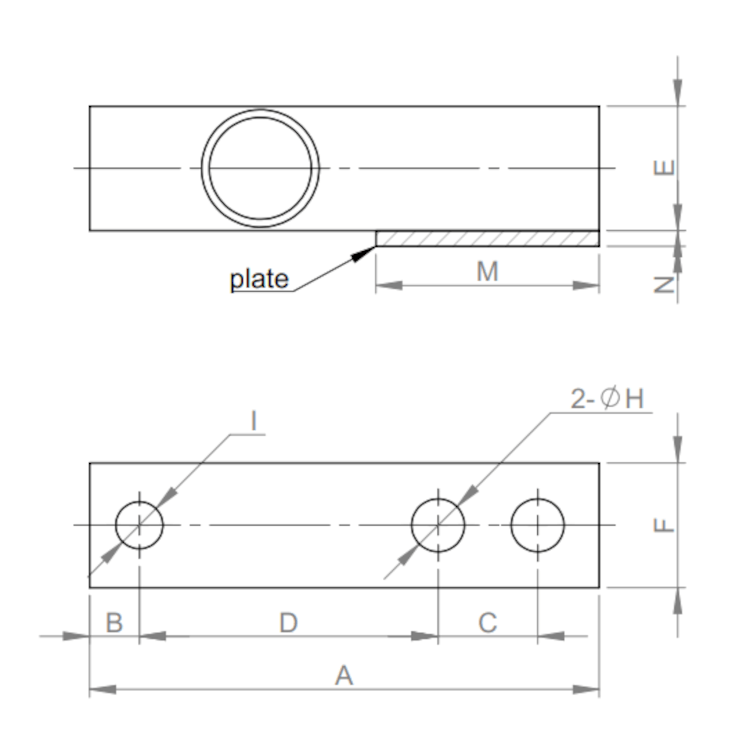

Dimensions
Specifications
| Capacity | 50kg, 100kg, 200kg, 250kg, 500kg, 1000kg, 2000kg, 3000kg |
| Rated output | 2.0±0.004mV/V |
| Accuracy class | 0.05% F·S(Standard)
0.03% F·S(Optional) |
| Combined error | ≤± 0.020 % F·S |
| Creep | 0.02 %F·S/30min |
| Temp. effect on sensitivity | 0.0016%F·S/℃ |
| Temp. effect on zero | 0.002%F·S/℃ |
| Zero balance | ±1.0 %F·S |
| Input resistance | 365± 10 ohm |
| Output resistance | 350±3 ohm |
| Insulation resistance | 5000 MΩ(50V) |
| Excitation voltage | 5~12VDC |
| Compensated temp. range | -10~+40℃ |
| Operating temp. range | -35~+80 ℃ |
| Safe overload | 150 %F·S |
| Ultimate overload | 200%F·S |
| Load cell material | Alloy steel (Standard)
Stainless steel (Optional) |
| Connecting cable | Φ5.7 x2m |
