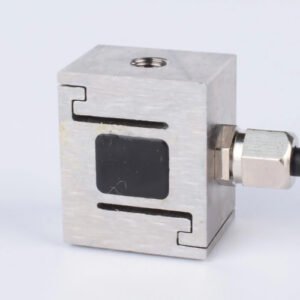

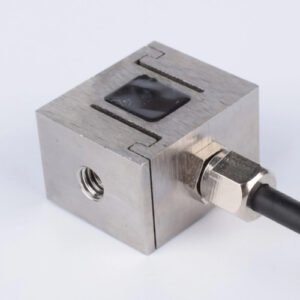

Features
- Available capacity: 20KG, 30KG, 50KG, 100KG, 250KG, 500KG, 750KG, 1T, 1.5T, 2T, 3T, 5T, 7.5T, 10T, 20T, 30T
- Alloy steel or stainless steel construction
- Optional accessories: Rod-ends
Sizes and mounting holes vary depending on the capacity, see datasheet for more details.
Applications
- Hanging or crane scales
- Universal testing machines
- Hopper scales
Dimensions
Specifications
| Capacity | 20KG, 30KG, 50KG, 100KG, 250KG, 500KG, 750KG, 1T, 1.5T, 2T, 3T, 5T, 7.5T, 10T, 20T, 30T |
| Rated output | 2.0±0.004mV/V |
| Accuracy class | 0.05%F·S
0.03 %F·S (Optional) |
| Combined error | ≤± 0.030 %F·S |
| Creep | 0.02 %F·S/30min |
| Temp. effect on sensitivity | 0.003 %F·S/℃ |
| Temp. effect on zero | 0.005 %F·S/℃ |
| Zero balance | ±1.0 %F·S |
| Input resistance | 365± 5ohm |
| Output resistance | 350±3 ohm |
| Insulation resistance | ≥5000 MΩ(50V) |
| Excitation voltage | 10~15VDC |
| Compensated temp. range | -10~+40℃ |
| Operating temp. range | -35~+80 ℃ |
| Safe overload | 150 %F·S |
| Ultimate overload | 200 %F·S |
| Load cell material | Alloy steel
Stainless steel |
| Connecting cable | 20kg-2tΦ5.7×3.5m 2.5-30tΦ5.7x6m |
