Features
- Available capacity: 2T, 3T, 5T
- Alloy steel or Stainless steel construction
- Mounting holes on the bottom of the load cell
Applications
- Industrial machinery
- Truck scales
- Tank scales

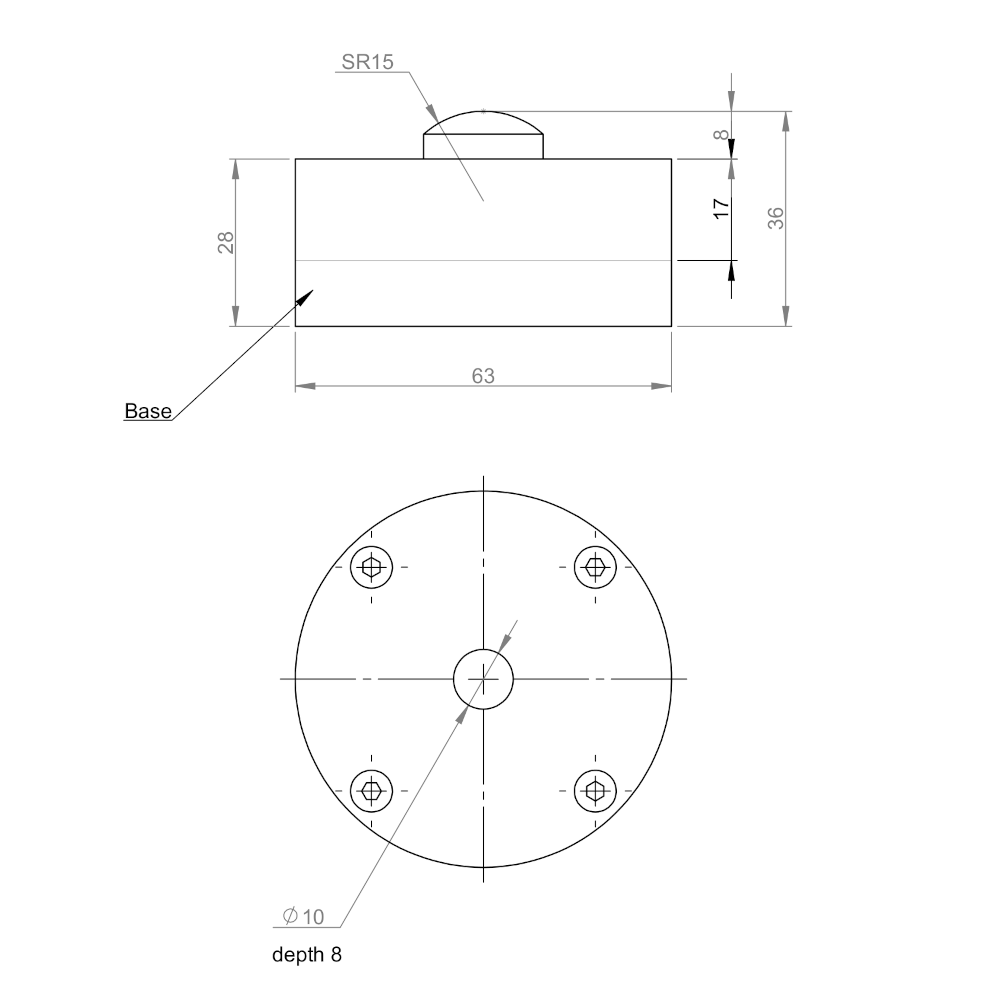

Dimensions
Specifications
| Capacity | 2T, 5T |
| Rated output | 2.0±0.004mV/V |
| Accuracy class | 0.05 %F·S
0.03 %F·S (Optional) |
| Combined error | ≤± 0.030 %F·S |
| Creep | 0.05 %F·S/30min |
| Temp. effect on sensitivity | 0.0017 %F·S/℃ |
| Temp. effect on zero | 0.05 %F·S/℃ |
| Zero balance | ±1.0 %F·S |
| Input resistance | 725±5 ohm |
| Output resistance | 700±5 ohm |
| Insulation resistance | 5000 MΩ(50V) |
| Excitation voltage | 5~12V |
| Compensated temp. range | -10~+40℃ |
| Operating temp. range | -30~+80 ℃ |
| Safe overload | 150 %F·S |
| Ultimate overload | 200 %F·S |
| Load cell material | Alloy steel Stainless steel |
| Connecting cable | Φ5.7x8m |
