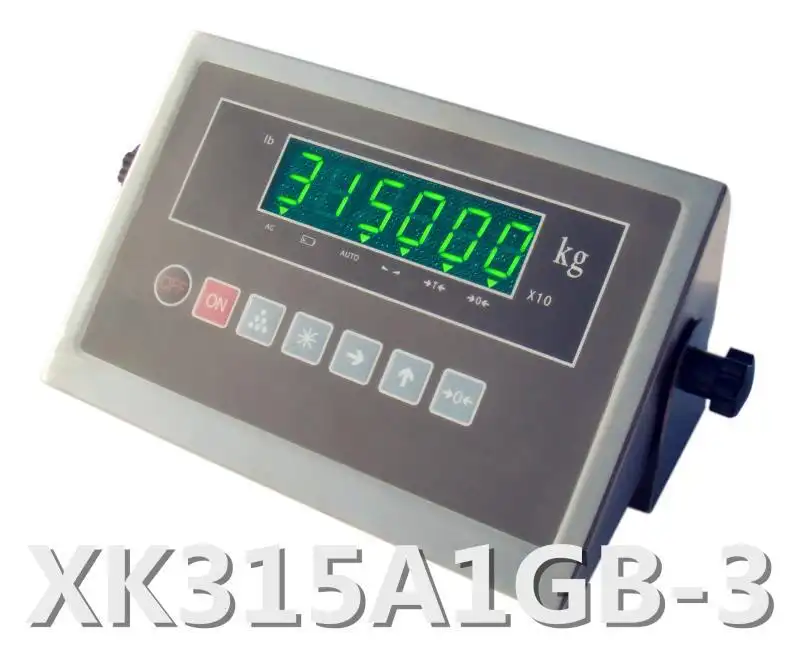

Load cells, Subminiature force transducers, miniature load cells, Intelligent load cells is made strictly following international standards. Designed by innovative designers and controlled by QC inspectors, High Accuracy Green LED XK315A1GB-3 WIFI Weight Weighbridge Controller Weighing Indicator has an attractive appearance and can withstand the test of time. With those excellent characteristics, it will bring much convenience to users.
Rated Load : 99999
Accuracy : 1
Type : weighing indicator, Floor Scale, Truck Scale, Bench Scale, Mechanical Scale
Shipping: Support Sea freight · Land freight
| Housing | Stainless steel |
| Display | 6-digit 20.2mm green LED |
| Dimensions | 260×222×161mm |
| Weight | 2.2kg |
| Inside battery | 6V 2.8AH |
| Applications | Electronic platform scale, weighing scale, etc. |
Features
| • 20 hours of full charge battery operation |
| • Drive up 4X350Ω or 8X700Ω load cell |
| • Manual/Automatic accumulation |
| • Programmable zero tracking |
| • Programmable digital filter |
| • Selectable kg and lb |
| • Accuracy can be increased ten times |
| • Hold function |
| • Animal weighing |
| • Counting function |
| • Connect with Mini-printer |
Connection type
• RS-232 serial interface
• RS485 serial interface
• Bluetooth
• WIFI
• USB
<
Optional
• Two / four set point function
• 4-20mA analog current output function
• Mechanical scale
