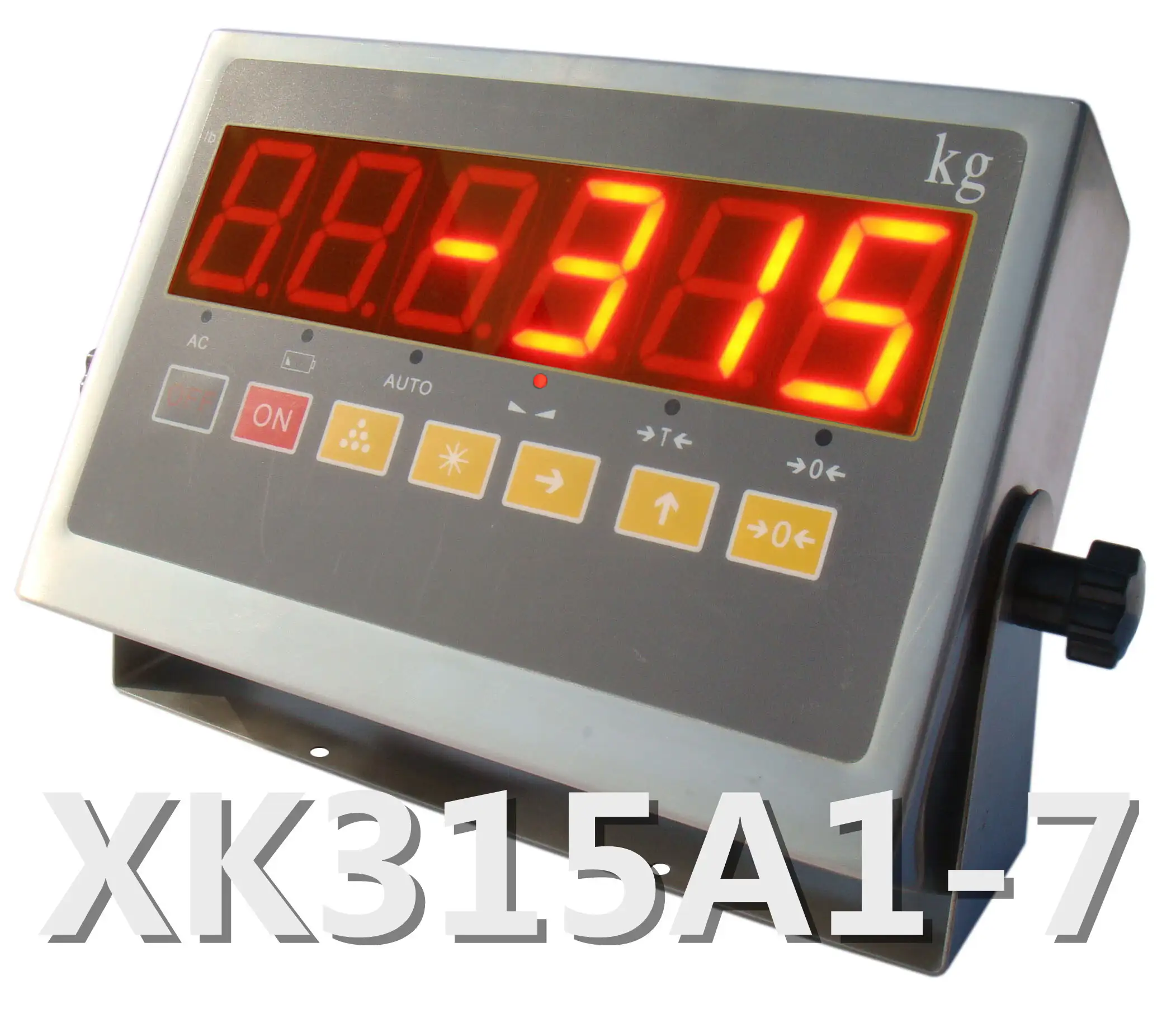

Characterized by those practical and multi-functional features,XK315A1-7 Red Led Industrial Stainless Steel Weighing USB Scale Indicator for weighing scale indicator for weighing scale has been approved to be used in the field(s) of Weighing Scales.It is expected that more and more people will recognize it for its strong performance and also more benefits will be brought by it to people in different fields.
Specifications
| Version number | 34.x |
| Accuracy class | III |
| Maximum number of verification scale intervals | nind = 3000 |
| Divisions | 3000 – 15000 |
| Load cell excitation voltage | Uexc = 5 V |
| Minimum input voltage | Umin = 0.5 Mv |
|
Minimum input voltage per verification scale interval
|
Δumin = 1 Μv |
| Minimum/maximum load cell impedance | 87 Ω to 1000 Ω |
| Fraction of mpe | pind = 0.5 |
| Cable connection | 4 wires |
|
Maximum value of cable length per wire cross section
|
(L/A)max = 150 m/mm2 |
| Maximum number of load cells | 4 x 350 Ω load cells 8 x 700 Ω load cells |
|

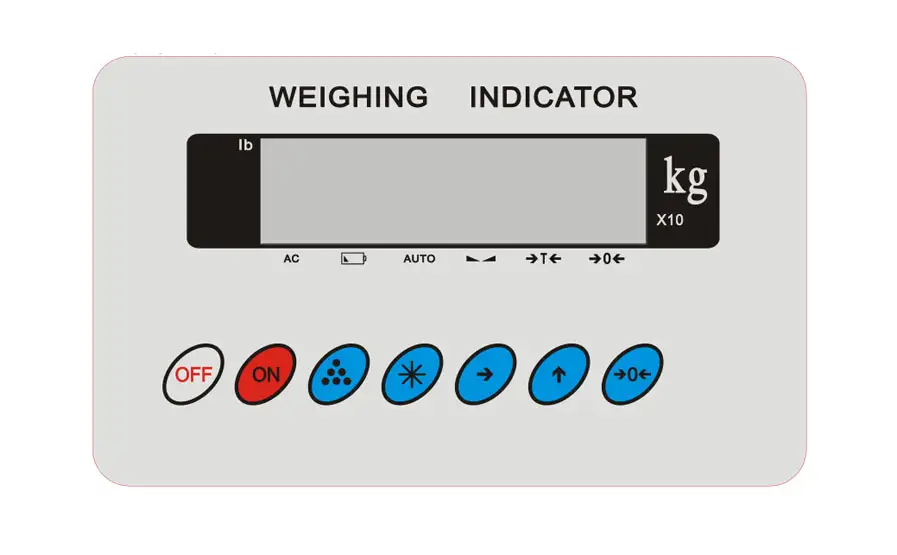

Display
|
6-bit Display: 0.8 inches LED High Resolution (×10) display Weight unit in kg / lb |
| Display resolution | 1/2/5/0.1/0.2/0.5/0.01/0.02/0.05/0.001/ 0.002/0.00510/20/50/100/200/500 0.10/0.20/0.50/0.010/0.020/0.050 |
| Weighing modes | Gross and net weight weighing Manual and automatic weight accumulation |
| Serial interface | USB interface with continuous Modbus ASCII data output Baud rate 1200, 2400, 4800, 9600 |
| External AC adapter | 100-240VAC 50/60Hz |
| Rechargeable internal battery | XK315A1XX-USB: 6V/4AH XK315A1RB-USB: 6V/2.8AH |
| Full charge battery operation | XK315A1XX-USB: 30 hours XK315A1RB-USB: 20 hours |
| Full charge battery recharge time | 12 hours |
| Operating temperature | –10 °C to +40 °C |
| Storage temperature | –25 °C to +55 °C |
| Relative humidity |
10% to 85% non-condensing
|
|
Housing
|
XK315A1XX-USB: plastic XK315A1RB-USB: stainless steel |
| Dimensions | XK315A1XX-USB: 255 x 170 x 130mm XK315A1RB-USB:275 x 160 x 80 mm |
|
Weight
|
XK315A1XX-USB: 1.5kg XK315A1RB-USB: 1.6kg |
| Dimensions | 265×162×74mm |
| Inside battery | 6V 2.8AH |
| Applications | Electronic platform scale, weighing scale, etc. |
Features
| • 20 hours of full charge battery operation |
| • Drive up 4X350Ω or 8X700Ω load cell |
| • Manual/Automatic accumulation |
| • Programmable zero tracking |
| • Programmable digital filter |
| • Selectable kg and lb |
| • Accuracy can be increased ten times |
| • Hold function |
| • Animal weighing |
| • Counting function |
| • Connect with Mini-printer |
Connection type
• RS-232 serial interface
• RS485 serial interface
• Bluetooth
• WIFI
• USB
（Only one of the instrument’s link methods can be selected, and the price is different for each method）
