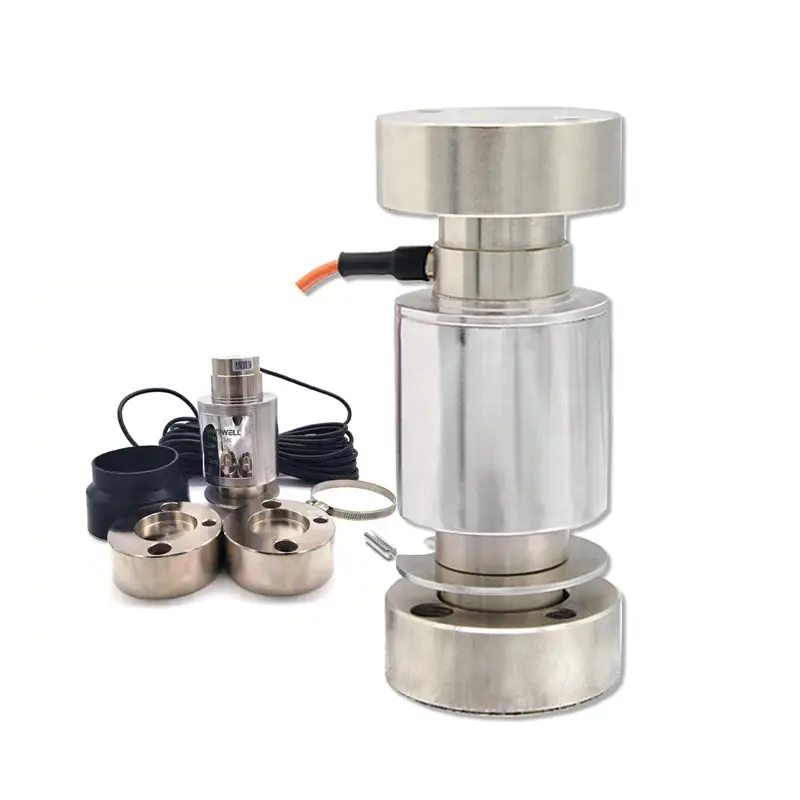

Santwell / RWS01 / 트럭용 계량 압축형 고온 중량 센서 / 컬럼 장력 로드셀

Ningbo Santwell Import & Export Co., Ltd is excited that we will make our CMK OIML 40t 100 tons Zemic Compression high temperature weight sensor column tension Type load cell for trucks scales widely known to the market. The product is the result of our hardworking staff and strong technical capabilities. It is delicately designed to comply with the industry standard. Ningbo Santwell Import & Export Co., Ltd will always be led by market demand and respect customers’ wishes. Based on the feedback given by customers, we will make changes accordingly in our product development so as to manufacture the most satisfying and profitable products.

Model Number:	CMK	Type:	Load Cell
Place of Origin:	Zhejiang, China	Brand Name:	SantWell
Usage:	Truck scale	Theory:	/
Output:	700Ω/775Ω	Description:	Load cell
Rated output:	10t,20t, 30t, 40t,50t	Sensitivity:	2.0000±0.002mV/V
Total Error:	±0.02%F.S	Creep(30minutes):	±0.02%F.S
Recommended Excitation Voltage:	5V~18V (AC or DC)	Maximum Excitation Voltage:	24V(AC or DC)
Zero Balance:	±1%F.S	Safe Over load:	150%F.S
Ultimate Overload:	200%F.S	Working temperature:	(-30~70)℃

Add to Wishlist

State-of-the-art technologies have been utilized to develop and manufacture CMK OIML 40t 100 tons Zemic Compression high temperature weight sensor column tension Type load cell for trucks scales.Having been tested multiple times,Santwellis able to give out its best effect in the field(s) of Force Sensors & Load Cells.

Specification: 20T, 30T, 40T, 50T

shipping: Support Sea freight · Land freight

Customization: Customized logo (Min. Order: 10 Pieces),Customized packaging (Min. Order: 100 Pieces),Graphic customization (Min. Order: 100 Pieces)

Technical Parameter

Rated Load	10t,20t,25t,30t,40t
Sensitivity	2.0000±0.002mV/V
Total Error	±0.02%F.S
Creep(30minutes)	±0.02%F.S
Recommended Excitation Voltage	5V~18V(AC or DC)
Maximum Excitation Voltage	24V(AC or DC)
Zero Balance	±1%F.S
Input Impedance	775±10Ω
Output Impedance	700±5Ω
Insulation Impedance	≥5000MΩ
Safe Overload	150%F.S
Ultimate Overload	200%F.S
Operating Temperature Range	(-30~+70)℃
Compensated Temperature Range	(-20~+60)℃
Temperature Effect On Load	±0.02%F.S/10℃
Temperature Effect On Zero	±0.02%F.S/10℃
Construction	Alloy Steel
Protection Class	IP67&IP68
Citation	GB/T7551-2008/OIML R60

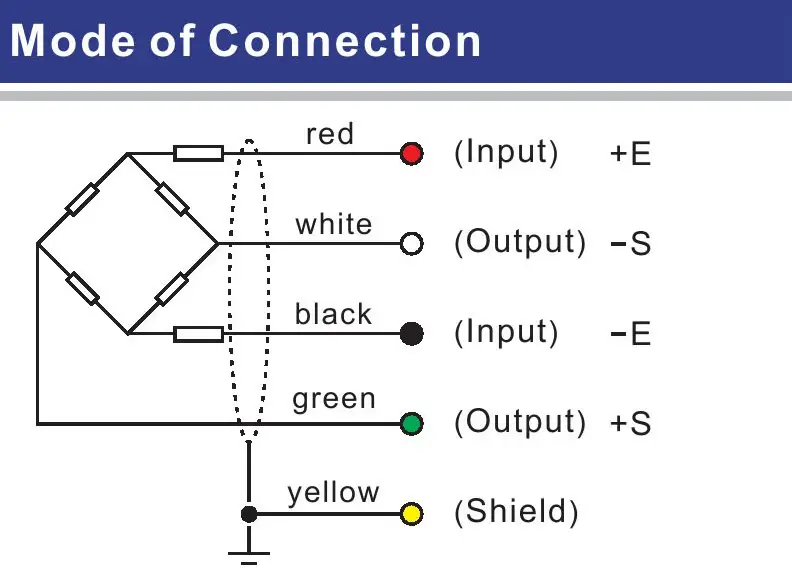

Mode of Connection	Input+:Red Input-:Black Output+:Green Output-:White

AVAILABILITY: In stock

Model Number:	CM14G	Type:	/
Place of Origin:	Zhejiang, China	Brand Name:	santwell
Usage:	/	Theory:	/
Output:	/	Description:	/
Rated output:	10t,20t, 30t, 40t,50t	Sensitivity:	2.0000±0.002mV/V
Total Error:	±0.02%F.S	Creep(30minutes):	±0.02%F.S
Recommended Excitation Voltage:	5V~18V (AC or DC)	Maximum Excitation Voltage:	24V(AC or DC)
Zero Balance:	±1%F.S	Safe Over load:	150%F.S
Ultimate Overload:	200%F.S	Working temperature:	(-30~70)℃

Model Number:	CMC-(M)	Place of Origin:	Zhejiang, China
Brand Name:	SANTWELL	Usage:	PRESSURE SENSOR
Theory:	Resistance Sensor	Output:	Analog SENSOR
Rated Load:	10-40t	Sensitivity:	2.0000±0.002mV/V
Total Error:	±0.02%F.S	Creep(30minutes):	±0.02%F.S
Recommended Excitation Voltage:	5V~18V(AC or DC)	Maximum Excitation Voltage:	24V(AC or DC)
Zero Balance:	±1%F.S	Insulation Impedance:	≥5000MΩ
Safe Overload:	150%F.S	Utimate Overload:	200%F.S

Model Number:	CMRC3	Type:	Load Cell
Place of Origin:	Zhejiang, China	Brand Name:	SantWell
Usage:	Truck scale	Theory:	/
Output:	700/775Ω	Description:	Column sensor
Rated output:	10t,20t, 30t, 40t,50t	Sensitivity:	2.0000±0.002mV/V
Total Error:	±0.02%F.S	Creep(30minutes):	±0.02%F.S
Recommended Excitation Voltage:	5V~18V (AC or DC)	Maximum Excitation Voltage:	24V(AC or DC)
Zero Balance:	±1%F.S	Safe Over load:	150%F.S
Ultimate Overload:	200%F.S	Working temperature:	(-30~70)℃

Model Number:	CMTD	Place of Origin:	Zhejiang, China
Brand Name:	santwell	Usage:	PRESSURE SENSOR
Theory:	Resistance Sensor	Output:	Analog SENSOR
Rated Load:	10-50t	Sensitivity:	2.0000mV/V
Total Error:	±0.1%F.S	Creep(30minutes):	±0.02%F.S
Recommended Excitation Voltage:	5V~18V(AC or DC)	Maximum Excitation Voltage:	24V(AC or DC)
Zero Balance:	±1%F.S	Insulation Impedance:	≥5000MΩ
Safe Overload:	150%F.S	Utimate Overload:	200%F.S

Model Number:	CMAX	Type:	Load Cell
Place of Origin:	Zhejiang, China	Brand Name:	santwell
Rated Load:	15t,20t	Sensitivity:	2.0000±0.002mV/V
Total Error:	±0.02%F.S	Creep(30minutes):	±0.02%F.S
Recommended Excitation Voltage:	5V~18V(AC or DC)	Maximum Excitation Voltage:	24V(AC or DC)
Zero Balance:	±1%F.S	Insulation Impedance:	≥5000MΩ
Safe Overload:	150%F.S	Utimate Overload:	200%F.S

Model Number:	QS-(M)	Place of Origin:	Zhejiang, China
Brand Name:	SANTWELL	Usage:	PRESSURE SENSOR
Theory:	Resistance Sensor	Output:	Analog SENSOR
Rated Load:	10t-50t	Sensitivity:	2.0000±0.002mv/v
Total Error:	±0.03%F.S	Creep(30 minutes):	±0.02%F.S
Recommended Excitation Voltage:	5V~18V(AC or DC)	Maximum Excitation Voltage:	24V(AC or DC)
Zero Balance:	±1%F.S	Insulation Impedance:	≥5000MΩ
Safe Overload:	150%F.S	UItimate Overload:	200%F.S
