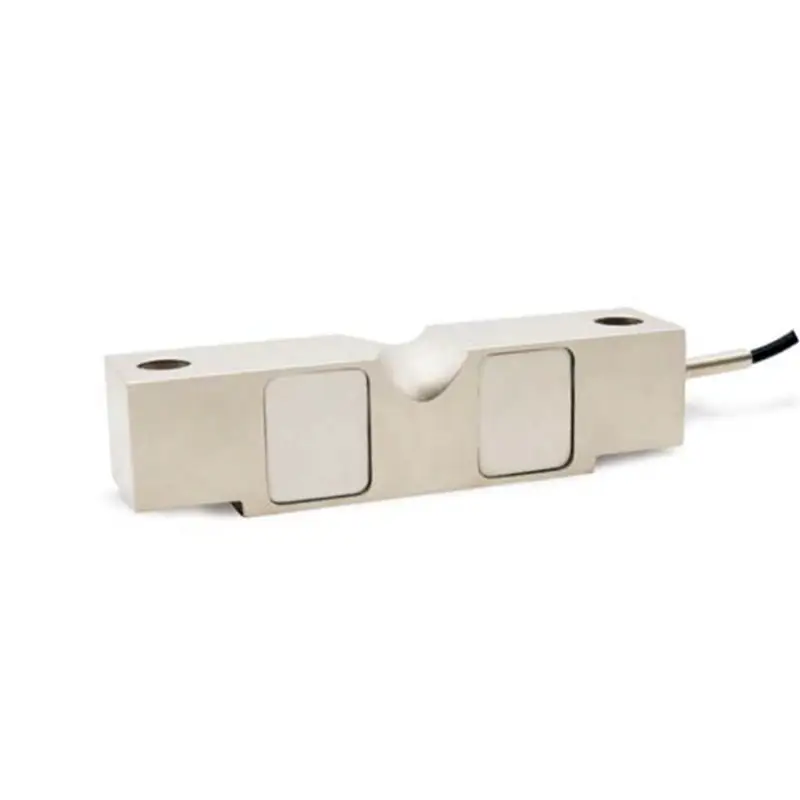

Santwell / QS-R / 휠 스케일 더블 엔디드 시어 빔 로드셀


Ningbo Santwell Import & Export Co., Ltd is reckoned for manufacturing and supplying QS-R IP67 Water Proof 5 -10 Ton Truck Railway Blending Weight Sensor Half Bridge Load Cell For Digital Scale that is manufactured using supreme quality materials. Based on scientific strategic decision-making, driven by strong operating capabilities, and driven by technology and R&D capabilities, the products developed and manufactured have clear positioning and goals. Get in touch with us – call, fill in our online form or connect via live chat, we are always happy to help.

Model Number: QS-R Type: Load Cell
Place of Origin: Zhejiang, China Brand Name: Santwell
Usage: Truck scale, railway scale, blending scale Theory: resistan

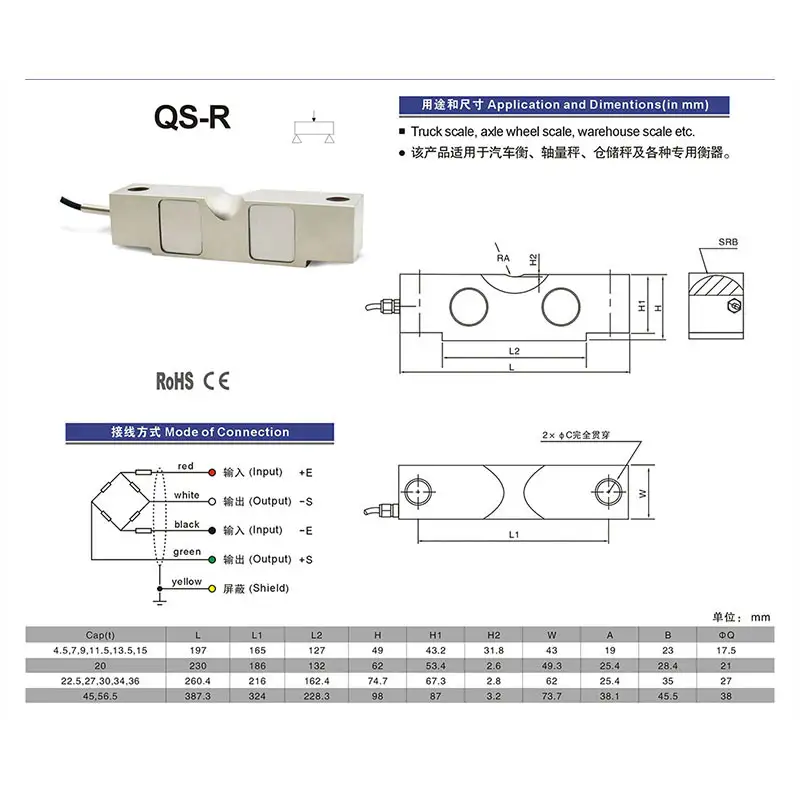

Output: Resistance strain Description: Double Ended Shear Beam
Rated Load: 10T Sensitivity: 2.0000±0.002mv/v
Total Error: ±0.03%F.S Creep(30 minutes): ±0.02%F.S
Recommended Excitation Voltage: 5V~18V(AC or DC) Maximum Excitation Voltage: 24V(AC or DC)
Zero Balance: ±1%F.S Insulation Impedance: ≥5000MΩ
Safe Overload: 150%F.S UItimate Overload: 200%F.S
















Share it:

Since established, we have been emphasizing the importance of technology in product manufacturing. It has been proved that the utilization of high-end technologies has speeded up the manufacturing process and guaranteed QS-R IP67 Water Proof 5 -10 Ton Truck Railway Blending Weight Sensor Half Bridge Load Cell For Digital Scale performance.At present, the product is commonly used in the field(s) of Force Sensors & Load Cells.

Specification :  5T, 10T

shipping: Support Sea freight · Land freight<

Customization: Customized logo (Min. Order: 100 Pieces),Customized packaging (Min. Order: 500 Pieces),Graphic customization (Min. Order: 500 Pieces)
