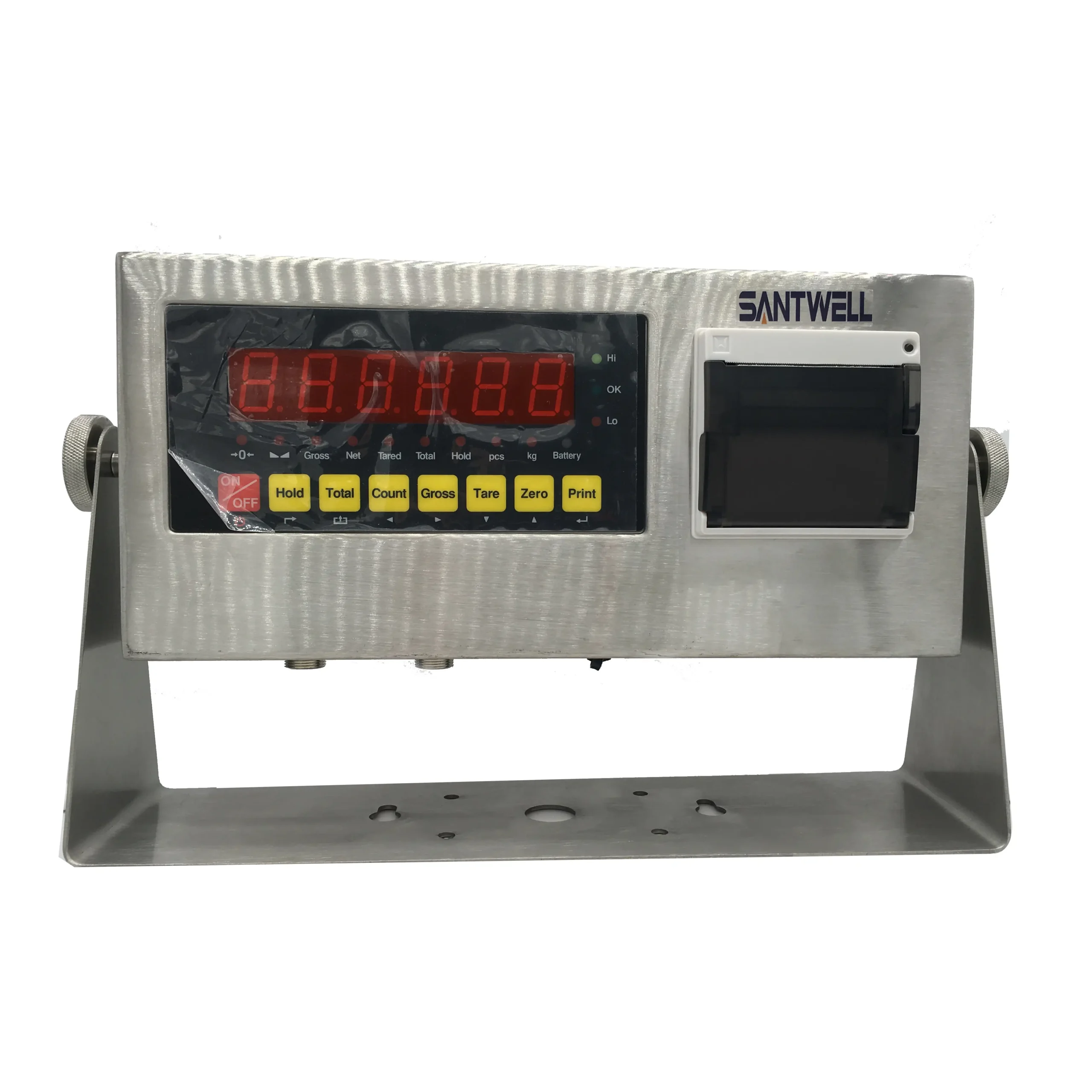

The application of technology could play an important role in deciding the physical and chemical performance of LP7512 Sell Well New Type Lcd Display Precision Load Cell Weighing Indicator Printer.In the fields such as Weighing Scales, the product is widely used and has a broad range of potential applications.
Rated Load : >300kg
Accuracy : 30000D
Type : weighing indicator
Shipping: Support Sea freight · Land freight
Options
Second display interface: serial RS232
Communication interface: RS232/RS485, baud rate 600~9,600(optional)
Printing interface: shared with serial interface, can be connected to serial printer(optional built-in/desktop/thermal printer)
Relay output: 4 solid state relays(optional: sound and light alarm)
Analog output: 4-20mA
Extensible interface: MODBUS-RTU/TCP, Profibus-dp, USB, Ethernet,RF wireless module
Application for
High precision bench scale, floor scale, waterproof bench scale, hopper scale, pet scale, load cells, etc
Specifications
Display 6-digit 20mm LED or 25mm LCD with backlight
Accuracy class OIML III
AD convert ∑-Δ, 24bit
Input voltage -5mV ~ 20mV
Resolution display 50000, internal code 2000000
Minimum resolution 1μV/e
Excitation voltage DC5V
Load cell interface 4-wire(optional:6-wire)
Drive capability 1-6 350Ω analog load cell(s)
Power supply AC110/220V 50/60Hz DC9V or built-in 6V/4Ah lead acid battery
Work environment -10ºC ~ +40ºC, ≤85%RH
Battery enduring life 30 hours for continuously use(with 4 350Ω analog load cells)
Weighing:>300kg
Display Type:LED Display
Digits:6 digits
Measure Method:Automatic
Shell Material:Stainless Steel
Model NO. LP7510 Customized Customized
Certification CE,OIML Transport Package Carton
Options
Second display interface: serial RS232
Communication interface: RS232/RS485, baud rate 600~9,600(optional)
Printing interface: shared with serial interface, can be connected to serial printer(optional built-in/desktop/thermal printer)
Relay output: 4 solid state relays(optional: sound and light alarm)
Analog output: 4-20mA
Extensible interface: MODBUS-RTU/TCP, Profibus-dp, USB, Ethernet,RF wireless module
Application for
High precision bench scale, floor scale, waterproof bench scale, hopper scale, pet scale, load cells, etc
Specifications
Display 6-digit 20mm LED or 25mm LCD with backlight
Accuracy class OIML III
AD convert ∑-Δ, 24bit
Input voltage -5mV ~ 20mV
Resolution display 50000, internal code 2000000
Minimum resolution 1μV/e
Excitation voltage DC5V
Load cell interface 4-wire(optional:6-wire)
Drive capability 1-6 350Ω analog load cell(s)
Power supply AC110/220V 50/60Hz DC9V or built-in 6V/4Ah lead acid battery
Work environment -10ºC ~ +40ºC, ≤85%RH
Battery enduring life 30 hours for continuously use(with 4 350Ω analog load cells)
Weighing:>300kg
Display Type:LED Display
Digits:6 digits
Measure Method:Automatic
Shell Material:Stainless Steel
Model NO. LP7510 Customized Customized
Certification CE,OIML Transport Package Carton
