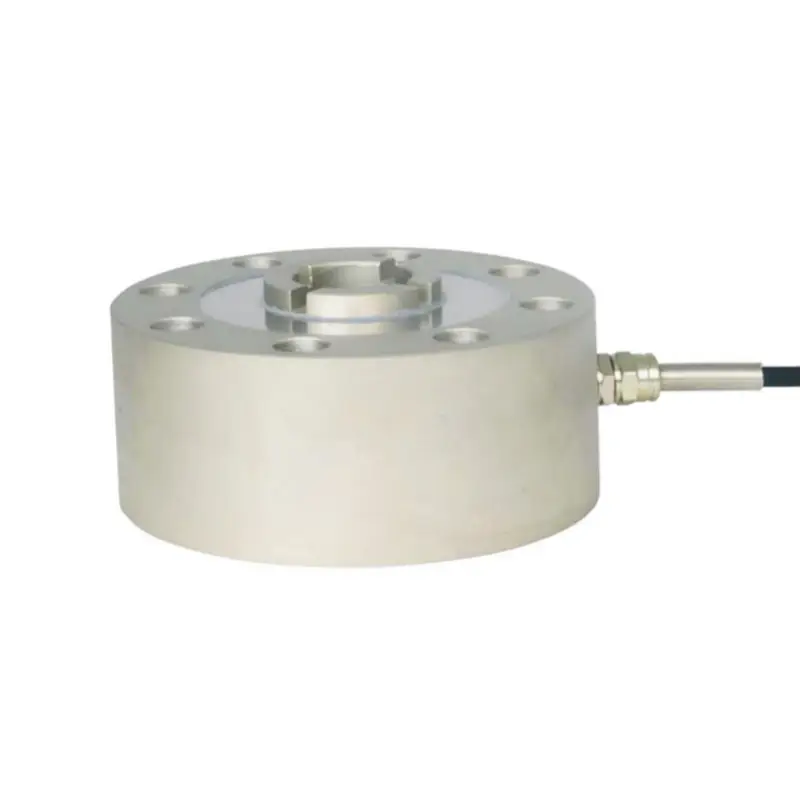

Measurement Equipment spoke load cell Pancake Tension 100 Ton load cell LFM with good performance and reliable quality are created by conforming to the development trend of the industry, integrating internal superior resources, and adopting the industry’s cutting-edge manufacturing technology and production process.Therefore,It has been proved that the product can be applied to Force Sensors & Load Cells.
Shipping: Support Sea freight · Land freight
Customization: Customized logo (Min. Order: 100 Pieces),Customized packaging (Min. Order: 300 Pieces),Graphic customization (Min. Order: 100 Pieces)
Technical Parameter
|
Rated Load
|
T
|
100
|
|
Sensitivity
|
mV/V
|
2.0000±0.002
|
|
Total Error
|
%F.S
|
±0.05
|
|
Creep(30minutes)
|
%F.S
|
±0.02
|
|
Recommended Excitation Voltage
|
V
|
5 ~18(AC or DC)
|
|
Maximum Excitation Voltage
|
V
|
24 (AC or DC)
|
|
Zero Balance
|
%F.S
|
±1
|
|
Input Impedance
|
Ω
|
775±10
|
|
Output Impedance
|
Ω
|
700±5
|
|
Insulation Impedance
|
MΩ
|
≥5000
|
|
Safe Overload
|
%F.S
|
150
|
|
Ultimate Overload
|
%F.S
|
200
|
|
Operating Temperature Range
|
℃
|
(-30~+70)
|
|
Compensated Temperature Range
|
℃
|
(-20~+60)
|
|
Temperature Effect On Load
|
℃
|
±0.02%F.S/10
|
|
Temperature Effect On Zero
|
℃
|
±0.02%F.S/10
|
|
Construction
|
|
Alloy steel
|
|
Protection Class
|
|
IP67&IP68
|
|
Citation
|
|
GB/T7551-2008/OIML R60
|
|

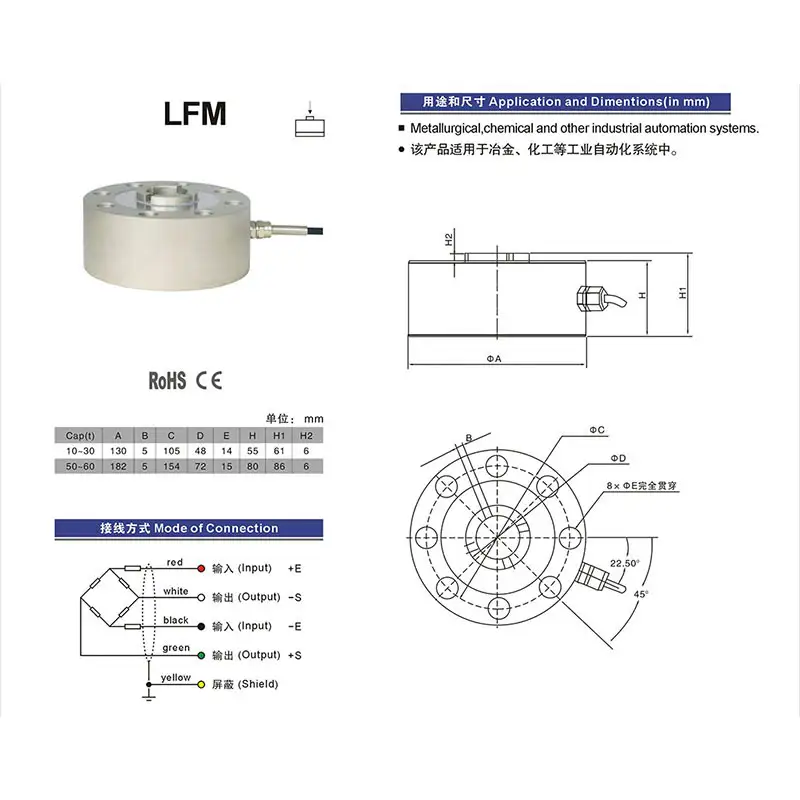

Mode of Connection
|
|
Input+E:Red
Input-E:Black
Output+S:Green
Output-S:White
|
