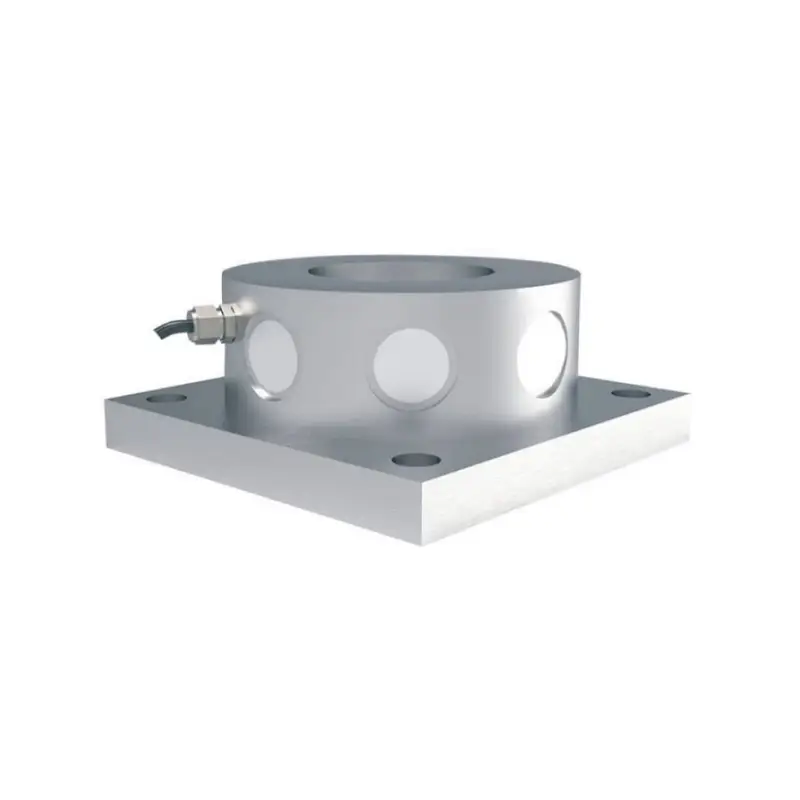

Advanced technology is adopted to produce high-quality Chinese Original Square Base Installation Weighting load cell Tention load cell LFN .And the size and style of it can be tailored to fit the needs of diverse customers.In its production, we exclusively use material which passed all quality inspections.
Shipping: Support Sea freight · Land freight
Customization: Customized logo (Min. Order: 100 Pieces),Customized packaging (Min. Order: 300 Pieces),Graphic customization (Min. Order: 100 Pieces)
|
Rated Load
|
T
|
0.5/1/2/3/5/10/30/40/50/60
|
|
Sensitivity
|
mV/V
|
2.0000±0.002
|
|
Total Error
|
%F.S
|
±0.02
|
|
Creep(30minutes)
|
%F.S
|
±0.02
|
|
Recommended Excitation Voltage
|
V
|
5 ~18 (AC or DC)
|
|
Maximum Excitation Voltage
|
V
|
24 (AC or DC)
|
|
Zero Balance
|
%F.S
|
±1
|
|
Input Impedance
|
Ω
|
775±10
|
|
Output Impedance
|
Ω
|
700±5
|
|
Insulation Impedance
|
MΩ
|
≥5000
|
|
Safe Overload
|
%F.S
|
150
|
|
Ultimate Overload
|
%F.S
|
200
|
|
Operating Temperature Range
|
℃
|
(-30~+70)
|
|
Compensated Temperature Range
|
℃
|
(-20~+60)
|
|
Temperature Effect On Load
|
℃
|
±0.02%F.S/10
|
|
Temperature Effect On Zero
|
℃
|
±0.02%F.S/10
|
|
Construction
|
|
Alloy steel
|
|
Protection Class
|
|
IP67&IP68
|
|
Citation
|
|
GB/T7551-2008/OIML R60
|
|

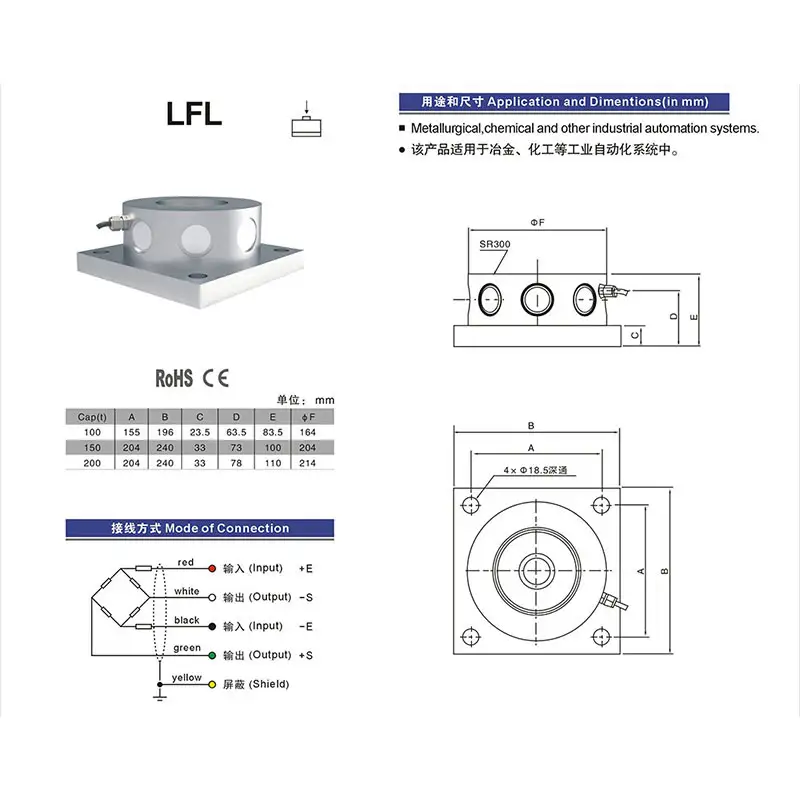

Mode of Connection
|
|
Input+E:Red
Input-E:Black
Output+S:Green
Output-S:White
|
