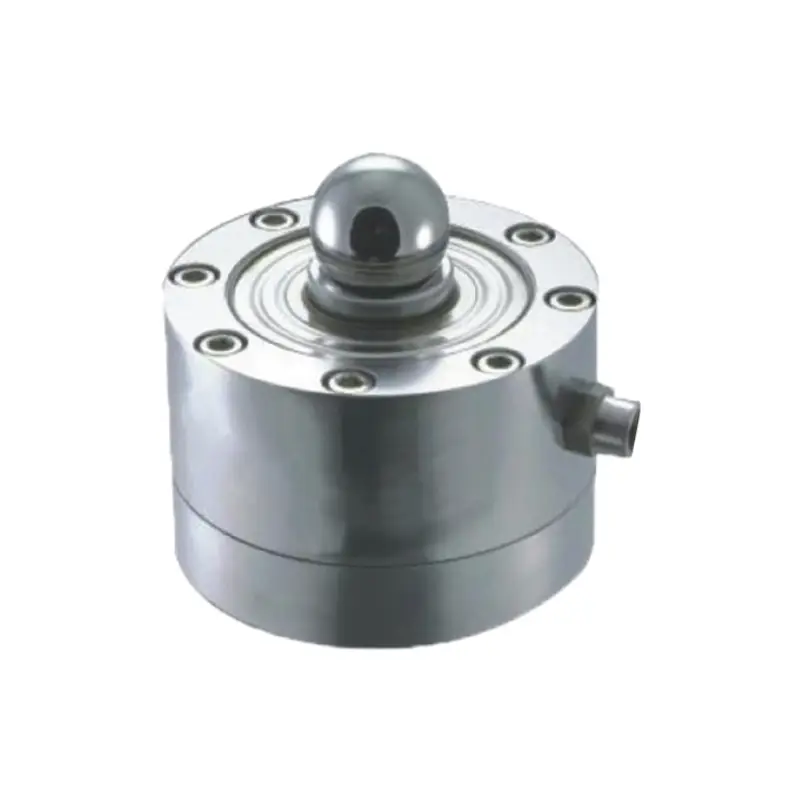

High Quality Wheel Shape Pressure Transducer spoke load cell Force weight sensors load cell LFF selected high-quality materials, using advanced manufacturing technology and exquisite processing craftsmanship, reliable performance, high quality, excellent quality, enjoy a good reputation and popularity in the industry.What’s more customized product is also offered to meet specific requirements of customers.
Shipping: Support Sea freight · Land freight
|
Rated Load
|
T
|
50
|
|
Sensitivity
|
mV/V
|
2.0000±0.002
|
|
Total Error
|
%F.S
|
±0.3
|
|
Creep(30minutes)
|
%F.S
|
±0.02
|
|
Recommended Excitation Voltage
|
V
|
5 ~18 (AC or DC)
|
|
Maximum Excitation Voltage
|
V
|
24 (AC or DC)
|
|
Zero Balance
|
%F.S
|
±1
|
|
Input Impedance
|
Ω
|
1500±20
|
|
Output Impedance
|
Ω
|
1400±20
|
|
Insulation Impedance
|
MΩ
|
≥5000
|
|
Safe Overload
|
%F.S
|
150
|
|
Ultimate Overload
|
%F.S
|
200
|
|
Operating Temperature Range
|
℃
|
(-30~+70)
|
|
Compensated Temperature Range
|
℃
|
(-20~+60)
|
|
Temperature Effect On Load
|
℃
|
±0.02%F.S/10
|
|
Temperature Effect On Zero
|
℃
|
±0.02%F.S/10
|
|
Construction
|
|
Alloy steel
|
|
Protection Class
|
|
IP67&ip68
|
|
Citation
|
|
GB/T7551-2008/OIML R60
|
|

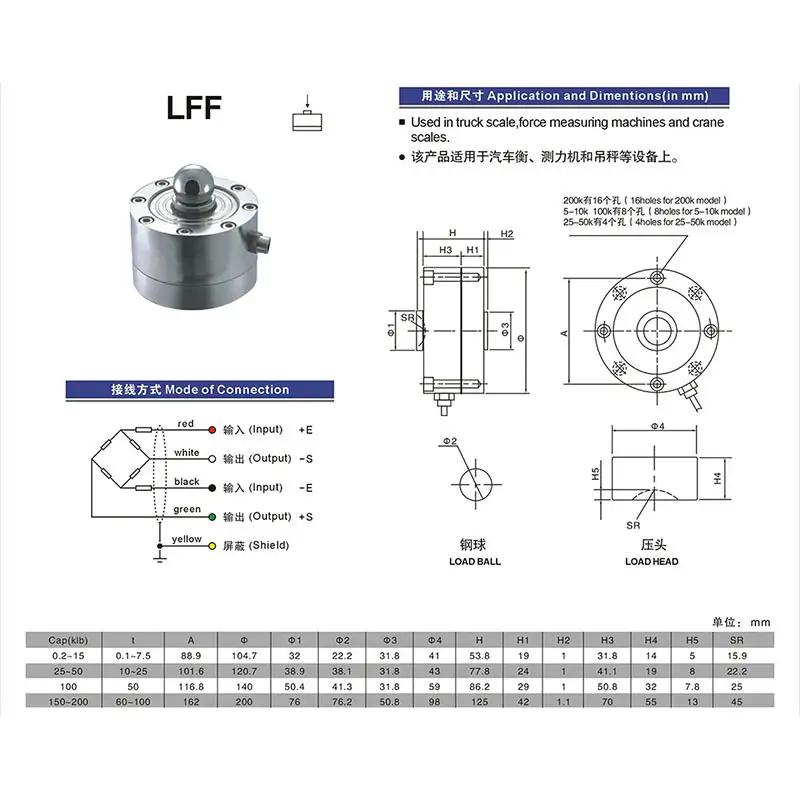

Mode of Connection
|
|
Input+E:Red
Input-E:Black
Output+S:Green
Output-S:White
|
