Santwell / LFD 2.0 mv/v / 스포크형 로드셀

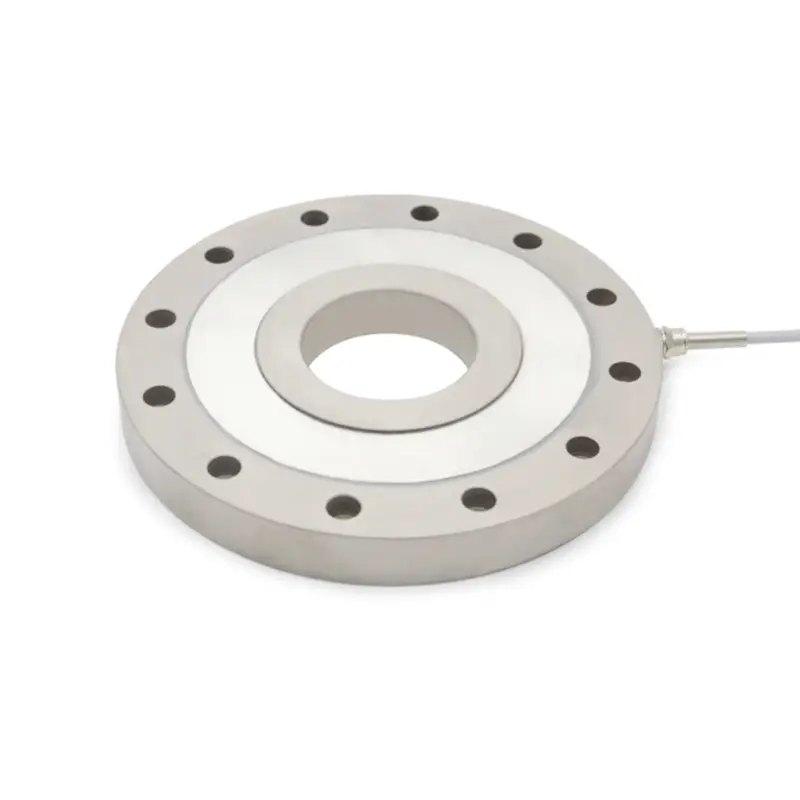

Ningbo Santwell Import & Export Co., Ltd boasts strong R&D capabilities and has been working on product development for years. 2.0 mv/v Alloy Steel spoke load cell Pancake Type Compression Tensile load cell LFF is our newly-developed product and goes on sale starting now. The product is endowed with stable and multi-functional performance. It is mainly used in the application field(s) of Force Sensors & Load Cells. Ningbo Santwell Import & Export Co., Ltd are determined that we will invest more in the improvement of R&D strength and gather more talents in the industry, both of which can make great contributions to the long-term development of our company.

Model Number: LFF Place of Origin: Zhejiang, China
Brand Name: Santwell Usage: PRESSURE SENSOR
Theory: Resistance Sensor Output: Analog SENSOR
Description: shear beam load cell Rated Load: 50t
Sensitivity: 2.0000±0.002mv/v Total Error: ±0.3%F.S
Creep(30 minutes): ±0.02%F.S Recommended Excitation Voltage: 5V-18V(AC or DC)
Maximum Excitation Voltage: 24V(AC or DC) Zero Balance: ±1%F.S
Insulation Impedance: ≥5000MΩ Safe Overload: ±150%F.S
UItimate Overload: ±200%F.S Application: batching scales



Add to Wishlist
Share it:

2.0 mv/v Alloy Steel spoke load cell Pancake Type Compression Tensile load cell LFF can improve the company’s competitiveness and help the company gain a firm foothold in today’s highly competitive environment and develop steadily and at a high speed.We adopt a variety of technologies in the production.The product has obtained unanimous favorable comments from market.

Shipping: Support Sea freight · Land freight

Customization: Customized logo (Min. Order: 100 Pieces),Customized packaging (Min. Order: 300 Pieces),Graphic customization (Min. Order: 100 Pieces)



Technical Parameter

Rated Load
T
50
Sensitivity
mV/V
2.0000±0.002
Total Error
%F.S
±0.3
Creep(30minutes)
%F.S
±0.02
Recommended Excitation Voltage
V
5 ~18 (AC or DC)
Maximum Excitation Voltage
V
24 (AC or DC)
Zero Balance
%F.S
±1
Input Impedance
Ω
1500±20
Output Impedance
Ω
1400±20
Insulation Impedance
MΩ
≥5000
Safe Overload
%F.S
150
Ultimate Overload
%F.S
200
Operating Temperature Range
℃
(-30~+70)
Compensated Temperature Range
℃
(-20~+60)
Temperature Effect On Load
℃
±0.02%F.S/10
Temperature Effect On Zero
℃
±0.02%F.S/10
Construction
Alloy steel
Protection Class
IP67&ip68
Citation
GB/T7551-2008/OIML R60

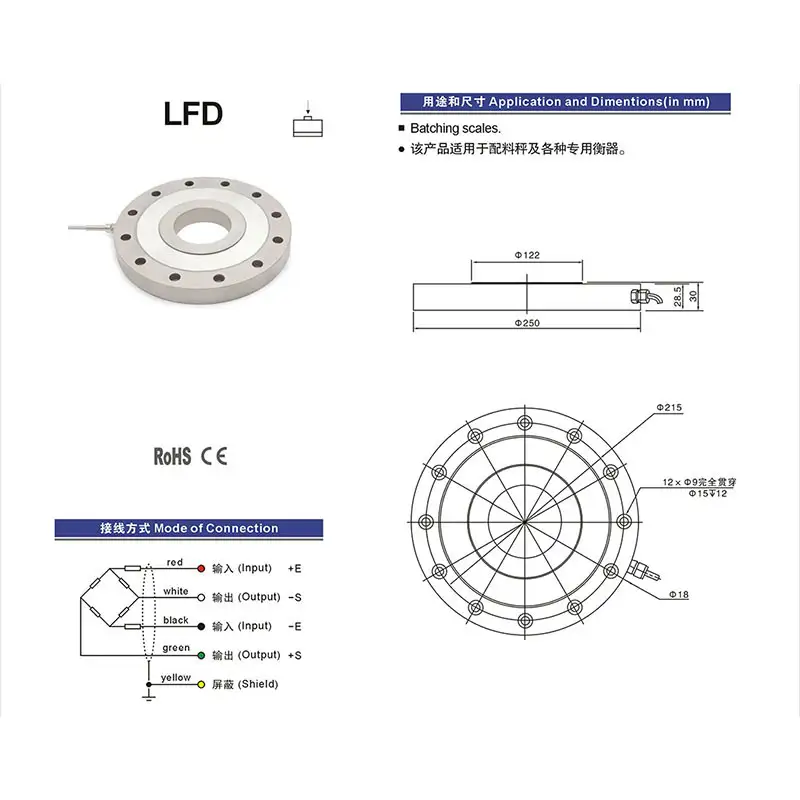

Mode of Connection
Input+E:Red
Input-E:Black
Output+S:Green
Output-S:White
