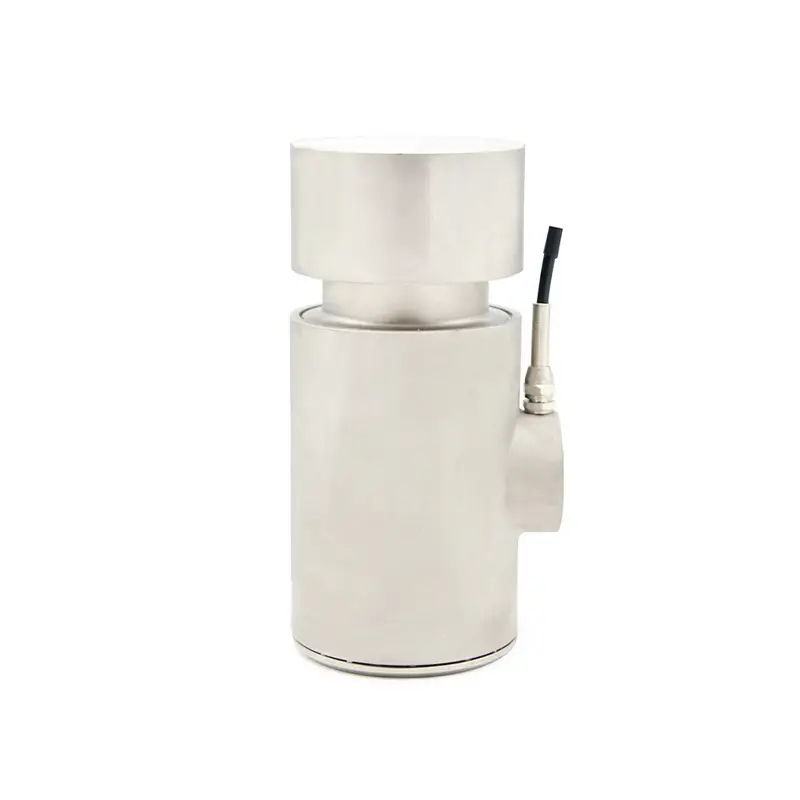

Santwell / CMT-1 / 방수·밀폐형 캐니스터·컬럼형 로드셀

Ningbo Santwell Import & Export Co., Ltd actively absorb the advanced manufacturing technology and production technology of excellent domestic and foreign companies, and successfully develop IP67&IP68 hermetically sealed structure column/canister type load cell 30~300ton CMT-1 using new technology and new technology. The accumulated rich experience and strong technological innovation capabilities have kept Ningbo Santwell Import & Export Co., Ltd at the forefront of the market, and IP67&IP68 hermetically sealed structure column/canister type load cell 30~300ton CMT-1 developed have perfectly solved the pain points of the industry and the market. Santwell has been dedicated to the design, R&D, manufacturing, and updates of Load cells, Subminiature force transducers, miniature load cells, Intelligent load cells. We fully hope that we can satisfy customers from different fields, countries, and regions by offering them high-quality products and professional service. If you have any questions or problems, please contact us at any time through the contact information listed on our website.

Model Number: CMT-1 Type: Load Cell
Place of Origin: Zhejiang, China Brand Name: santwell
Rated Load: 30t~300t Sensitivity: 2.000070.002mV/V
Total Error: ±0.02%F.S Creep(30minutes): ±0.02%F.S
Recommended Excitation Voltage: 5V~18V(AC or DC) Maximum Excitation Voltage: 24V(AC or DC)
Zero Balance: ±1%F.S Insulation Impedance: ≥5000MΩ
Safe Overload: 150%F.S Utimate Overload: 200%F.S









Add to Wishlist
Share it:

Our employees who engage in the technical analysis have successfully upgraded technologies mainly to manufacture IP67&IP68 hermetically sealed structure column/canister type load cell 30~300ton CMT-1 in a more efficient way.It has applications in a wide range of fields, such as Force Sensors & Load Cells.

shipping: Support Sea freight · Land freight

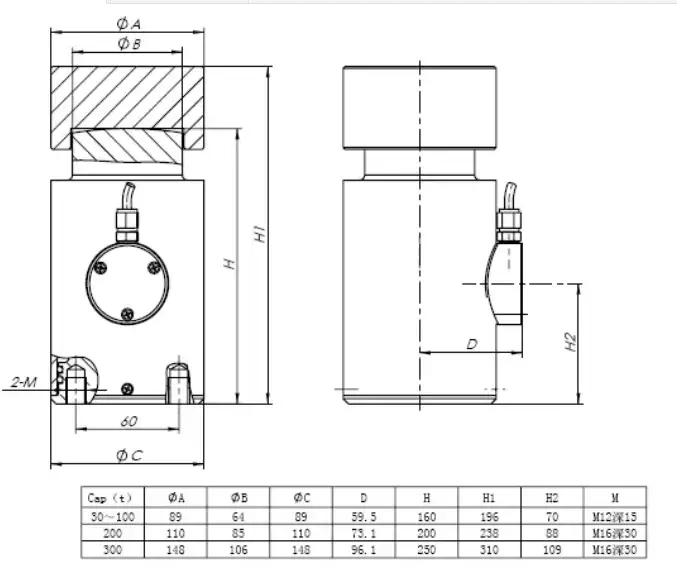

Technical Parameter

Rated Load 30t-300t
Sensitivity 2.0000±0.001mV/V
Total Error ±0.02%F.S
Creep(30minutes) ±0.02%F.S
Recommended Excitation Voltage 5V~18V(AC or DC)
Maximum Excitation Voltage 24V(AC or DC)
Zero Balance ±1%F.S
Input Impedance 775±10Ω
Output Impedance 700±5Ω
Insulation Impedance ≥5000MΩ
Safe Overload 150%F.S
Ultimate Overload 200%F.S
Operating Temperature Range (-30~+70)℃
Compensated Temperature Range (-20~+60)℃
Temperature Effect On Load ±0.02%F.S/10℃
Temperature Effect On Zero ±0.02%F.S/10℃
Construction Alloy Steel
Protection Class IP67&IP68
Citation GB/T7551-2008/OIML R60
Mode of Connection Input+:Red Input-:Black Output+:Green Output-:White
