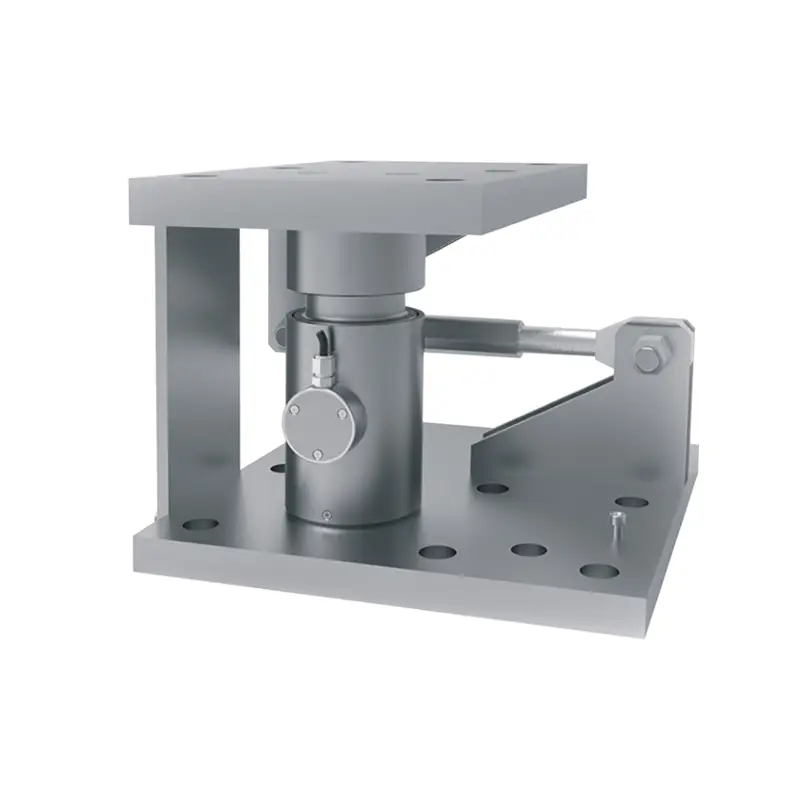

Santwell / CMC-(M) / 캐니스터형 모듈 로드셀

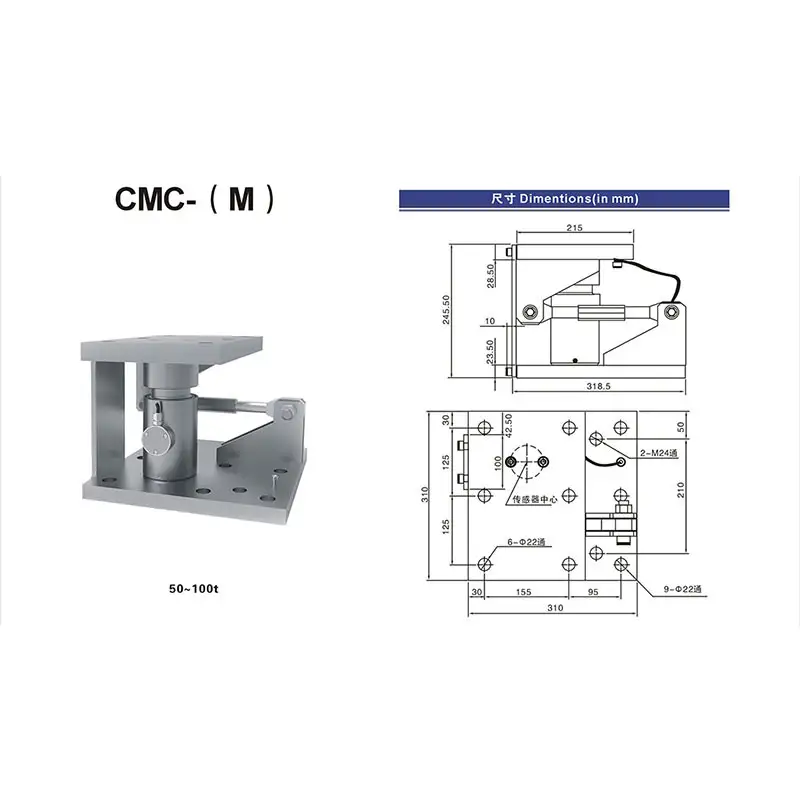

Model Number: CMC-(M) Place of Origin: Zhejiang, China
Brand Name: SANTWELL Usage: PRESSURE SENSOR
Theory: Resistance Sensor Output: Analog SENSOR
Rated Load: 10-40t Sensitivity: 2.0000±0.002mV/V
Total Error: ±0.02%F.S Creep(30minutes): ±0.02%F.S
Recommended Excitation Voltage: 5V~18V(AC or DC) Maximum Excitation Voltage: 24V(AC or DC)
Zero Balance: ±1%F.S Insulation Impedance: ≥5000MΩ
Safe Overload: 150%F.S Utimate Overload: 200%F.S

Share it:

Weighing Scale Module 10 ton load cell 20 ton 30 ton load cell 40 ton Wireless Weighing Module CMC-(M) are well-crafted, beautiful in appearance, and have both excellent performance and excellent quality. Once they are on the market, they have quickly been loved and sought after by the majority of customers.

Shipping: Support Sea freight · Land freight

Customization: Customized logo (Min. Order: 100 Pieces),Customized packaging (Min. Order: 300 Pieces),Graphic customization (Min. Order: 100 Pieces)
