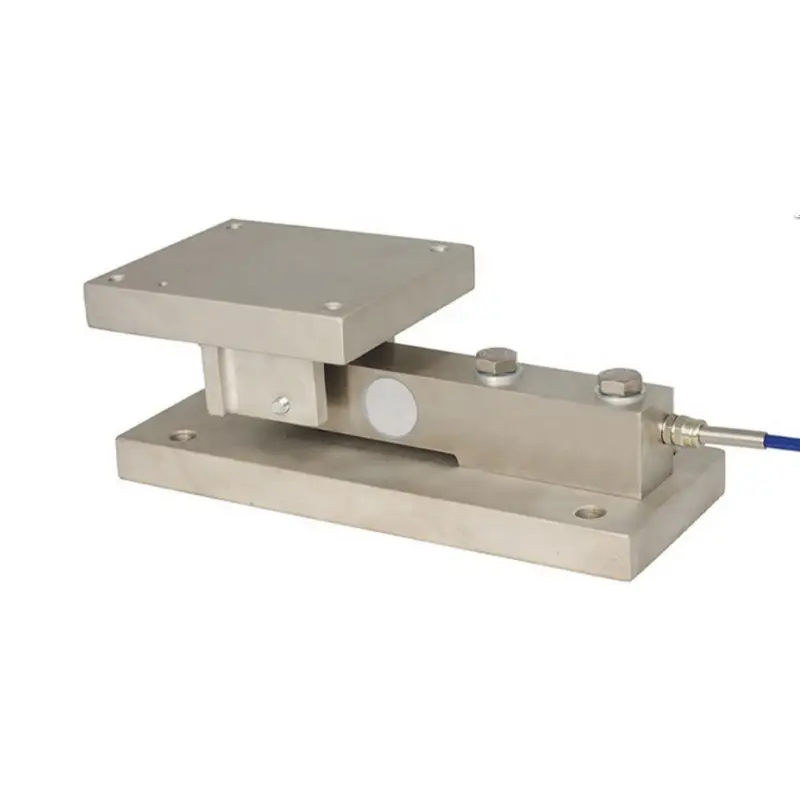

If you’re looking for SB-(M)-D 0.5T Dynamic Load Cell Simulator 500kg Weighing Pad with Gsm Module 20 ton Load Cell for Tank Silo Weighing distributors and suppliers, Santwell features product suppliers and wholesalers for you. Each Force Sensors & Load Cells goes through quality control to ensure they are ready for sale. So you can buy it in large quantitiy.
Shipping: Support Sea freight · Land freight
Customization: Customized logo (Min. Order: 100 Pieces),Customized packaging (Min. Order: 100 Pieces),Graphic customization (Min. Order: 100 Pieces)
Technical Parameter
|
Rated Load
|
0.5~20t
|
|
Sensitivity
|
2.0000±0.002mV/V
|
|
Total Error
|
±0.2%F.S
|
|
Creep(30minutes)
|
±0.2%F.S
|
|
Recommended Excitation Voltage
|
5V~18V(AC or DC)
|
|
Maximum Excitation Voltage
|
24V(AC or DC)
|
|
Zero Balance
|
±1%F.S
|
|
Input Impedance
|
380±10Ω
|
|
Output Impedance
|
350±5Ω
|
|
Insulation Impedance
|
≥5000MΩ
|
|
Safe Overload
|
150%F.S
|
|
Ultimate Overload
|
200%F.S
|
|
Operating Temperature Range
|
(-30~+70)℃
|
|
Compensated Temperature Range
|
(-20~+60)℃
|
|
Temperature Effect On Load
|
±0.02%F.S/10℃
|
|
Temperature Effect On Zero
|
±0.02%F.S/10℃
|
|
Construction
|
Alloy Steel/Aluminum
|
|
Protection Class
|
IP67&IP68
|
|
Citation
|
GB/T7551-2008/OIML R60
|
|
Mode of Connection
|
Input+E:Red
Input-E:Black
Output+S:Green
Output-S:White
|
