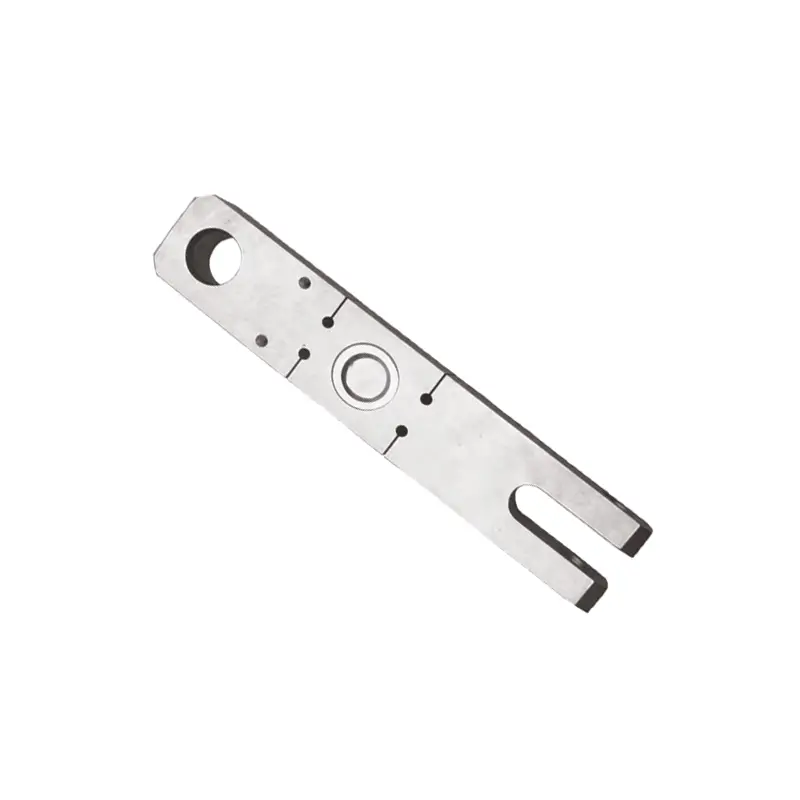

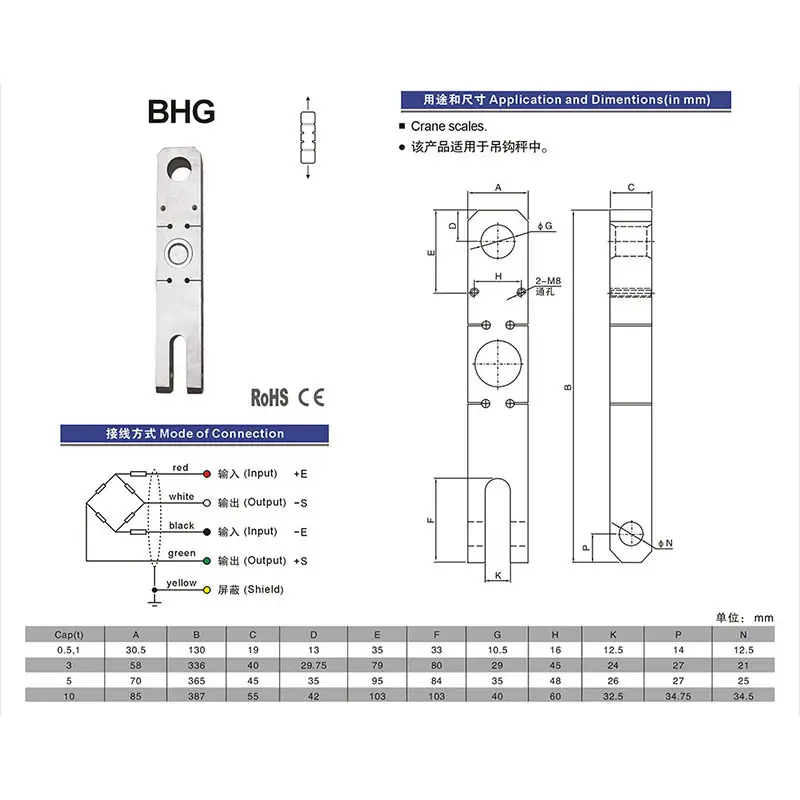

Santwell / BHG / 인장형 로드셀

Model Number: BHG Place of Origin: Zhejiang, China
Brand Name: Santwell Usage: PRESSURE SENSOR
Theory: Resistance Sensor Output: Analog SENSOR
Rated Load: 3t,5t,10t Sensitivity: 2.0000±0.002mV/V
Total Error: ±0.3%F.S Creep(30minutes): ±0.02%F.S
Recommended Excitation Voltage: 5V~12V(AC or DC) Maximum Excitation Voltage: 15V(AC or DC)
Zero Balance: ±1%F.S Insulation Impedance: ≥5000MΩ
Safe Overload: 150%F.S Ultimate Overload: 200%F.S
Add to Wishlist
Share it:

Driven by the competitive market, we have improved our technologies and been skilled at utilizing technology to manufacture the product. It has been proved that the product can be used in the application field(s) of Force Sensors & Load Cells and has an extensive application prospect.

Shipping: Support Sea freight · Land freight

Customization: Customized logo (Min. Order: 100 Pieces),Customized packaging (Min. Order: 100 Pieces),Graphic customization (Min. Order: 100 Pieces)
