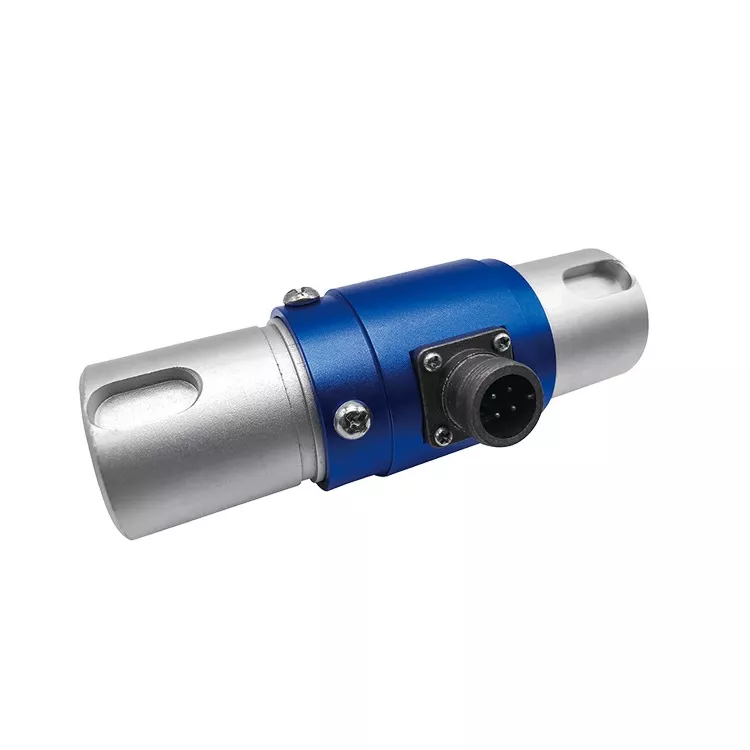

LCT319 Torque Industrial Automation Sensors Reaction Static And Rotary Torque Static Torque Sensor

Product Description




Product introduction:

◎Material: alloy steel or aluminum alloy;

◎Measuring range: 0-5000nm;

◎Accuracy: 0.1 / 0.3% FS;

◎Resistance strain is an integrated product composed of sensitive elements and integrated circuits;

◎High precision, stable and reliable performance and wide measurement range;

◎Both ends are keyed for easy installation and use;

◎Suitable for static torque measurement;

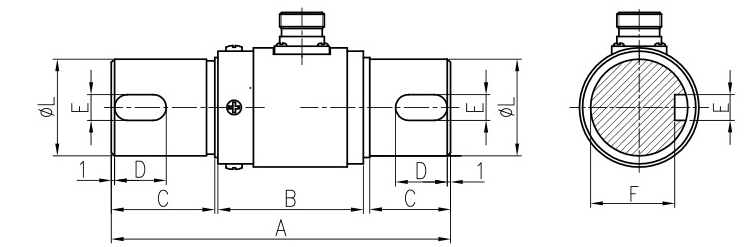

Dimension:


量程(Nm) A φL B C D E F
0-100 105 30 45 25 16 8 26
150-1000 210 50 60 73.5 60 16 44
1500-5000 238 70 84 75.5 70 20 62.5

Technical Parameter：

Parameter Numerical Value Parameter Numerical Value
Cap. 0~5000Nm Zero temp. drift 0.03%FS/10℃
Response frequency 100μS Input resistance 350,750±10Ω
Material 0~30Nmaluminium alloy,

40~5000NmAlloy steel

 Output resistance 350,700±5Ω
Insulation resistance ≥5000MΩ/100VDC
Output sensitivity 1.0~1.5mV/V Service voltage 10V
Zero output ±1%FS Maximum voltage 12V
Nonlinear ±0.1,±0.3%FS Temp. compensation range -10~+60℃
Lagging ≤±0.05%FS Working temp. -20~+65℃
Repeatability ≤±0.05%FS Safe Overload 150%
Creep (30 minutes) ≤±0.03%FS Ultimate overload 200%
Sensitivity temp. drift 0.03%FS/10℃ Cable size Φ5.2×3m




Product name
Brand SAINTBOND
Market All over the world
Features High precision and stable performance
Advantage 0EM/ODM
Sample Lead Time 5~ 40Days
Sample price The price is different according to product capacity
Custom Design Welcome
Form of sale Factory supply
